Injection-Molded Brackets with Threaded Inserts
Bring the mounting geometry, threaded interfaces and acceptance plan into one quotation for a custom plastic bracket.
Share your CAD, mating-part drawings and insert specification. Material, tooling, inspection and production scope are confirmed for the project.
Product details
Bracket details, from every angle

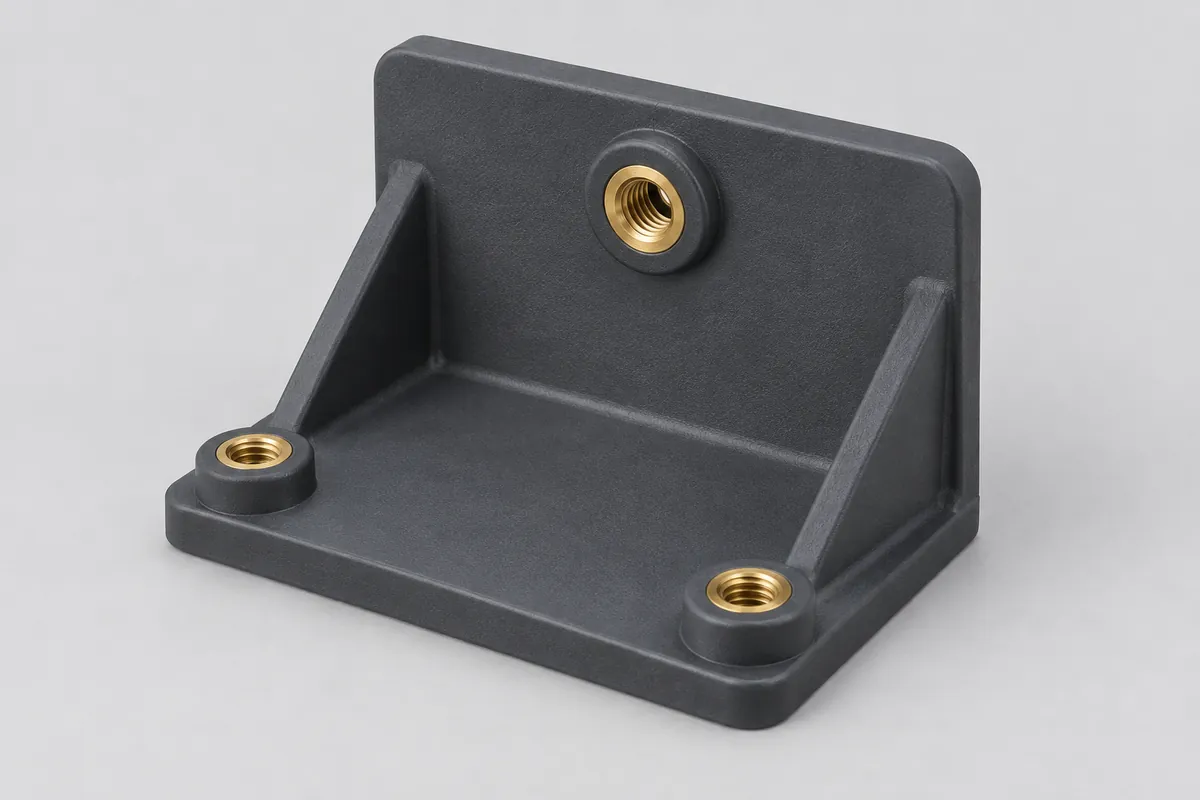

Explore the mounting body, threaded interfaces, support ribs and mating-plate connection.
Bracket geometry

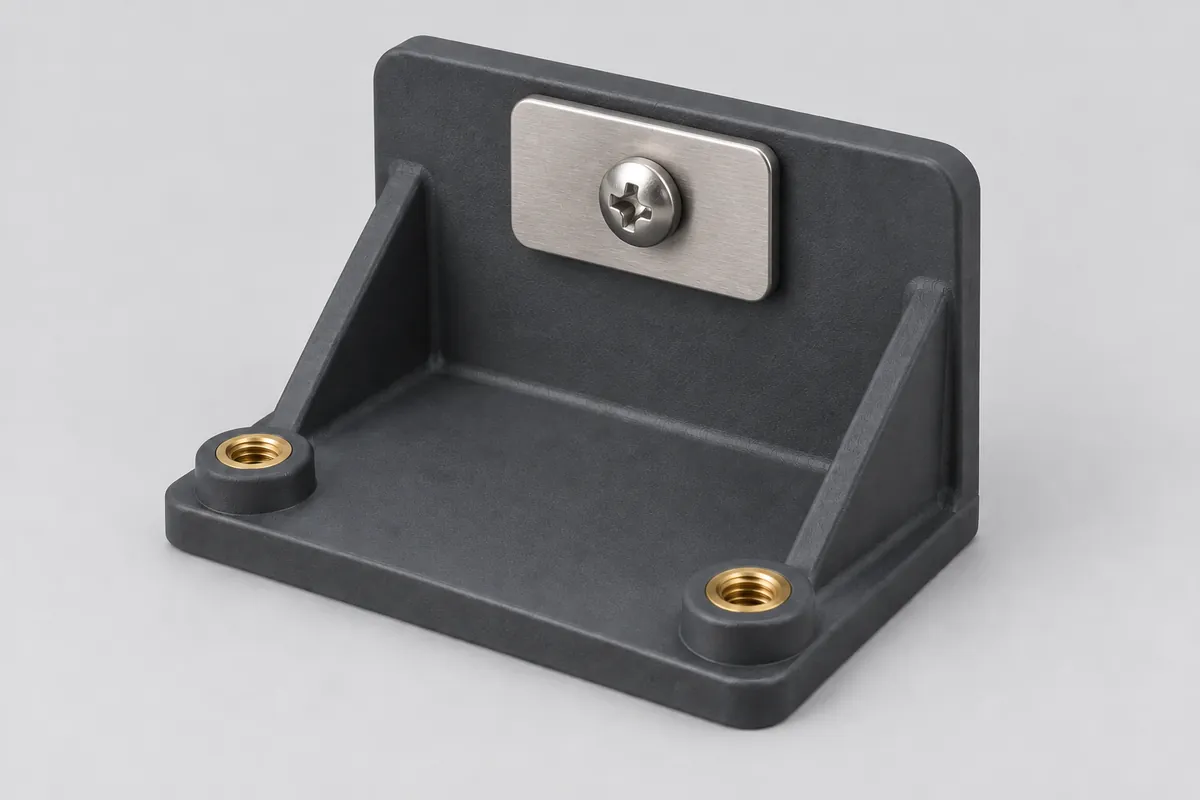

The molded body, support ribs and threaded interfaces bring the mounting features together.
Rear mounting envelope

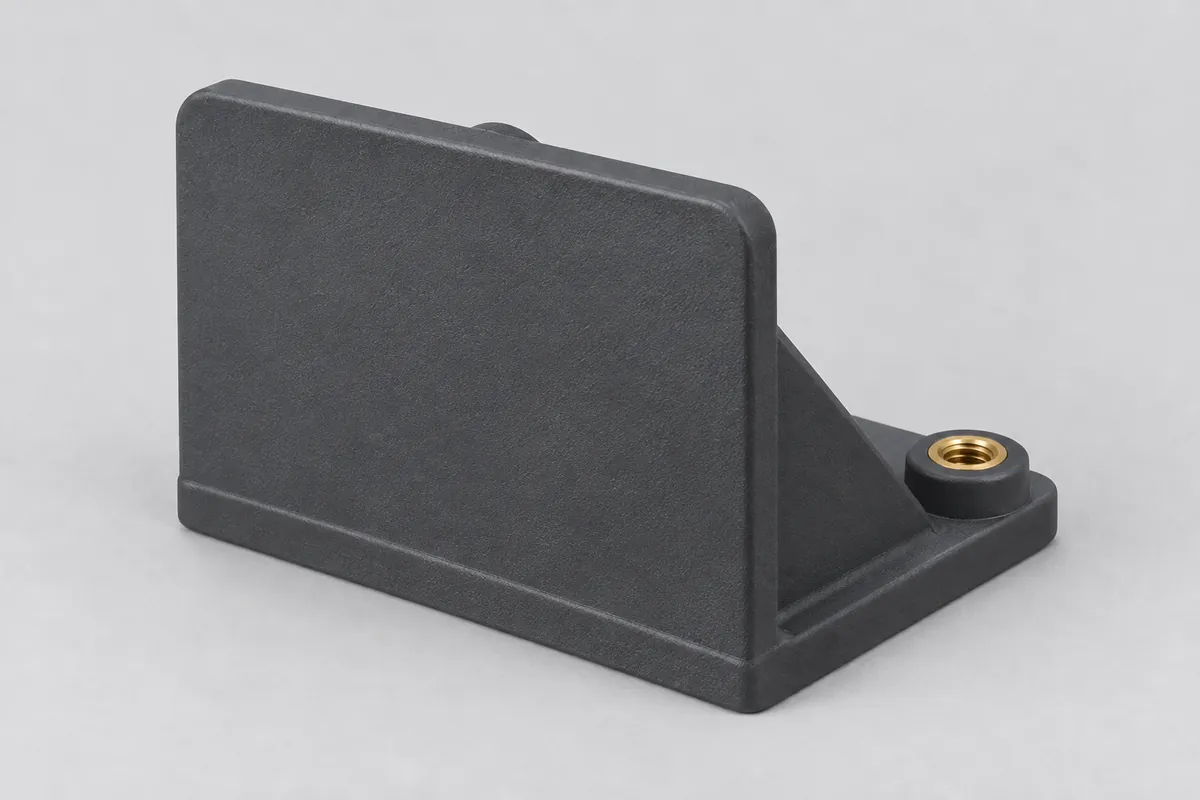

Review the rear envelope, seating surfaces and assembly clearance.
Threaded insert detail

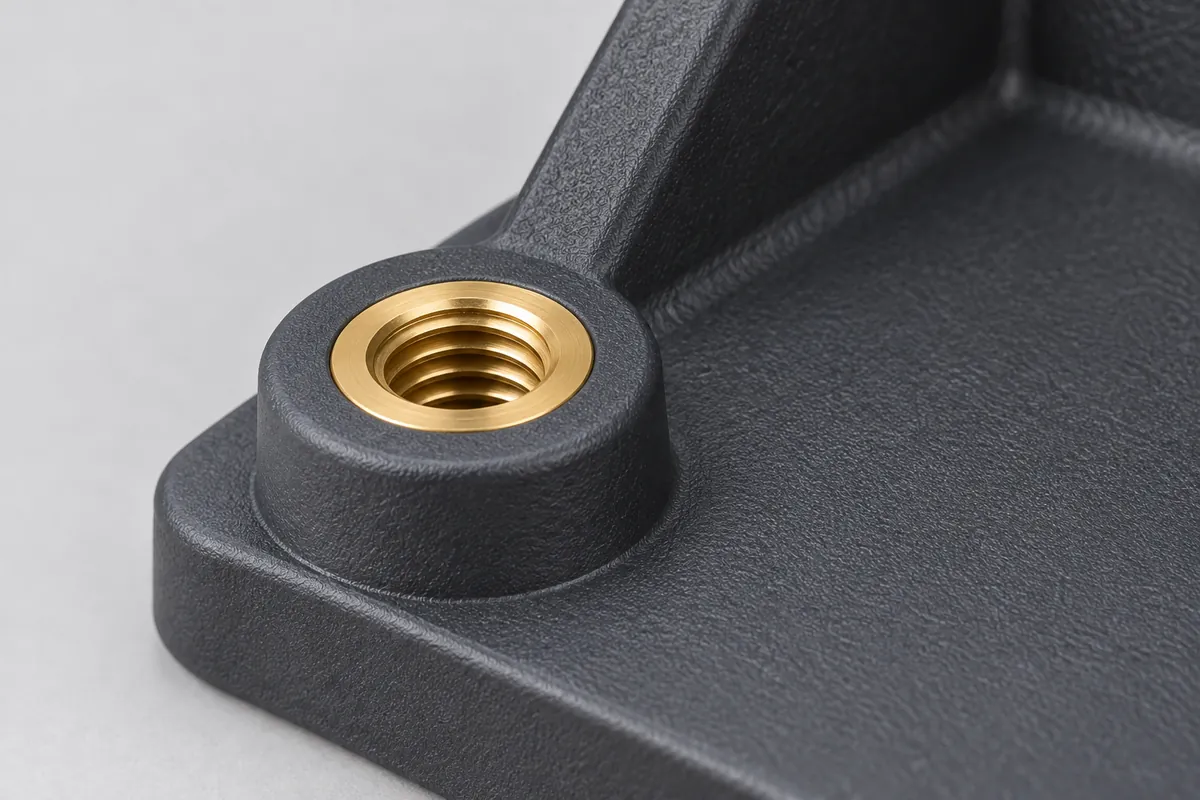

The insert opening and surrounding plastic boss are reviewed against your hardware specification.
Reinforcing ribs

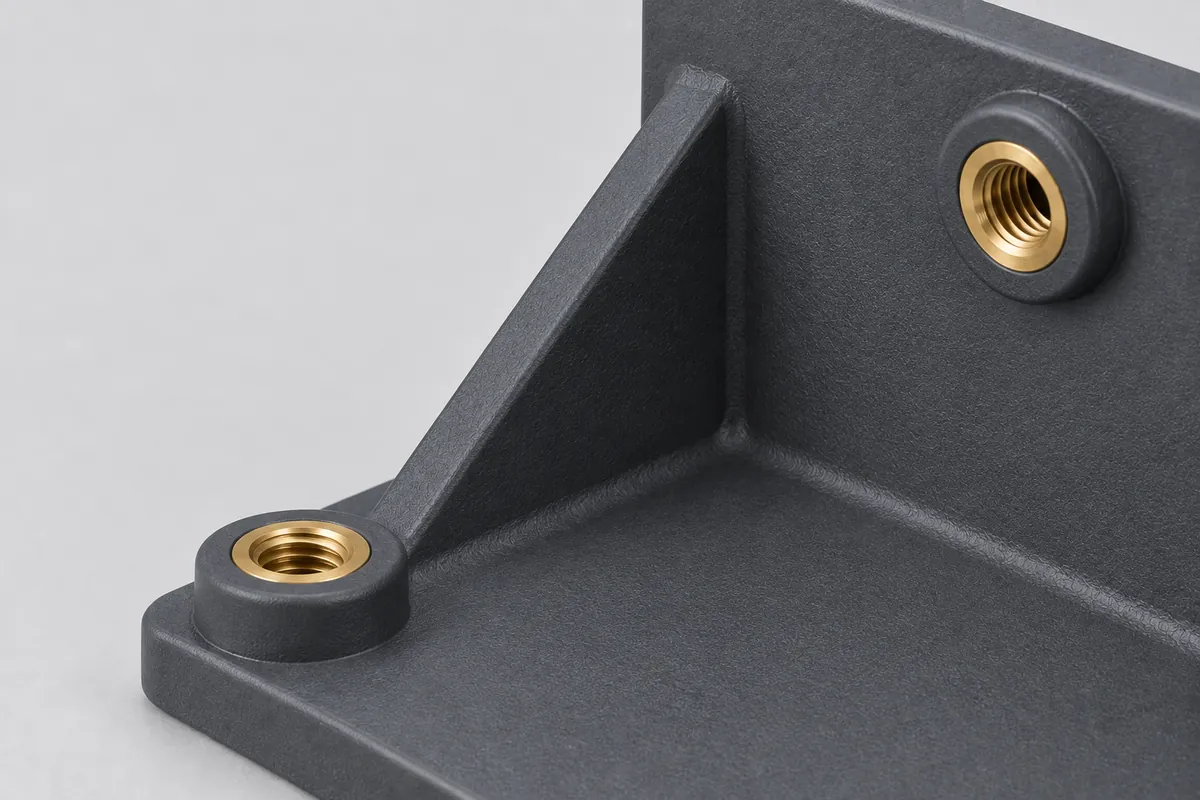

Inspect the rib layout and wall junctions as part of the manufacturing review.

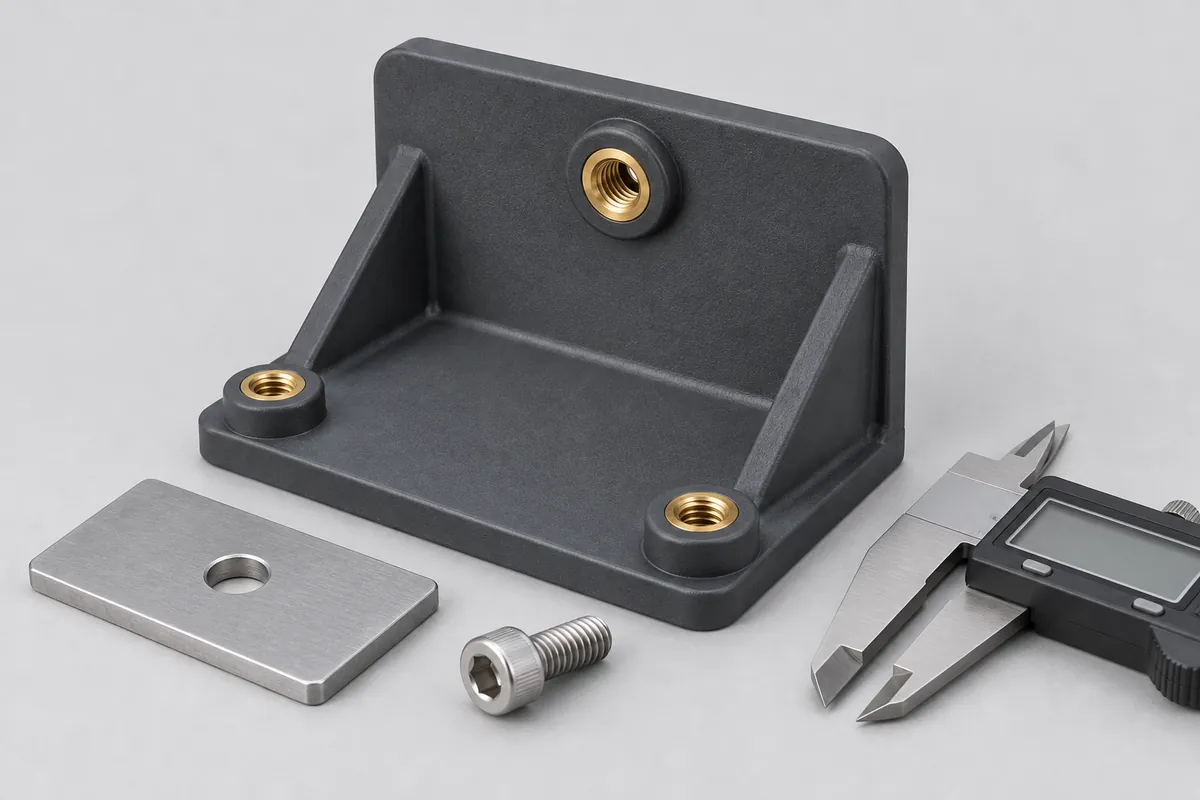

Fastening interface
Review the mating plate, screw access and seating surfaces together with the threaded connection.
Illustrative configurations. Final specifications follow your approved drawings.
Where this application fits
Plastic geometry. Defined metal fastening points.

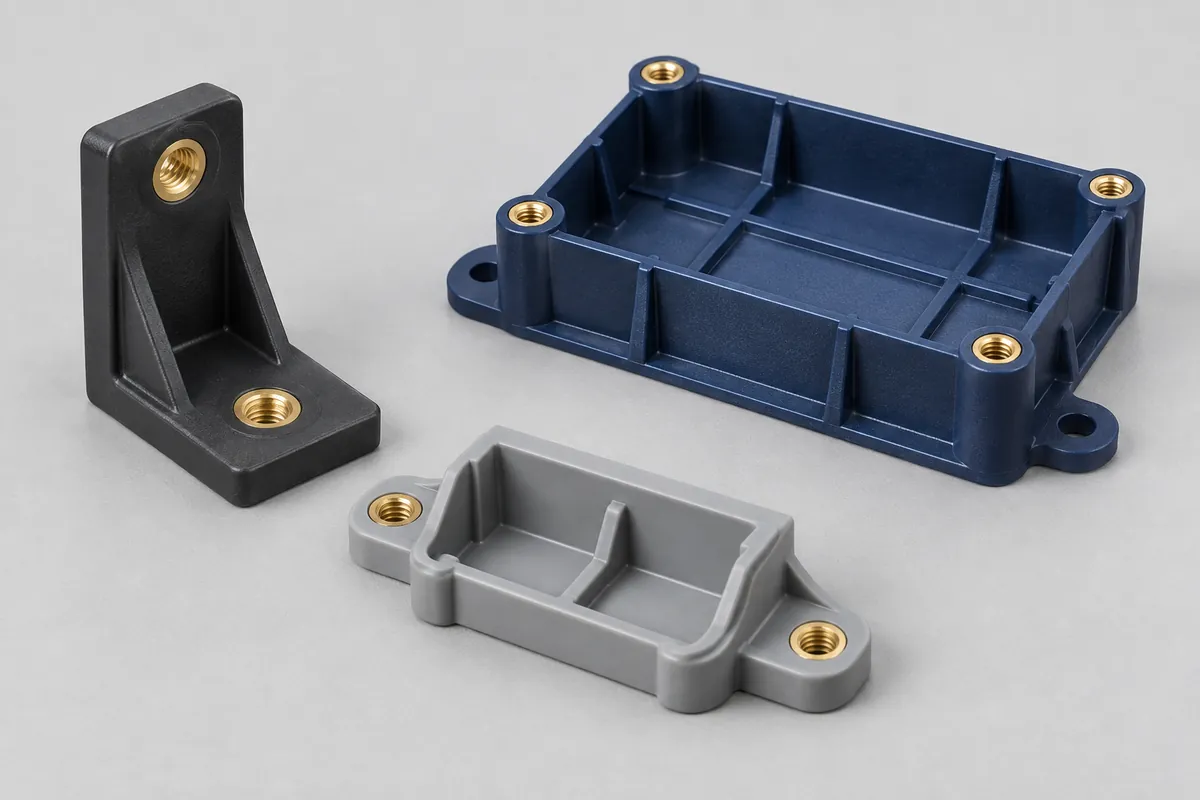

Suitable RFQs include equipment mounting brackets, electronics supports and component carriers where a molded plastic body locates threaded metal inserts. The exact application and its requirements must be reviewed before tooling is approved.
Mounting interfaces
Define seating faces, screw access, mating clearances and the position of each threaded connection. A matching hole spacing alone does not define assembly fit.
Insert integration
Review hardware identity, tool location and support, the surrounding plastic geometry and the regions that must remain free of resin.
Approval evidence
Specify dimensional inspection, thread checks and any mechanical or repeated-assembly tests before trial samples are made.
Quote-ready inputs
Specify the bracket you need—not a generic tolerance.
A quote can be precise about its scope before every engineering question is settled. Mark missing inputs as open decisions and ask for the proposed assumptions to be returned with the offer.
| Area | Please provide | Review before release |
|---|---|---|
| Bracket and assembly | 3D CAD, dimensioned drawing, mating-part revisions, mounting envelope and access for assembly. | Parting direction, insert loading, ejection and any proposed geometry changes. |
| Plastic material | Exact grade if selected, filler/color requirements and relevant service environment. | Material availability, processing suitability and any alternative that requires approval. |
| Threaded inserts | Controlled insert drawing or part number, thread, length, material/finish and supply responsibility. | Location/support concept, retention geometry and protected thread regions. |
| Critical characteristics | Drawing-defined datums, thread usability, position, surface zones and required assembly fit. | Inspection method, sampling, fixtures and report scope; no blanket tolerance is assumed. |
| Mechanical validation | Applicable loads, load directions, exposure, screw procedure and acceptance owner. | Project-specific test plan and quoted scope, separate from unverified catalog values. |
| Order and release | Trial quantity, initial batch, repeat demand, approval hold points and documentation needs. | Tooling, samples, production and any separately priced inspection or testing. |
Candidate materials may include engineering thermoplastics appropriate to the design, but an exact grade, color and filler content should be agreed. Likewise, the insert's thread size does not define its retention geometry or intended installation route. Compare molded-in and heat-installed routes before treating two quotations as equivalent.
From drawing to release
A review sequence with clear approval points
Scope the assembly
Confirm drawing revisions, interfaces, loads, environment, insert ownership and order quantities.
Review tooling
Resolve loading, location, plastic geometry, thread protection and proposed changes before tool approval.
Assess trial parts
Inspect identified samples and perform only the tests included in the agreed validation plan.
Authorize production
Record acceptance or open actions, then define ongoing inspection and change-control requirements.
Practical buyer guides
Resolve the questions that change the quotation.
- Molded-In vs Heat-Installed Inserts: Choosing a Route for Plastic BracketsCompare molded-in and heat-installed threaded inserts for plastic brackets, including tooling, assembly access, drawing changes and approval scope.
- Torque and Pull-Out Testing for Insert-Molded Parts: Defining a Useful TestPlan threaded-insert torque and pull-out tests with defined support, loading direction, specimen identity, failure criteria and reporting requirements.
- Checking Multiple Inserts in a Plastic Bracket: Datums Before DimensionsDefine datum alignment, insert-axis checks and functional fit for multi-insert plastic brackets without confusing clamping effects with part accuracy.
- Keeping Threads Clear in Insert Molding: From Tool Review to InspectionDefine thread protection and inspection for insert-molded plastic parts, including insert tolerances, shutoff review, gauges and rework approval.
- Repeated Fastening in Plastic Brackets: What Should You Validate?Plan repeated assembly checks for threaded-insert plastic brackets, separating screw wear, insert movement, boss damage and joint requirements.
- Customer-Supplied Inserts: Incoming Checks and Lot Traceability for MoldingControl customer-supplied threaded inserts with revision identity, incoming checks, lot segregation, molding batch links and agreed rejection handling.
Questions before you send a bracket RFQ
Are these stock brackets or loose threaded inserts?
No. This page covers custom injection-molded plastic brackets made to an agreed design. There is no stock SKU, published universal load rating or implied inventory. Loose hardware supply is not the offering described here.
Can we supply our own inserts?
Include the controlled specification, quantities and lot information in the RFQ. Incoming inspection, trial consumption, ownership and rejected-material handling need agreement before customer-supplied inserts are used.
Which resin and threaded insert should we choose?
Selection depends on the assembly, geometry, exposure and validation requirements. Send any approved grade and hardware specification; otherwise request a scoped material and insert review. A generic resin family is not a performance guarantee.
Can you quote heat-installed inserts as well?
This page primarily concerns molded-in inserts. Heat installation can be compared as a design alternative, but availability, responsibility and validation for any secondary operation must be confirmed in the quotation.
What tolerance, pull-out force or service life can you guarantee?
None is assigned generically on this page. The drawing, agreed test method, material and actual validation evidence define the acceptance requirements for each project. The illustrative study below contains no measured results.
Your next step
Send the assembly context with the bracket drawing.
Include the resin grade if selected, insert specification, mating hardware, trial and production quantities, and acceptance requirements. State any unresolved choices so they can be reviewed rather than silently assumed.
