Custom Gas Assist Injection Molding Services

Gas assist injection molding injects pressurized nitrogen gas into molten plastic. The gas creates hollow sections while the material is still pliable. Cycle times drop significantly compared to traditional methods. Part quality improves dramatically with fewer sink marks and warping issues.
Our engineering team specializes in gas-assisted molding solutions. We help you reduce costs, improve quality, and accelerate production timelines with proven expertise.

Request Quote

◆ISO 9001:2015 Certified Processes

◆ISO 13485: 2016 Medical Device

◆AS9100 Quality Management

◆ISO 45001: 2018 Certified

◆In-Process Inspection with CMM

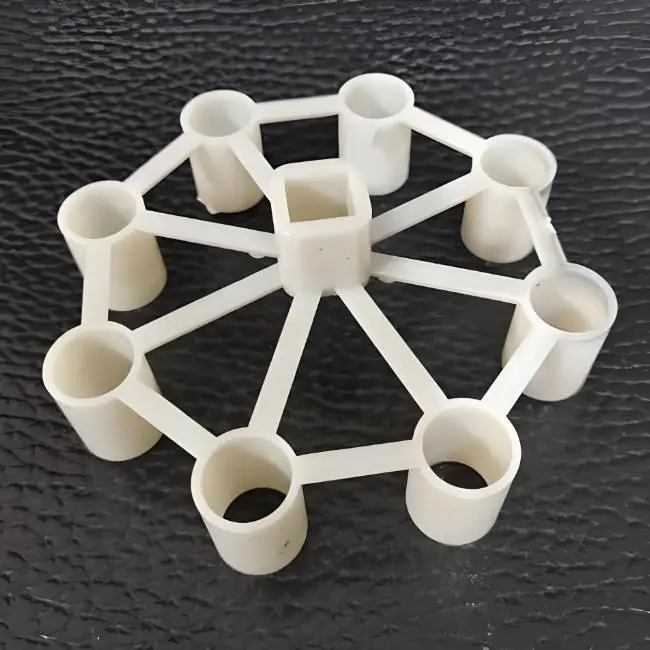

Gas-Assisted Injection Molding

Standard injection molding fills a mold cavity completely with molten plastic. Gas-assisted injection molding combines traditional injection techniques with controlled gas injection.

The process injects a partial shot of plastic material first. Then pressurized nitrogen gas enters through specialized nozzles. The nitrogen gas creates pathways through the molten material. These pathways form hollow sections within the part structure. The gas pressure also packs the plastic against the mold walls. This ensures excellent surface quality and dimensional accuracy.

Gas assist injection molding solves problems that plague traditional molding. Thick-walled parts often develop sink marks as material cools unevenly. Gas injection eliminates this issue by hollowing out thick sections.

Traditional Injection Molding

Traditional methods fill the entire mold cavity with plastic. Large volumes of material create cooling challenges. Thick sections cool slowly and often develop internal stresses.

These stresses lead to visible defects on part surfaces. Warping occurs as different sections contract at different rates. Long cycle times are required to ensure complete cooling throughout the part.

Gas-Assisted Injection Molding

Gas injection creates hollow sections that reduce material volume. Less material means faster, more uniform cooling. The gas pressure maintains part dimensions as plastic solidifies.

Parts emerge with smooth surfaces free from sink marks. Structural integrity improves because internal stresses are minimized. Cycle times decrease substantially, boosting production efficiency.

Internal vs. External Gas Assisted Injection Molding

Gas-assisted injection molding employs two distinct approaches as follow:

◉

Internal Gas Injection Method

Internal gas injection introduces nitrogen directly into the molten plastic. The gas flows through the part’s interior, creating hollow channels. This approach works best for parts with tubular sections or thick ribs.

The process begins when plastic fills 70-95% of the mold cavity. Gas injection starts immediately afterward. The pressurized nitrogen penetrates the plastic, following the path of least resistance toward thicker sections. Internal channels form naturally as gas displaces still-molten material. The gas pressure maintains until the plastic solidifies completely. This ensures the cavity remains properly packed and dimensional accuracy is preserved.

Creates internal hollow sections that reduce weight significantly
Ideal for handles, tubular structures, and thick-walled components
Eliminates sink marks in thick sections by hollowing from within
Reduces material consumption by 25-40% in suitable applications
Requires careful gas channel design to control gas flow paths

◎

External Gas Injection Method

External gas injection places nitrogen between the part surface and the mold wall. The gas creates a thin layer that improves surface quality. This technique excels for large, flat parts prone to warping.

The mold fills completely with plastic material first. Then gas injects into specific areas between the plastic and mold surface. The gas pressure creates a slight gap that allows controlled shrinkage. Surface quality improves dramatically with this approach. The gas cushion prevents the plastic from sticking to the mold. This eliminates surface imperfections and reduces the need for secondary finishing operations.

Improves surface finish on large, flat components
Prevents warping in panels and broad surfaces
Reduces cooling time by allowing air gap formation
Eliminates witness marks and surface defects
Works well with parts requiring Class A surface quality

The choice affects tooling design significantly. Internal gas injection requires specialized nozzles integrated into the mold. External methods need carefully designed gas pockets and venting systems. Both approaches demand precise process parameter control. Some complex parts benefit from combining both approaches. Hybrid techniques use internal channels in thick sections while applying external gas to broad surfaces.

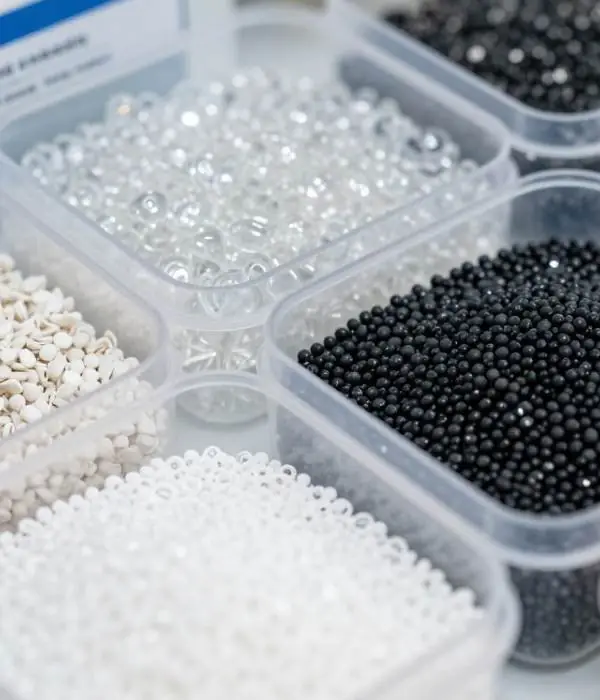

Materials Used in Gas-Assisted Injection Molding

Gas-assisted injection molding works with a wide range of thermoplastic materials.

Engineering Thermoplastics

Polycarbonate stands out for optical clarity and impact resistance. ABS provides excellent processability and surface finish. The material flows easily and accepts gas injection readily. Nylon materials offer outstanding strength and wear resistance. Glass-filled nylon grades achieve exceptional rigidity. These materials suit structural components requiring durability under stress.

Commodity Plastics

Polypropylene provides chemical resistance and flexibility. High-density polyethylene offers toughness and moisture resistance. Applications include containers, handles, and outdoor equipment. The process creates lightweight yet durable components.

Specialty and High-Performance Materials

PEEK withstands temperatures up to 250°C continuously. The material resists chemicals and radiation. Aerospace and medical implant applications justify the higher material costs. PPS offers outstanding chemical and heat resistance. Gas assist processing maintains structural integrity while reducing weight.

Material	Key Properties	Typical Applications	Gas Assist Suitability
Polycarbonate (PC)	High impact strength, optical clarity, heat resistance to 135°C	Automotive lighting, medical devices, safety equipment	Excellent – maintains clarity in hollow sections
ABS	Good impact resistance, excellent surface finish, easy processing	Consumer electronics, automotive trim, appliances	Excellent – superior flow characteristics
Nylon (PA)	High strength, wear resistance, chemical resistance	Structural components, gears, industrial parts	Very good – glass-filled grades perform well
Polypropylene (PP)	Chemical resistance, flexibility, low cost	Automotive interiors, packaging, consumer goods	Good – cost-effective for large parts
PC/ABS Blend	Combined benefits of PC and ABS, excellent impact at temperature extremes	Automotive exterior, power tools, outdoor equipment	Excellent – balances strength and processability
TPE (Thermoplastic Elastomer)	Rubber-like flexibility, soft touch, recyclable	Grips, seals, soft-touch components	Moderate – requires careful process control

Gas Assist Injection Molding Process

Mold Preparation and Closing

The mold closes under high clamping force to prevent separation during injection. Temperature control systems bring the mold to optimal processing temperature.

Plastic Injection Phase

Molten plastic injects into the cavity at high pressure. The injection stops when the cavity reaches 70-95% full.

Gas Injection Phase

Nitrogen gas injects immediately after plastic injection ceases. Gas pressure typically ranges from 1,000 to 3,000 PSI depending on part size and material.

Packing and Holding Phase

Gas pressure maintains throughout the packing phase. This pressure compensates for plastic shrinkage as cooling begins.

Cooling Phase

The plastic solidifies while gas pressure continues. Cooling channels in the mold extract heat from the plastic. The hollow sections created by gas cool from both inside and outside surfaces.

Gas Evacuation and Part Ejection

Gas vents from the part once plastic achieves sufficient strength. The mold opens and ejector pins push the part free.

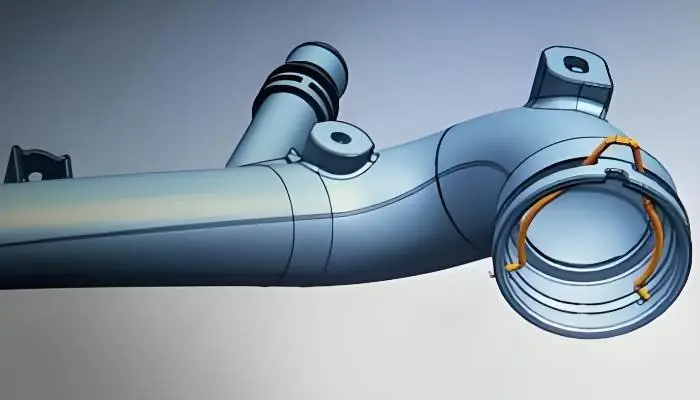

Design Considerations for Gas Assist Injection Molding

Successful gas-assisted injection molding offers tremendous benefits, but only when designs accommodate gas flow principles. These considerations ensure optimal results.

Wall thickness critically affects gas flow behavior. The gas naturally migrates toward thicker sections where plastic remains molten longer. Designers intentionally create thicker areas where hollow sections are desired.

Uniform wall thickness throughout a part limits gas assist benefits. Varying wall thickness guides gas flow predictably. Transition zones between thick and thin sections require gradual changes to prevent stress concentrations.

Minimum wall thickness depends on material selection and part size. Most applications work well with walls between 2.5mm and 6mm. Thinner sections may not allow adequate gas penetration. Thicker sections increase cooling time unnecessarily.

Maintain wall thickness ratios of 2:1 or 3:1 between thick and thin sections
Design gas channels at least 1.5 times thicker than adjacent walls
Avoid sudden thickness changes that disrupt gas flow
Place thickest sections where structural strength is needed most

vs. Traditional Plastic Injection Molding

Advantages of Gas Assist Injection Molding

Gas-assisted injection molding delivers substantial advantages over traditional injection processes. These benefits span cost reduction, quality improvement, and design flexibility.

◉

Material Cost Reduction

Hollow sections reduce material consumption by 25-40% in typical applications. The cost impact multiplies with expensive engineering plastics. High-volume production magnifies these savings across millions of parts. Reduced material usage also lowers shipping costs.

◉

Elimination of Surface Defects

Gas injection eliminates sink marks by hollowing thick sections from within. External surfaces remain smooth and defect-free. This eliminates costly secondary operations like filling, sanding, or painting to hide defects. Parts achieve Class A surface finish directly from the mold.

◉

Reduced Cycle Times

Cycle time reductions of 20-50% are common with gas-assisted molding. Hollow sections cool faster than solid material of equivalent thickness. The gas creates internal surface area that accelerates heat extraction. Shorter cycles also reduce energy consumption.

◉

Improved Part Strength and Stiffness

The gas creates geometric shapes that resist bending and twisting. Structural integrity often improves compared to solid sections of the same weight. The uniform cooling prevents internal stresses that cause delayed failure. Thicker walls become feasible without defects.

◉

Enhanced Design Flexibility

Part consolidation becomes practical with gas assist technology. Multiple components can merge into single parts. This reduces assembly operations, eliminates fasteners, and improves reliability. Varying cross-sections, integrated handles, and structural ribs all work well.

◉

Lower Clamping Force Requirements

Large, thick-walled parts require massive, expensive molds for traditional molding to withstand enormous clamping forces and injection pressures. Gas assist injection reduces the clamping force. Lower injection pressures allow lighter mold construction. The cost savings on tooling can be substantial for large parts.

Industries Considering Gas-Assisted Injection Molding

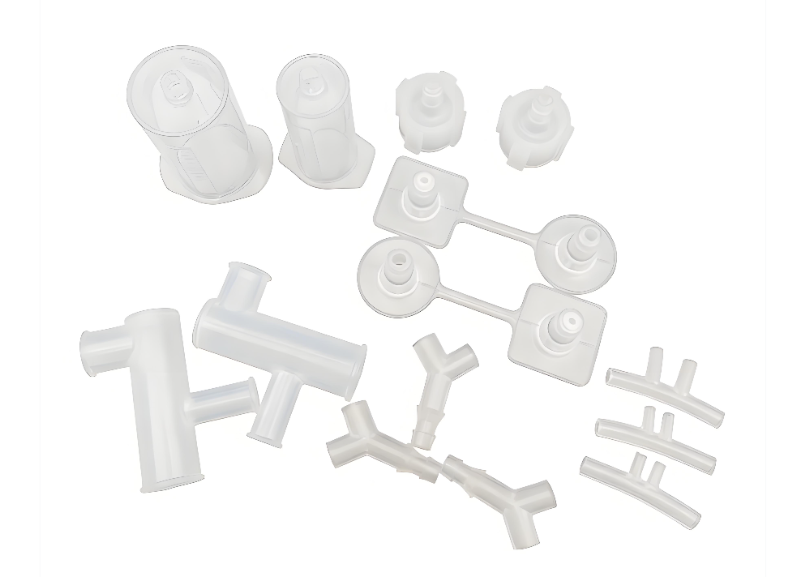

Medical Device

Medical devices require consistent quality, biocompatibility, and often lightweight construction. Applications range from diagnostic equipment to surgical instruments.

Handles for surgical instruments
Diagnostic equipment housings
Patient care devices
Laboratory equipment

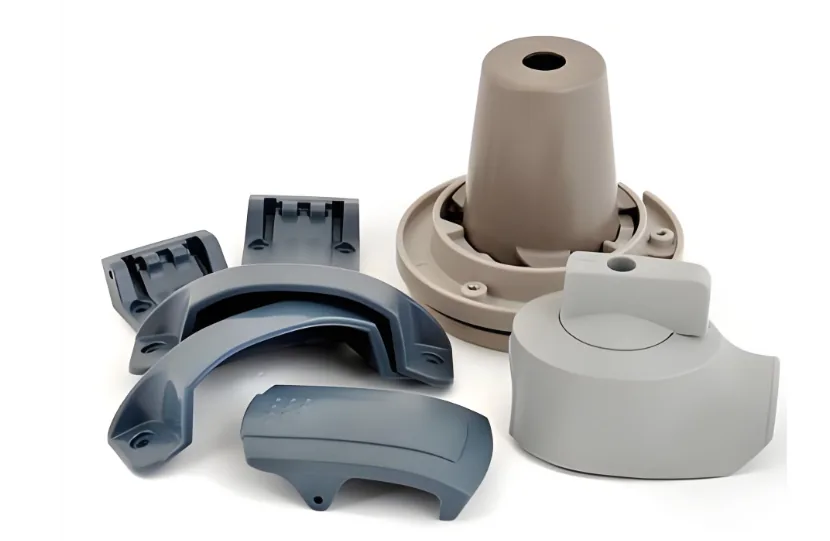

Consumer Goods and Electronics

Consumer electronics demand excellent surface finish and dimensional precision. Gas-assisted molding delivers both while reducing material costs, enabling thinner, lighter products.

Television and monitor bezels
Power tool housings
Appliance panels
Appliance components like refrigerator door liners

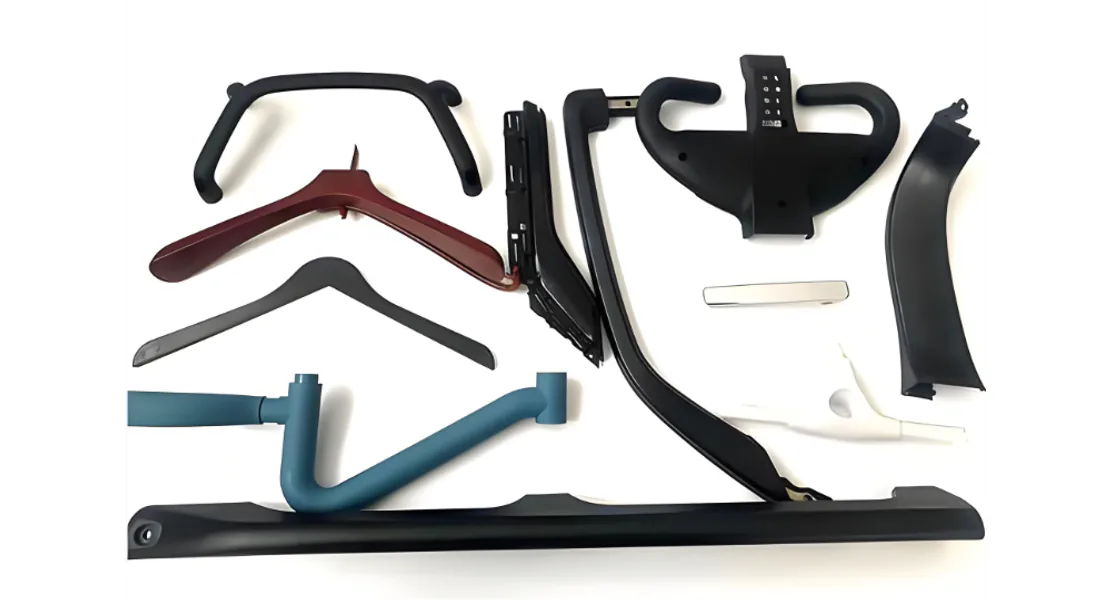

Automotive

Automotive manufacturers use gas-assisted injection molding to produce large, lightweight interior and structural components with excellent surface quality. Hollow sections reduce material use and cycle time while maintaining strength and dimensional stability.

Instrument panel supports and dashboard components
Door handles and interior trim
Seat frames and headrest supports
Front-end carriers and structural brackets

FAQs About Gas-Assisted Injection Molding

What part sizes work best with gas-assisted injection molding?+

Gas assist works effectively across a wide size range. Small parts under 50 grams benefit when thick sections require hollow cores. Large parts exceeding 5 kilograms show dramatic material and cost savings. The technology proves most economical for parts with dimensions exceeding 150mm in any direction. Smaller parts may not justify the additional tooling complexity unless high volumes warrant automation benefits.

Can gas-assisted molding produce parts with tight tolerances?+

Yes, gas-assisted parts maintain tight tolerances on external surfaces. The gas pressure packs plastic firmly against mold walls, ensuring dimensional consistency. External dimensions typically achieve ±0.1mm or better depending on material and part size. Internal hollow sections show more variation than external surfaces. Design critical dimensions on mold-contact surfaces whenever possible. Proper process control delivers repeatability matching traditional injection molding.

Is gas-assisted molding suitable for multi-cavity molds?+

Yes, multi-cavity molds work well with gas assist technology. Each cavity requires independent gas injection control for consistent results. Balanced gas distribution ensures all cavities produce identical parts. Process monitoring verifies consistent gas penetration across all cavities. Multi-cavity tooling maximizes production efficiency for high-volume applications.

Can recycled materials be used in gas-assisted injection molding?+

Yes, recycled materials process successfully with gas assist techniques. Material flow characteristics and gas penetration behavior remain consistent when using quality regrind. Typical regrind content ranges from 10-25% depending on performance requirements.

What secondary operations are required after gas-assisted molding?+

Most gas-assisted parts require minimal secondary operations. The excellent surface quality eliminates finishing steps needed for traditional molded parts. Some applications require trimming of overflow material or finishing of injection point witness marks.
