Custom Injection-Molded Plastic Pulleys
Define the running surface, bearing and mating component together.
FECISION reviews custom molded guide pulleys and idler wheels for customer-defined equipment. Send the wheel drawing, belt or track specification, bearing details and acceptance requirements to scope tooling and molding. This is made-to-design supply, not a stock replacement-pulley catalog.
Product details
Running profiles, bearing interfaces and molded construction
Product design illustrations show possible configurations. Dimensions, compound, bearing selection and operating limits require project-specific review.

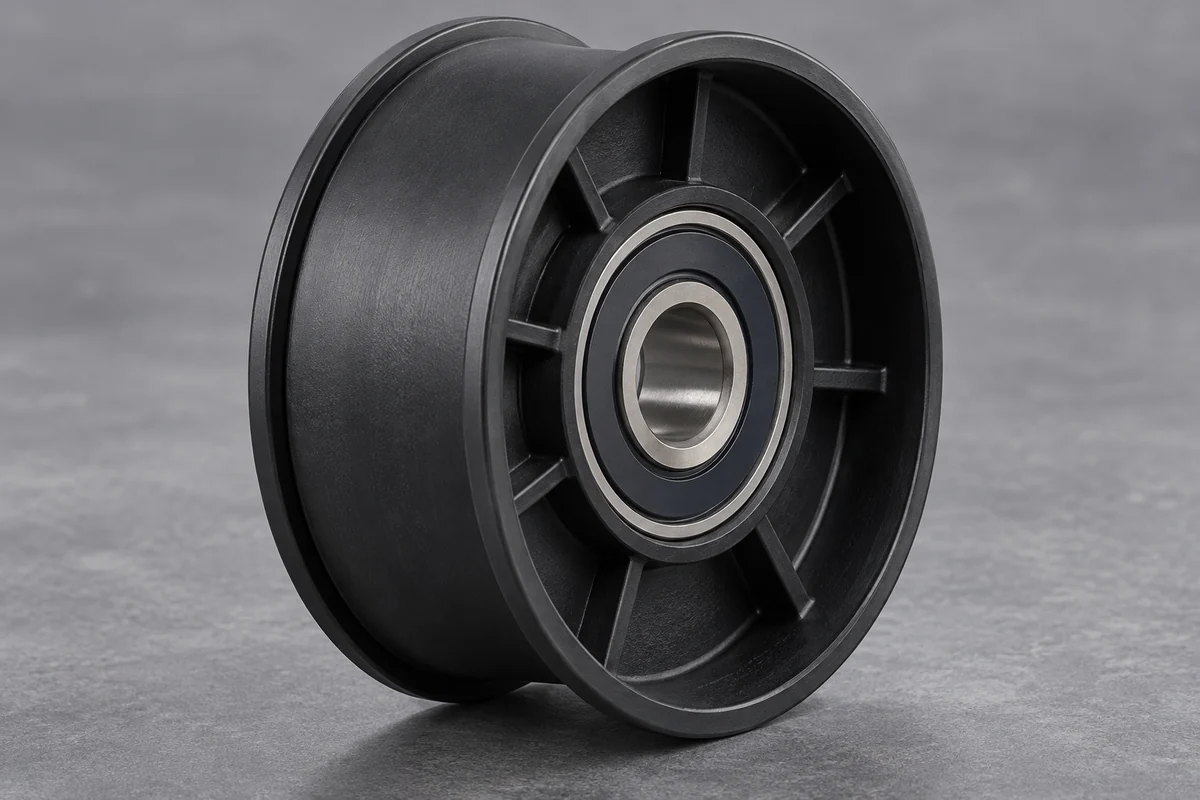

Bearing-centered guide wheel
Control the tread relative to the assembled rotation axis, not just the outside diameter.

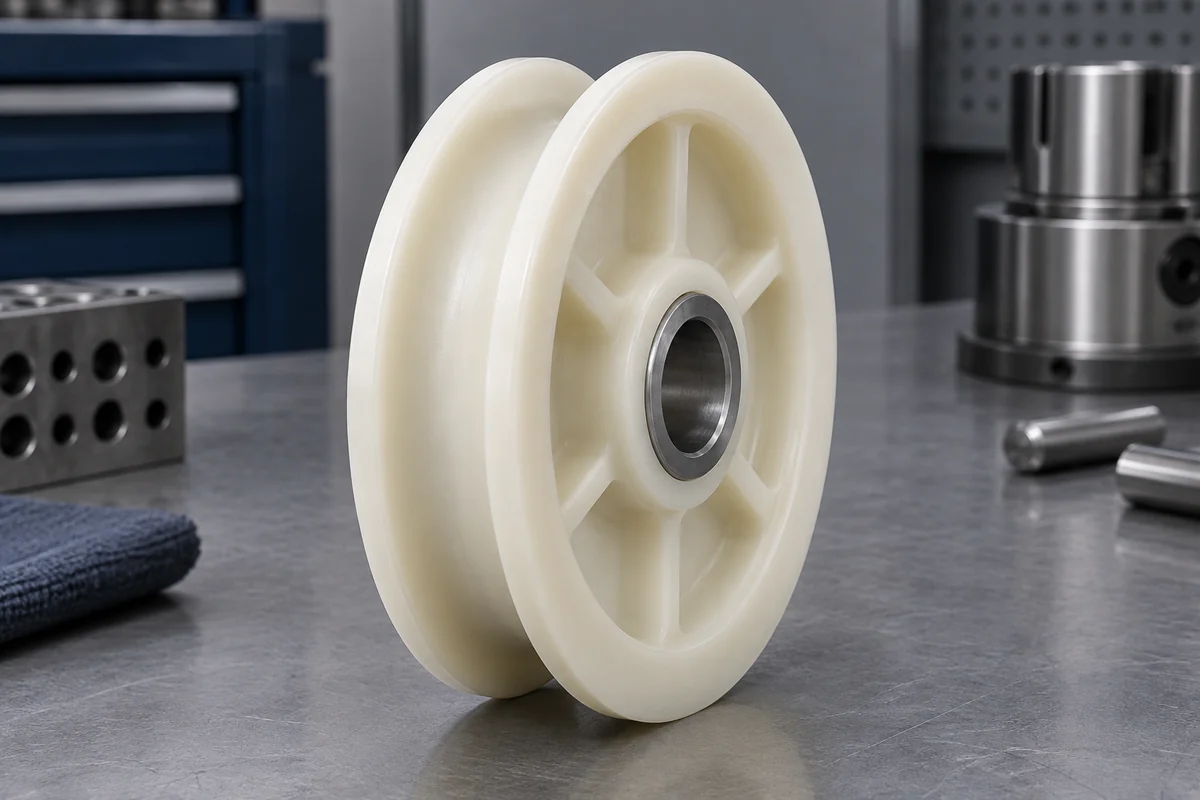

Rounded groove profile
Define the mating cord or belt and its intended contact before selecting a groove.

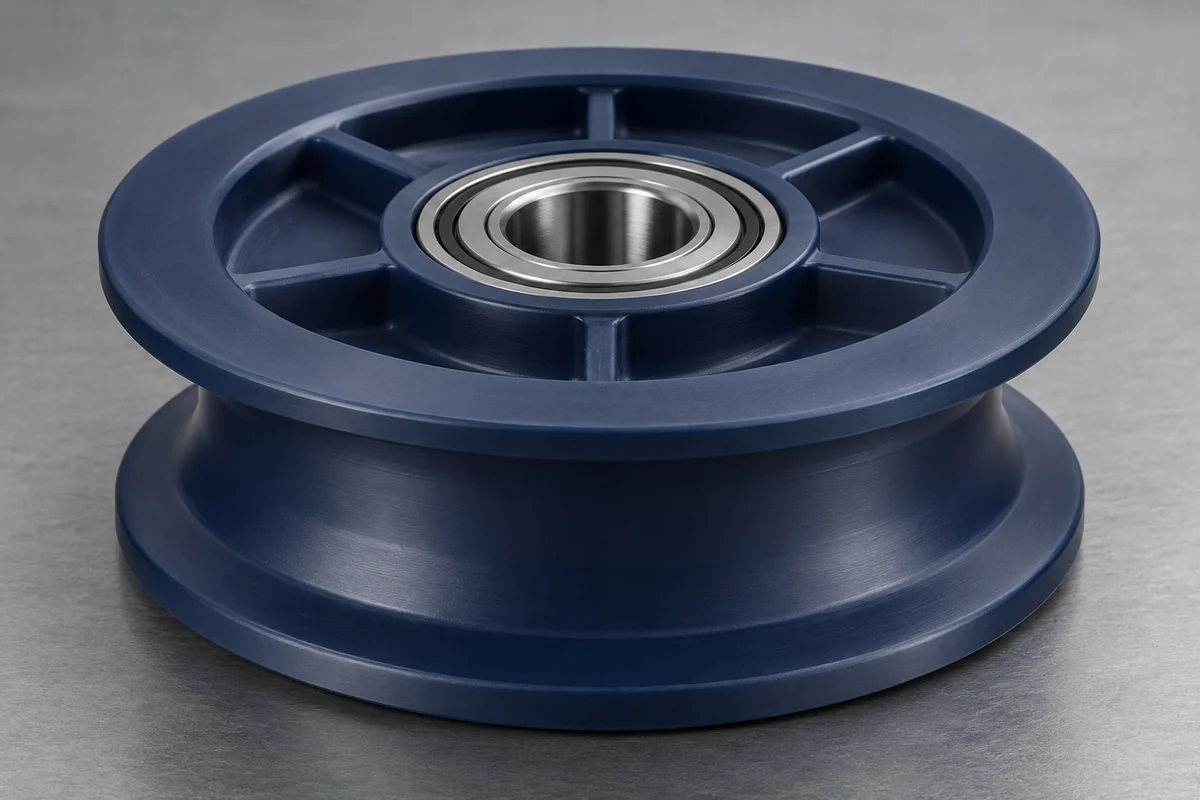

Flanged idler geometry
Review tread width, flange clearance and alignment with the complete assembly.

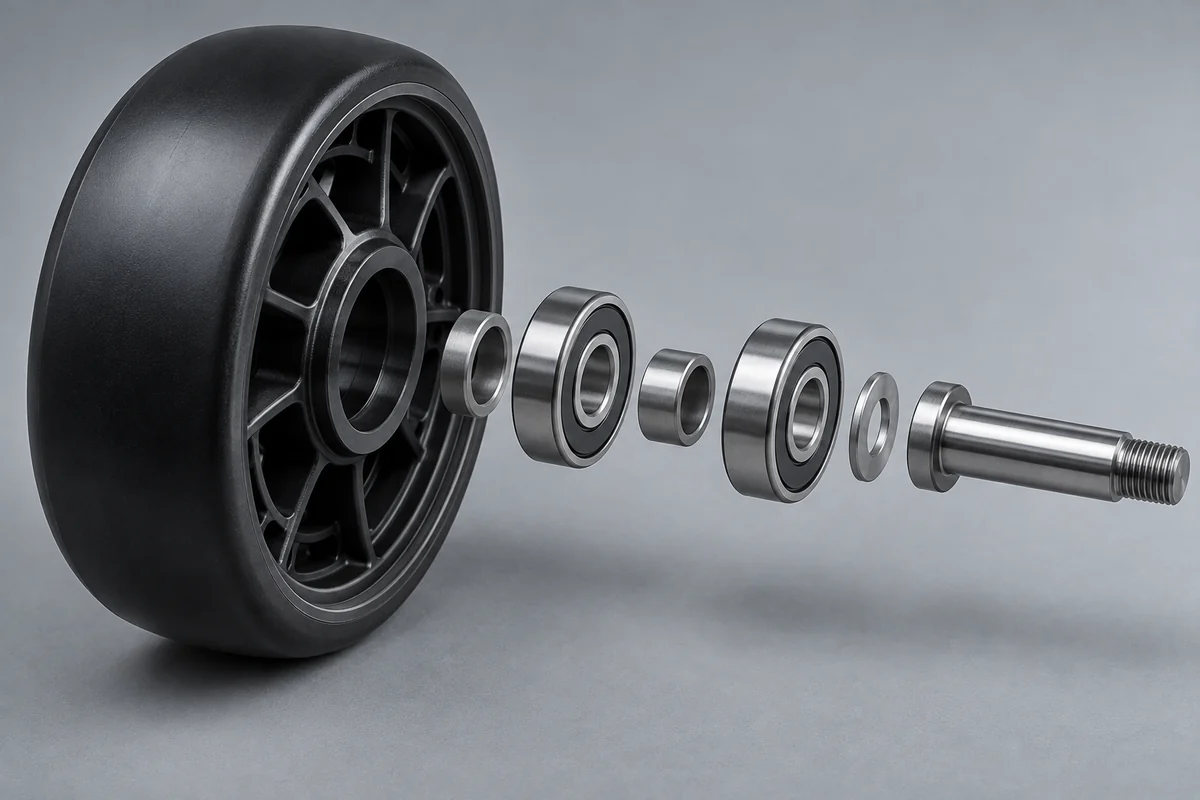

Bearing and shaft interface
Specify whether the supply includes the molded part, bearing installation or inspected assembly.

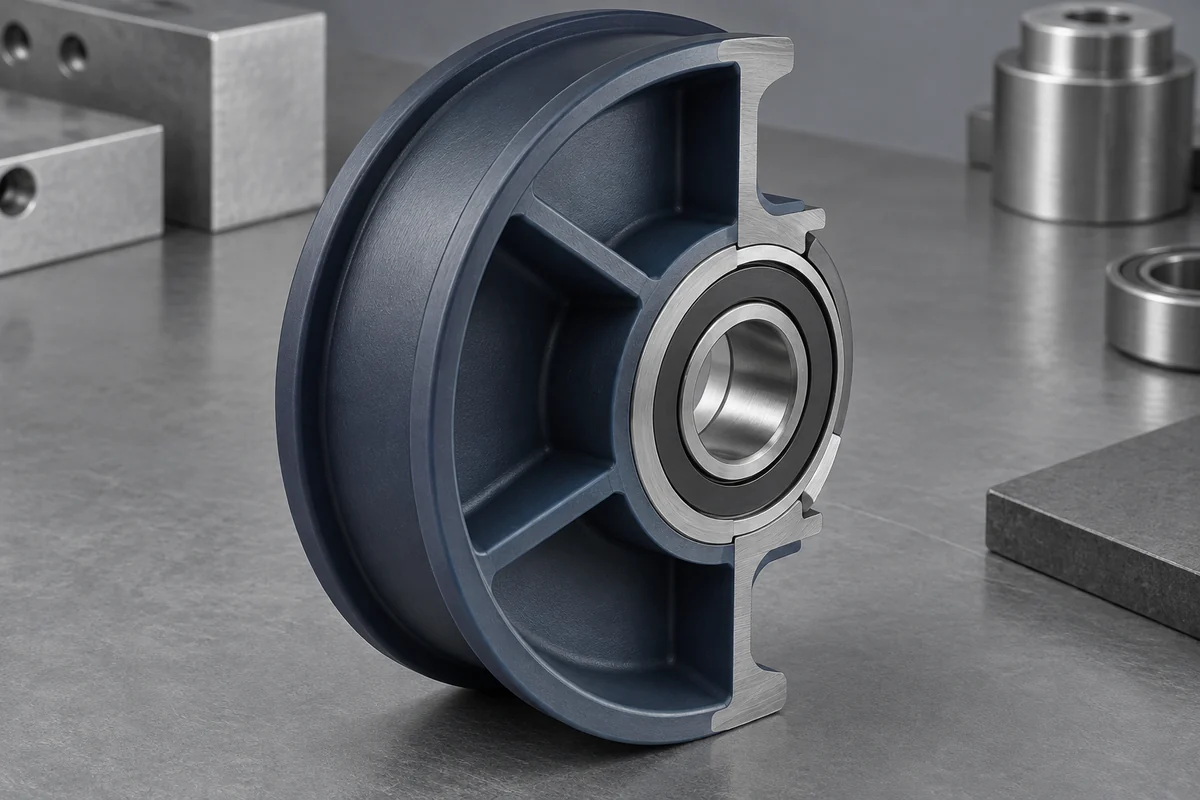

Section and supporting ribs
Review local wall transitions, insert support and the surfaces that must remain clear.

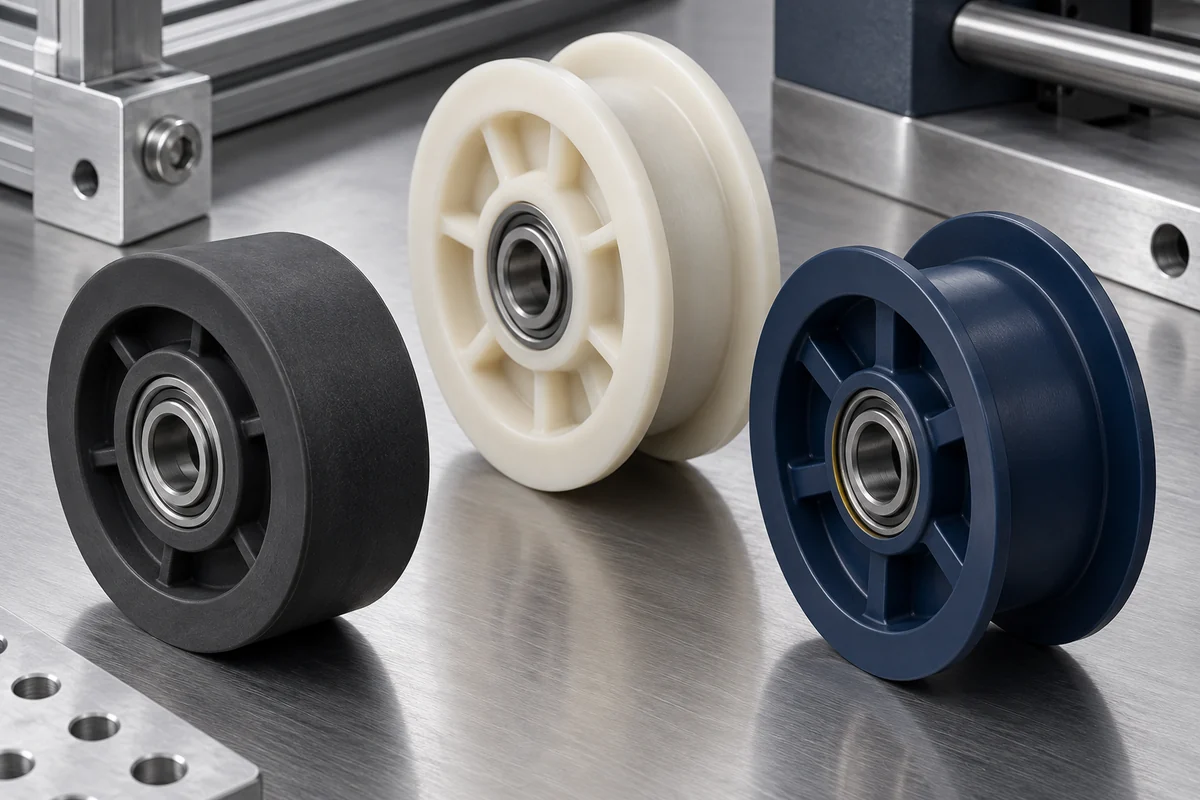

Illustrative configurations. Final specifications follow your approved drawings.
Application fit
Custom wheel components for a controlled equipment design
Review standard catalog parts first. Custom tooling is appropriate when the interface, envelope or repeat supply needs justify a dedicated molded design.

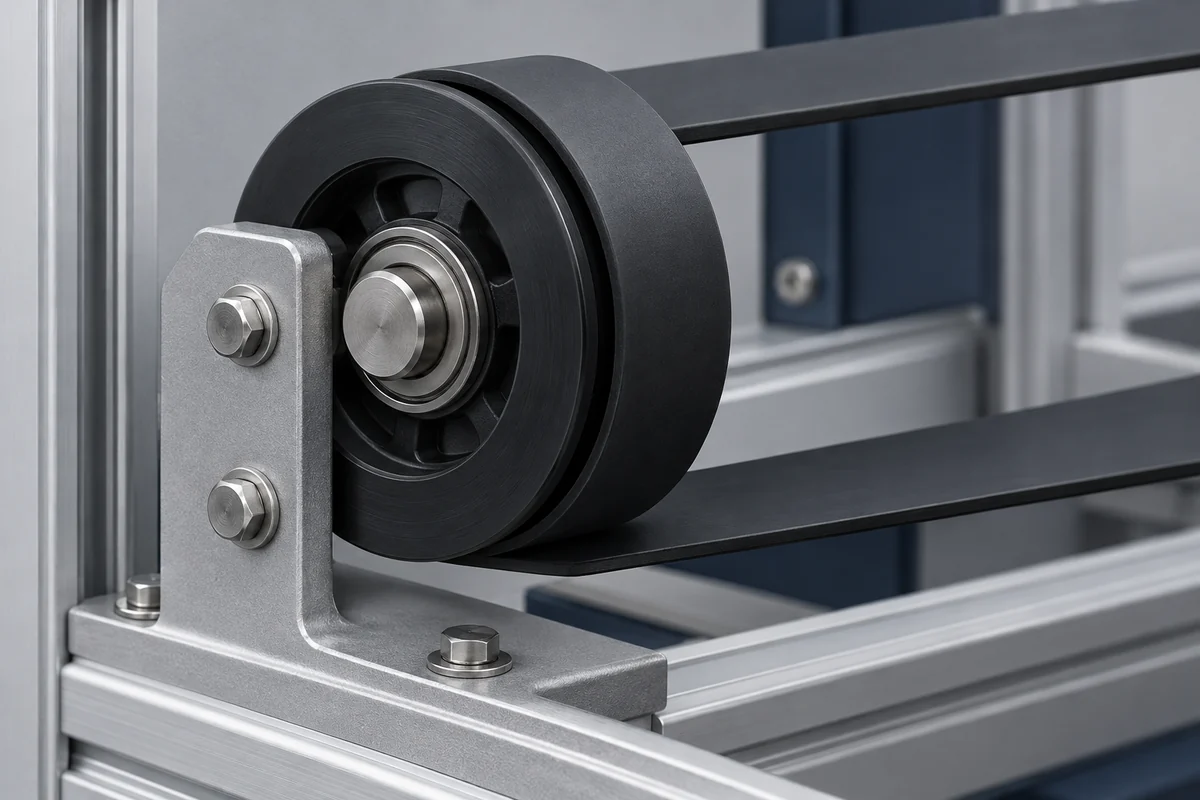

Belt-guide and idler components
Wheel geometry reviewed with the specified belt face, alignment, loading and mounting arrangement.
Grooved guide wheels
Customer-defined running profiles for a named cord or mating element, with acceptance tied to the actual contact.
Bearing-integrated pulleys
Molded-in or separately assembled bearings reviewed for retention, process exposure, free rotation and inspection.
Quote-ready inputs
What to send for a meaningful quotation
Use the same drawing and requirements for every proposal. Mark open decisions explicitly so that a low price does not conceal a different deliverable.
| Area | Please provide | Review before release |
|---|---|---|
| Interface and loading | Wheel CAD, mating belt or track, assembly view, forces, speed and duty cycle. | Identify the functional tread, groove, flanges and mounting constraints. |
| Bearing arrangement | Full bearing specification, approved supplier, fit and procurement responsibility. | Compare molding exposure with a controlled post-assembly route. |
| Compound and environment | Approved resin or candidate requirements, conditioning and service exposure. | Review exact-grade evidence and dimensional behavior; do not infer formulation from color. |
| Drawing and inspection | Revision, datums, profile, radial/axial checks and sample state. | Align the fixture and reporting terms with the functional requirement. |
| Validation and supply | Trial quantity, repeat demand, test conditions, packing and change controls. | Separate development tests, routine inspection and customer-owned system qualification. |
From drawing to approval
Develop the molded wheel around its functional interfaces
Define the delivered assembly
Confirm the wheel, bearing and counterpart revisions and what each party supplies.
Review material and tool construction
Assess running surfaces, gates, section changes, insert location and protected bearing faces.
Evaluate traceable trial parts
Inspect identified cavities and check the agreed assembled geometry and rotation behavior.
Document acceptance and changes
Link approved samples to the material, bearing, drawing and required application evidence.
Practical engineering and buying guides
Decisions to make before production
- Custom Plastic Pulleys: Prepare a Comparable RFQSpecify custom plastic pulleys with the belt interface, bearing, drawing datums, material and inspection scope before comparing molding quotations.
- Nylon vs Acetal Pulleys: Compare the Complete ApplicationCompare nylon and acetal pulley candidates through moisture, dimensional fit, contact conditions and wear tests, not a generic low-friction label.
- Plastic Pulley Bearings: Insert Mold or Assemble Later?Compare insert-molded and post-assembled pulley bearings through retention, molding exposure, press support, inspection and replacement requirements.

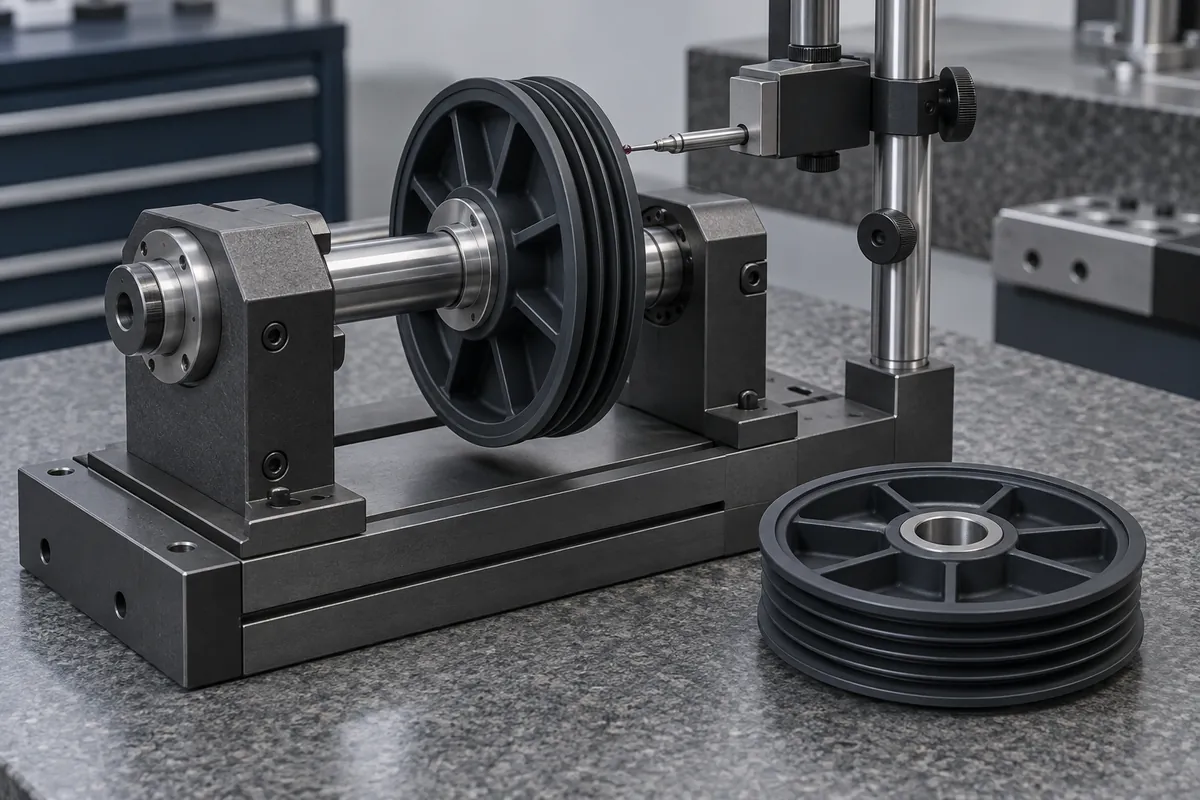

- Plastic Pulley Runout: Specify the Datum and Test SetupDefine radial and axial pulley runout with the correct datum, fixture, material condition and sample identity. Separate indicator sweep from concentricity.
