The "A" in ABS provides chemical and heat resistance, enhancing the material's hardness and stability under various conditions.

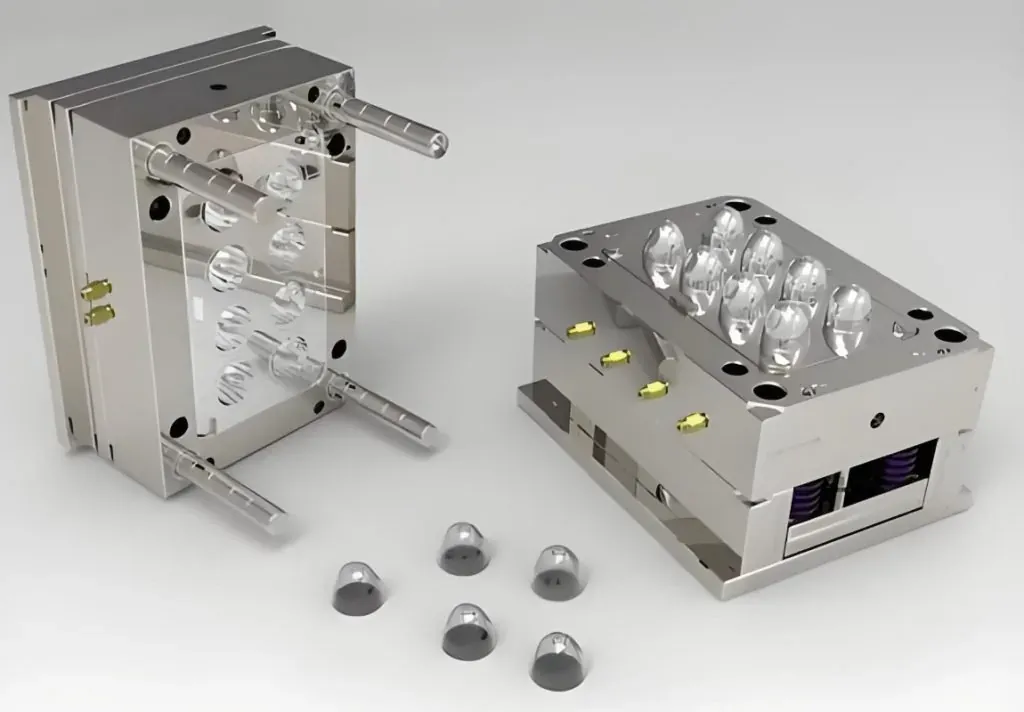

AcrylonitrileCustom ABS Injection
Molding Service
ABS injection molding delivers exceptional durability, dimensional stability, and cost-effectiveness for manufacturing complex plastic components. Our comprehensive ABS injection molding services provide precision-engineered plastic parts with superior surface finish and consistent quality, helping you bring innovative products to market faster.
Durable
Impact-resistant
Machinable
What is ABS
Plastic?
ABS (Acrylonitrile Butadiene Styrene) is a thermoplastic polymer composed of three monomers, each contributing specific properties to the material. This unique composition creates a versatile plastic with an excellent balance of mechanical, thermal, and chemical properties.
The "B" component contributes toughness and impact resistance, allowing ABS parts to withstand physical stress and impacts.
ButadieneThe "S" element offers processability, strength, and a glossy surface finish that enhances the aesthetic appeal of molded parts.
Styrene

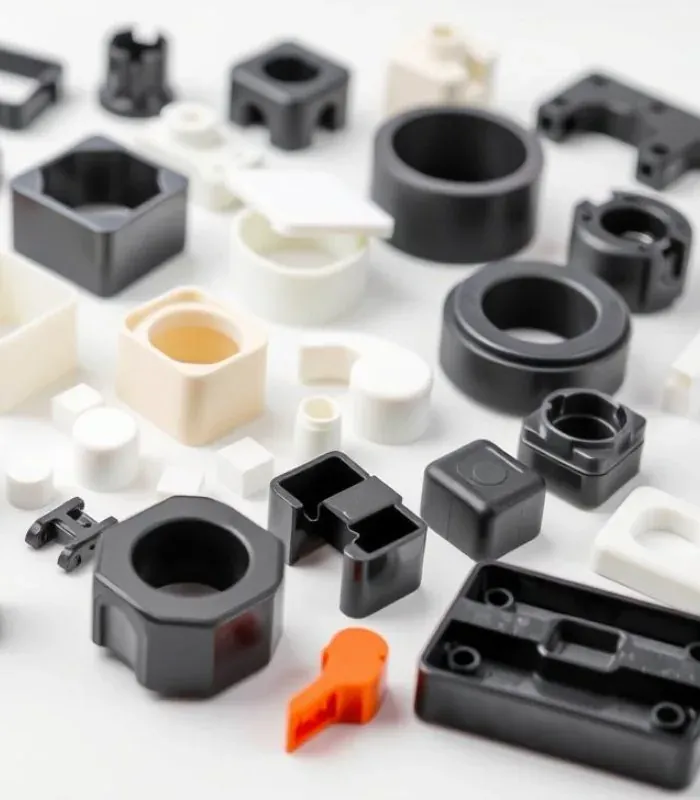

Common ABS Plastic Grades
| Grade | Properties | Applications |
|---|---|---|
| ABS 757 | High impact resistance, good flow properties | Automotive components, consumer electronics |
| ABS 758 | Enhanced heat resistance, high gloss | Appliance housings, electronic enclosures |
| ABS FR | Flame retardant, UL 94 V-0 rated | Electronic housings, power tools |
| ABS/PC Blend | Improved heat resistance, impact strength | Automotive interiors, medical devices |
| ABS Medical Grade | Biocompatible, sterilizable | Medical equipment housings, diagnostic devices |

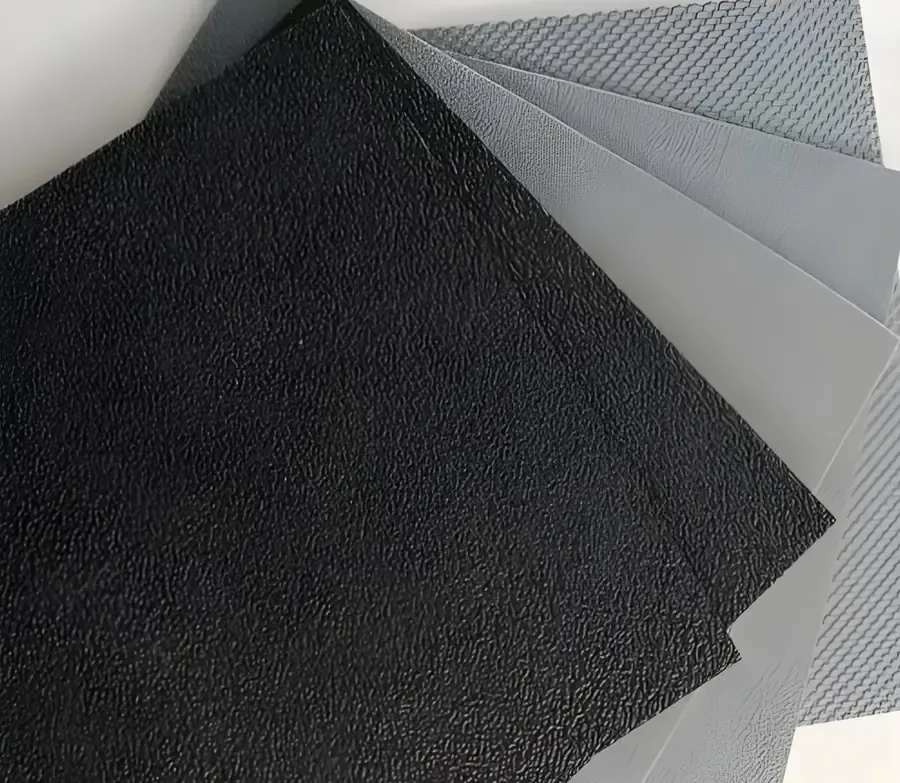

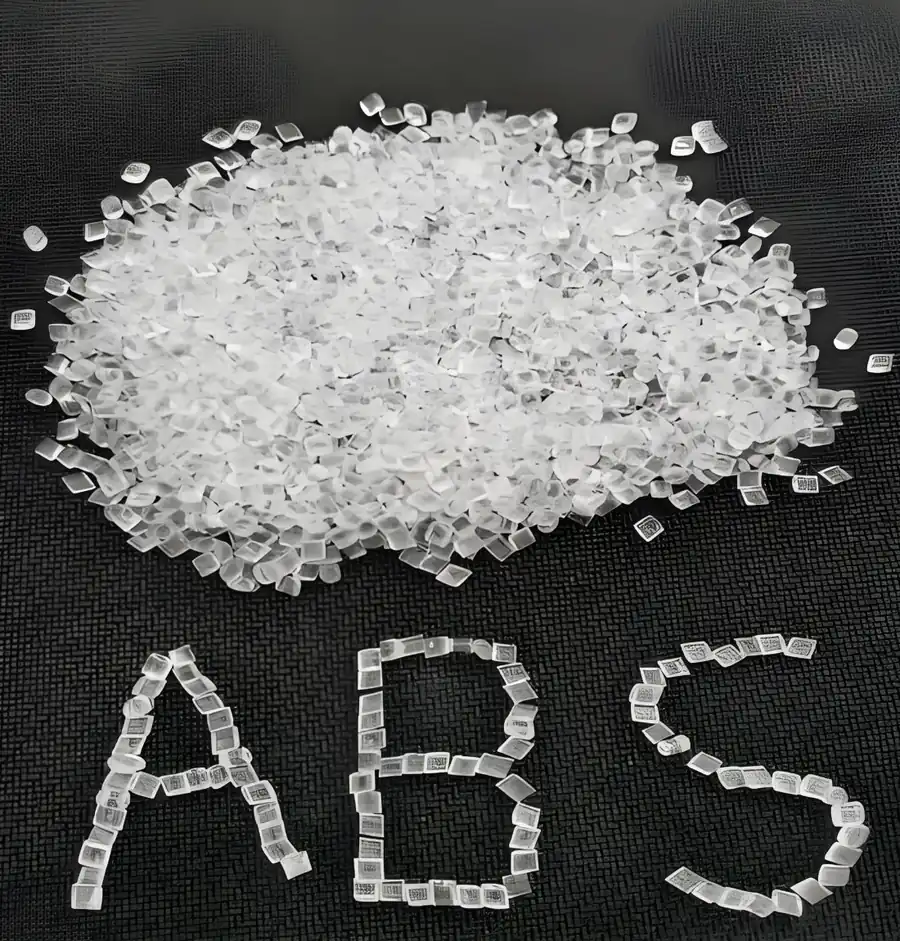

ABS Material Properties
ABS offers an excellent balance of mechanical, thermal, and chemical properties that make it ideal for a wide range of injection molded parts.
Mechanical Properties
- Tensile Strength: 40-50 MPa (5,800-7,250 psi)
- Impact Resistance: Excellent, especially at low temperatures
- Flexural Modulus: 2.1-2.4 GPa (305,000-348,000 psi)
- Hardness: Rockwell R105-R110
- Abrasion Resistance: Good to excellent
Thermal & Chemical Properties
- Heat Deflection Temperature: 90-105°C (194-221°F)
- Chemical Resistance: Good against alkalis, weak acids
- Water Absorption: 0.2-0.4% (24 hours)
- Shrinkage Rate: 0.4-0.7%
- Specific Gravity: 1.04-1.06
ABS Molding Specifications
Successful ABS injection molding requires precise control of processing parameters.
Our state-of-the-art equipment and experienced technicians ensure optimal processing conditions for consistent, high-quality parts.
| Parameter | Recommended Range | Notes |
|---|---|---|
| Melt Temperature | 210-270°C (410-518°F) | Higher temperatures for thin-walled parts |
| Mold Temperature | 40-80°C (104-176°F) | Higher temperatures for better surface finish |
| Injection Pressure | 60-100 MPa (8,700-14,500 psi) | Varies with part complexity and wall thickness |
| Drying Conditions | 80-85°C (176-185°F) for 2-4 hours | Essential to prevent surface defects |
| Minimum Wall Thickness | 1.14-3.56 mm (0.045-0.140 in) | Dependent on part geometry and flow length |
| Draft Angle | 0.5-1.0° | Required for proper part ejection |
- ABS combines rigidity, toughness, and ease of processing for medical device enclosures, drug delivery system housings, and diagnostic equipment chassis. Its excellent surface finish supports branding and labeling requirements common in regulated medical products.
- We mold ABS medical components with consistent dimensional stability and compliance with USP Class VI standards. Find out how our medical injection molding capabilities bring your medical device enclosures from concept to market.
Design Considerations for ABS Injection Molding
Wall Thickness
Maintain uniform wall thickness between 0.045" and 0.140" (1.14-3.56 mm) to prevent warping, sink marks, and other defects. Avoid abrupt transitions in wall thickness to ensure proper material flow and cooling.
Radii and Corners
Design with adequate radii at corners and transitions (minimum 25% of wall thickness) to reduce stress concentrations and improve material flow. Sharp corners can lead to stress concentration and potential part failure.
Pros and Cons of ABS Injection Molding
✓ Advantages of ABS Injection Molding
- Excellent Impact Resistance: ABS provides outstanding toughness and impact strength, making it ideal for applications requiring durability.
- Dimensional Stability: ABS maintains its shape and dimensions over time, even under varying environmental conditions.
- Cost-Effectiveness: Relatively low material cost combined with efficient processing makes ABS economical for high-volume production.
- Surface Finish: ABS produces parts with excellent surface quality that can be easily painted, plated, or otherwise finished.
- Design Flexibility: ABS can be molded into complex geometries with fine details, thin walls, and various textures.
- Chemical Resistance: Good resistance to many chemicals, including weak acids, alkalis, and household cleaners.
- Recyclability: ABS can be recycled and reprocessed, supporting sustainable manufacturing practices.
× Disadvantages of ABS Injection Molding
- UV Sensitivity: ABS degrades when exposed to prolonged sunlight, limiting outdoor applications without protective coatings.
- Temperature Limitations: Lower heat resistance compared to engineering plastics like polycarbonate or nylon.
- Moisture Sensitivity: Requires thorough drying before processing to prevent surface defects and property degradation.
- Flammability: Standard ABS is flammable and may require flame retardant additives for certain applications.
- Limited Chemical Resistance: Poor resistance to some solvents, including acetone and certain hydrocarbons.
- Warping Potential: Improper processing can lead to warping, especially in parts with uneven wall thickness.
- Fatigue Resistance: Not ideal for applications requiring repeated loading and unloading cycles.
ABS Injection Molding Applications
Industries We Serve
The versatility of ABS makes it suitable for a wide range of applications across multiple industries. Its combination of mechanical properties, processability,
and cost-effectiveness has made it a preferred material for many products we use daily.

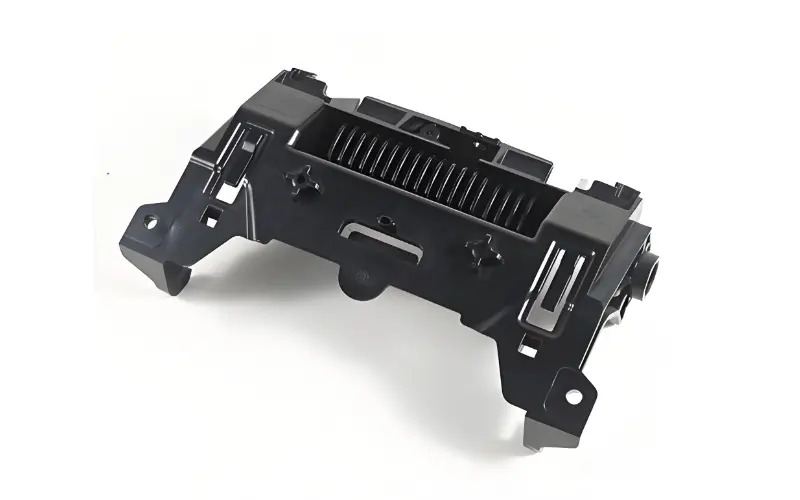

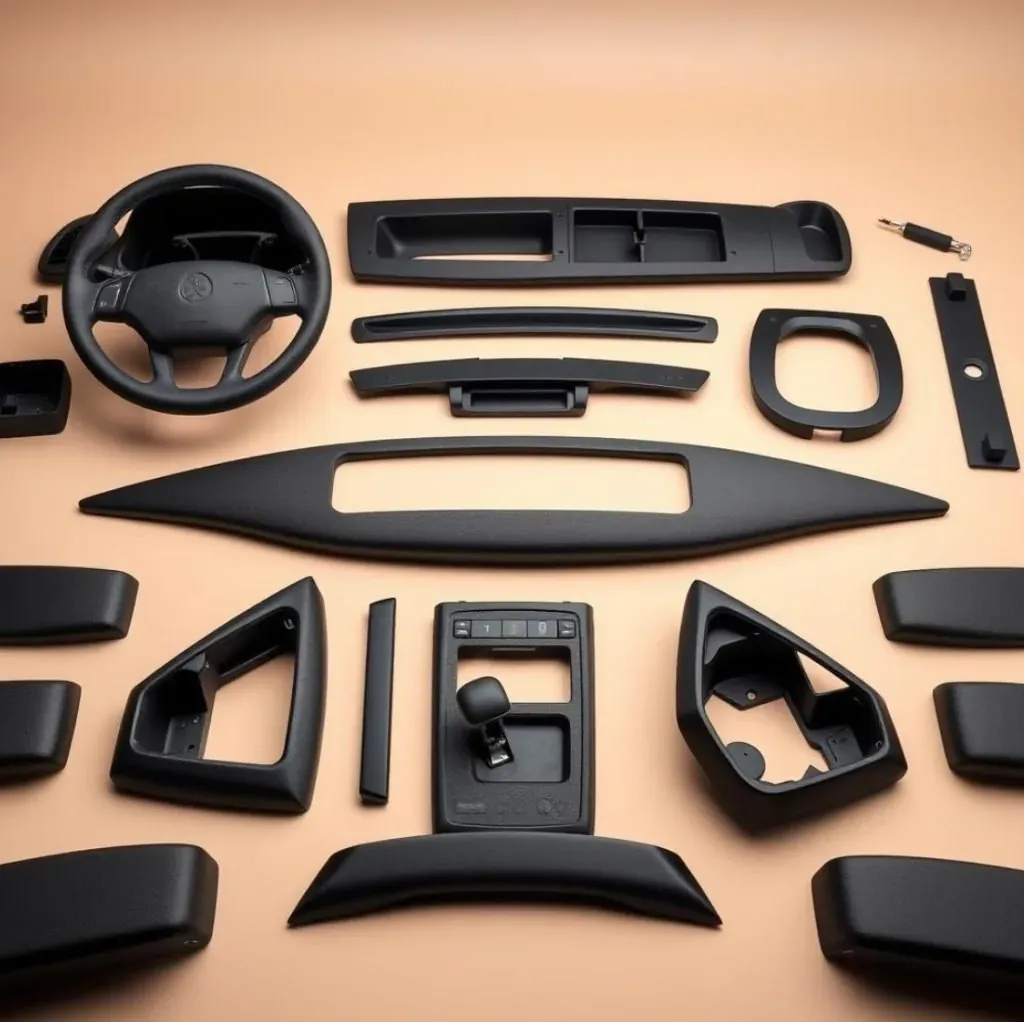

Automotive
Dashboard components
Interior trim panels
Door handles and liners
Center console parts
Seat belt components

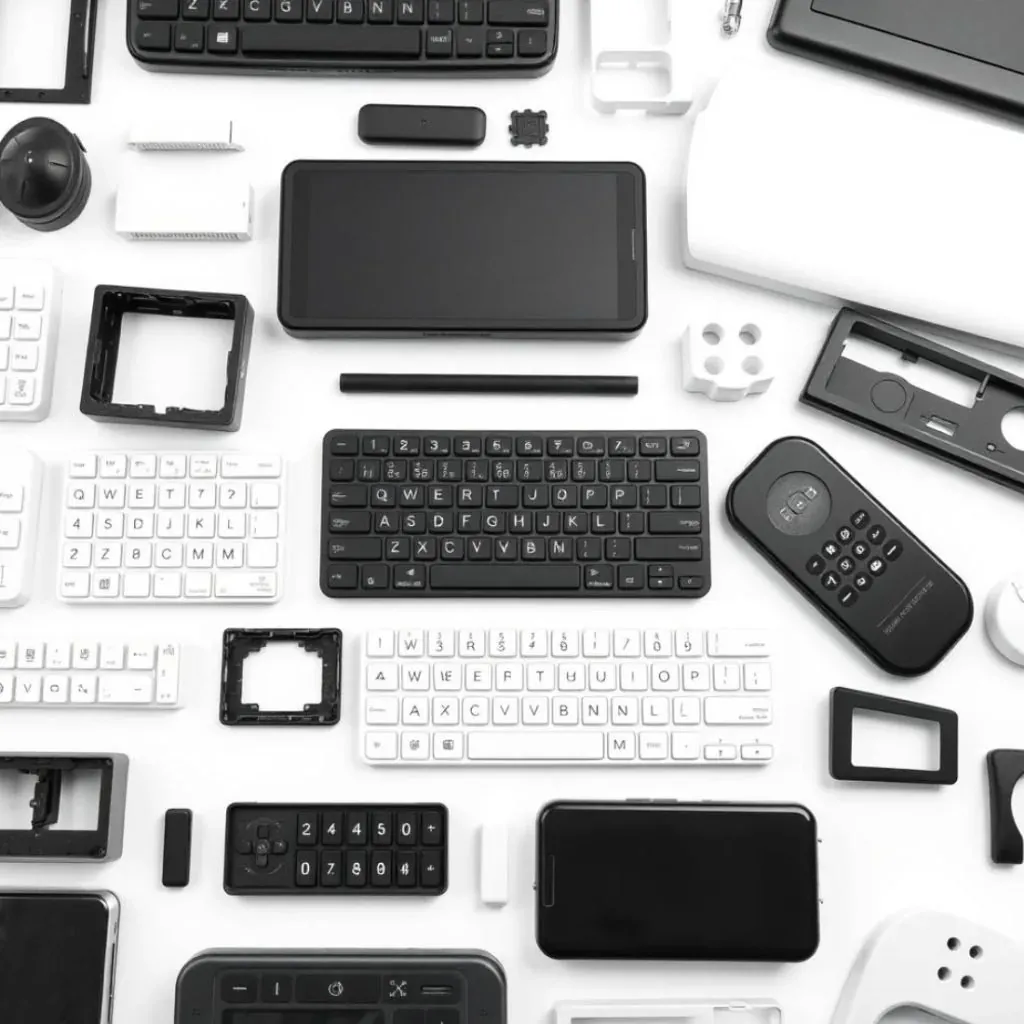

Consumer Electronics
Computer and keyboard housings
Smartphone and tablet cases
Remote controls

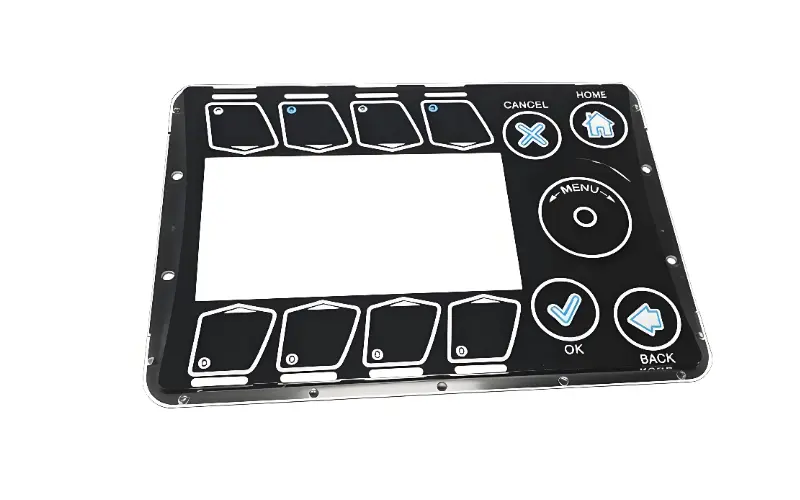

Appliance housings
Gaming console components
Medical Devices
Diagnostic equipment housings
Laboratory instrument components
Medical device enclosures
Surgical tool handles
Monitoring equipment parts

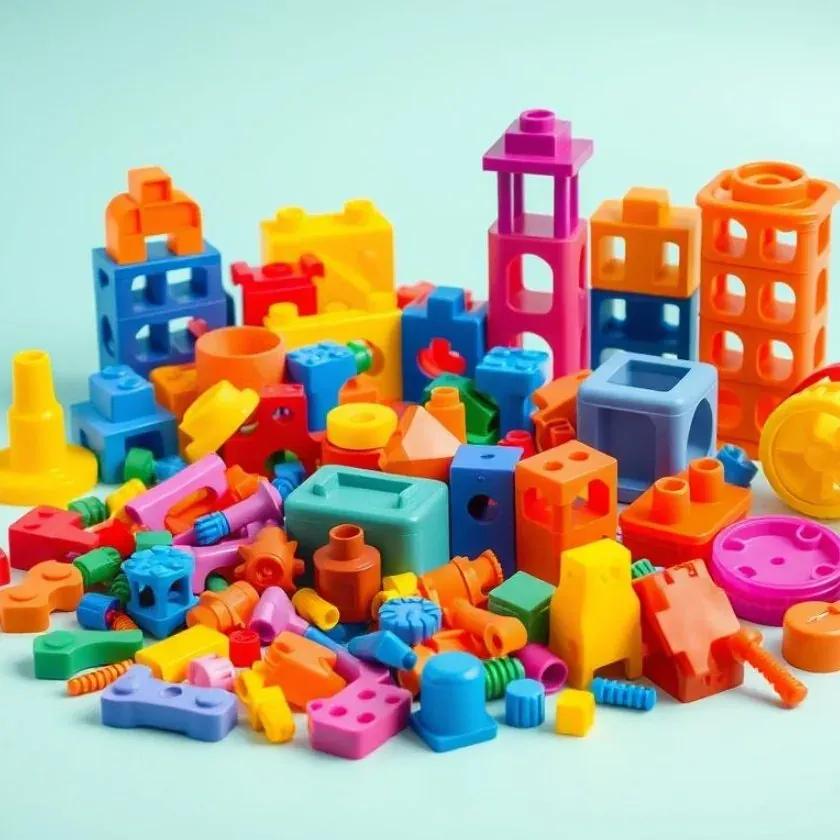

Toys & Leisure
Building blocks (e.g., LEGO®)
Action figures and dolls
Game pieces and controllers
Sporting equipment components
Recreational vehicle parts
ABS Injection Molding FAQs
Why is ABS a popular injection molding material?⊙
ABS offers strength, toughness, impact resistance, and affordability, making it ideal for both functional and aesthetic plastic parts.
What are the advantages of ABS over other plastics?⊙
Compared to many plastics, ABS combines high impact resistance, good surface finish, and ease of machining or secondary processing.
Can ABS parts be textured or finished?⊙
Yes, ABS parts can be textured, painted, chrome-plated, or printed to enhance appearance and functionality.
Can ABS be combined with additives or reinforced materials?⊙
Yes, ABS can be blended with glass fibers, flame retardants, or colorants to improve strength, safety, and design flexibility.
Do you offer custom ABS injection molding services?⊙
Yes, we provide custom ABS injection molding solutions, from part design and prototyping to full-scale production, tailored to meet specific industry requirements.
