±0.01mm
Dimensional tolerance on mold cores (slow-wire EDM)

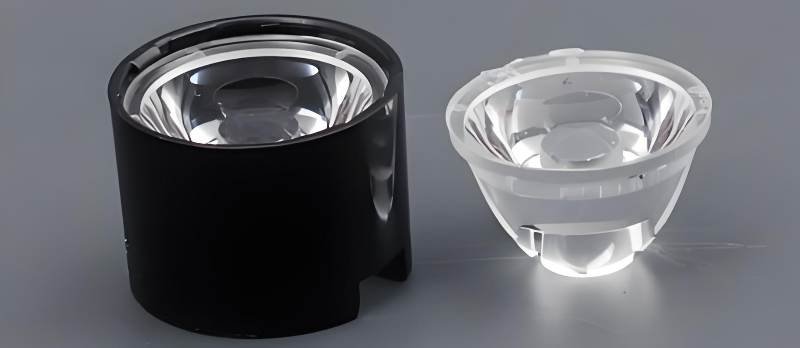

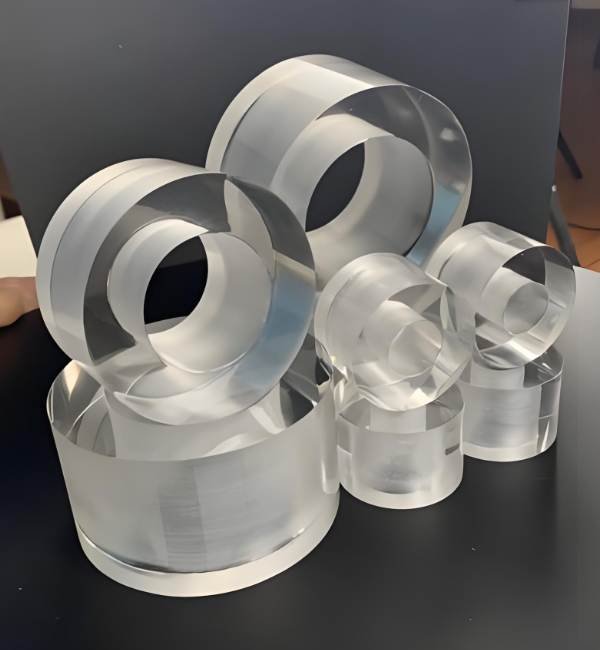

PMMA Injection Molding
for Optical-Grade Acrylic
Parts
What tolerances does Fecision hold on PMMA injection molded parts?
Fecision machines PMMA injection molds to ±0.01 mm on critical dimensions using slow-wire EDM. Molds run for 500,000+ cycles before first resurfacing. Optical-clarity parts achieve light transmittance of ≥92%, meeting ASTM D1003 standards for lens and display applications.
Production-Site Quality ReviewMaterial & Process MatchingProject-Specific DocumentationQuantities Confirmed with QuoteDimensional Inspection
500k+
Mold cycle life before first maintenance event
≥92%
Light transmittance — ASTM D1003, optical lens grade
15 days
Tooling lead time for standard PMMA molds
How It Works
Our PMMA
Injection Molding
Process
Each stage is documented, measured, and approved before the next begins. Acrylic is unforgiving — moisture, temperature, and gate location decide optical quality. We control all three.
DFM Review & Mold Design
Gate location, wall uniformity, and draft angles optimized before steel is cut. PMMA requires 1.5°–3° draft minimum; we flag any geometry that risks sink marks or birefringence.
01Precision Tooling
Cavity steel (S136 stainless or NAK80) machined with CNC ±0.01 mm, then mirror-polished to SPI A1 for optical surfaces. Slow-wire EDM on critical shut-offs.
02Material Pre-Drying

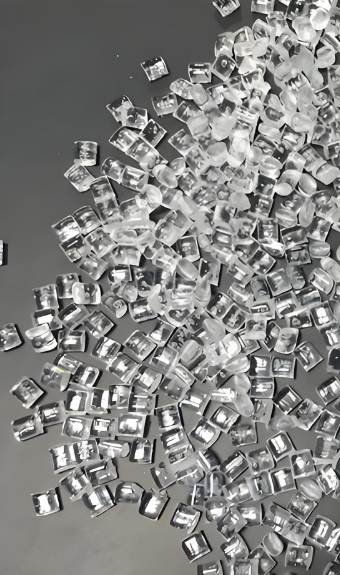

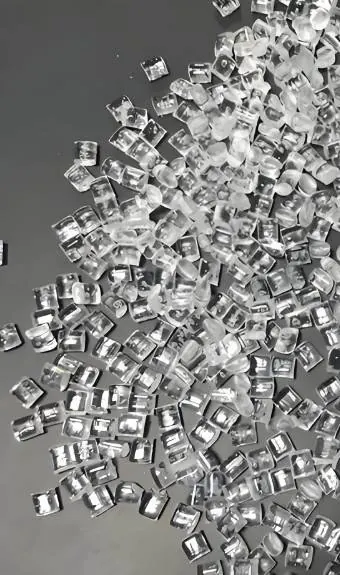

PMMA pellets dried at 80–90 °C for 4–6 hours to moisture content <0.1%. Skipping this step causes silver streaks — a failure mode we have never shipped.
03Injection & Process Control
Barrel temperature 220–260 °C, mold temperature 50–80 °C, injection speed profiled to reduce shear stress on the polymer chain and preserve transmittance values.
04In-Process Quality Inspection
First-article measured on CMM. Every 500-shot sample checked for dimensional conformance. Transmittance tested per ASTM D1003 on optical-grade batches.
05Post-Processing & Packaging
Optional annealing at 70–80 °C to relieve residual stress. Parts individually sleeved in anti-scratch bags. Full traceability record shipped with every order.
06PMMA Grades & Compatible Injection Molding Resins
Not all acrylic performs the same under injection conditions.
We can apply various grades and evaluate alternatives against your optical, mechanical, or chemical-resistance specification.
Optical-Grade PMMA
Plexiglas® 8N / Altuglas® V825T and equivalentsThe standard for lens, light guide plate, and display cover applications. High molecular weight chains produce the optical clarity that defines this grade’s reputation.
| Light transmittance | ≥92% (ASTM D1003) |
| Refractive index | 1.49 (ASTM D542) |
| Tensile strength | 72–80 MPa |
| Vicat softening point | 103–107 °C |
| Mold shrinkage | 0.2–0.8% |
Impact PMMA
Plexiglas® Hi-Impact / Elvacite® blendsCore-shell rubber particles toughened into the PMMA matrix. Notched Izod impact strength increases 3–5× compared to standard grade, at ~8% transmittance cost — the right trade-off for enclosures subject to drop risk.
| Izod notched impact | 20–40 J/m (ASTM D256) |
| Light transmittance | 84–88% |
| Flexural modulus | 1,800–2,200 MPa |
| Mold temp range | 50–80 °C |
HR-PMMA
Röhm Plexiglas® HT — copolymer gradeMethacrylic acid copolymerization raises the Vicat softening point to 115–125 °C. Used in automotive lighting and LED housings where the standard grade warps under continuous thermal load.
| Vicat softening point | 115–125 °C |
| Light transmittance | ≥91% |
| HDT (1.82 MPa) | 100–110 °C |
| Mold shrinkage | 0.3–0.6% |
PC & COC/COP
Makrolon® PC | Zeonex® COC | Zeonor® COPWhen PMMA’s stress-cracking in contact with solvents or its 1.49 refractive index is not optimal, Fecision can tool and run polycarbonate or cyclic olefin grades in the same precision cell.
| PC transmittance | 88–90% |
| COC/COP transmittance | 91–93% |
| COC refractive index | 1.53 |
| COP birefringence | <5 nm/cm |
Quality System
Precision & Quality
Control for Optical Parts
PMMA injection molding fails quietly: a mold surface at Ra 0.02 µm versus Ra 0.05 µm is invisible to the eye until the part enters service under a backlight. We measure at every stage where measurement catches a defect before it ships.
The applicable production-site quality system, cleanliness requirement and inspection scope are reviewed before manufacture. Medical programs specify any ISO 13485 scope, batch traceability and deviation records required for 10 years.
Explore our full injection molding capabilities ⊙±0.01mm
CMM-verified tolerance on mold cavity dimensions
Ra 0.01µm
Optical-surface finish (SPI A1) — profilometer verified
≥92%
Light transmittance measured per ASTM D1003 on every batch
<0.1%
Max moisture in PMMA pellets before barrel entry
Class 10k
Cleanroom molding cell for medical & optical assemblies
10 yr
Batch record retention for medical device traceability
Application Areas
Industries Served with PMMA Injection Molding
Acrylic's combination of optical clarity, UV resistance, and dimensional stability makes it the material of choice across four distinct verticals — each with different tolerance and regulatory demands.
Medical & Diagnostics

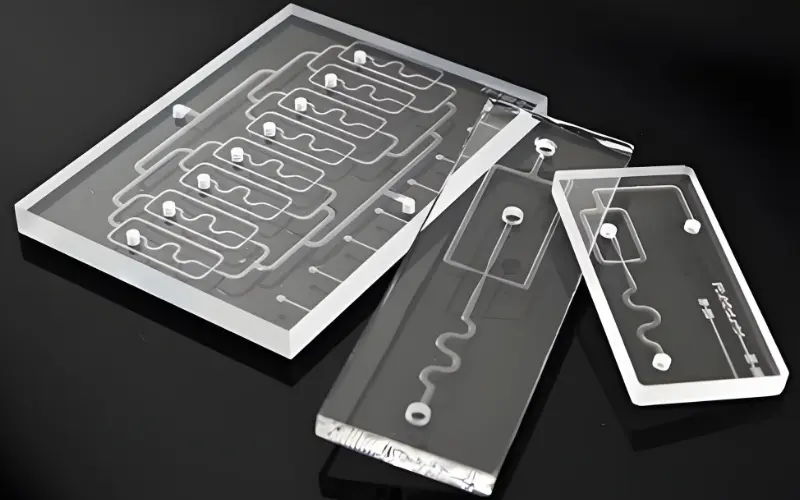

Microfluidic chips, reagent cartridges, and optical flow cells require stress-free PMMA molded in a documented cleanroom environment. The selected production-site scope and required material lot records are reviewed for the medical application.
Microfluidic chipsReagent cartridgesIVD housingsCuvettes
Electronics

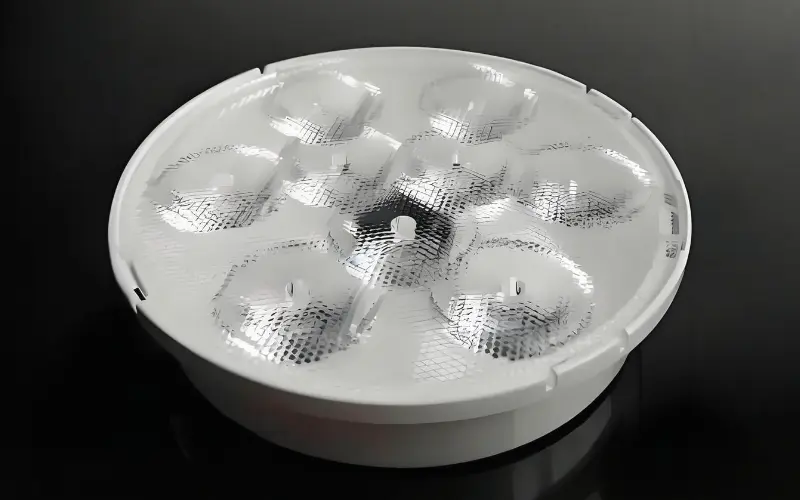

Light-guide plates for LCD backlighting require thickness uniformity within ±0.05 mm across a 200 mm span. Camera lens covers and display bezels benefit from PMMA’s scratch resistance (Rockwell M97) and zero haze characteristics.
Light guide platesOptical sight windowsHUD covers
Aerospace & Defense
Instrument panel lenses and optical sight components demand zero internal stress — birefringence above 10 nm/cm causes polarization artifacts in HUD systems. Our slow-fill, high-mold-temperature process minimizes residual stress at origin.
Instrument lensesOptical sight windowsHUD covers
Industrial Equipment
Flow-rate indicator sight glasses, machine guards, and sensor covers require PMMA’s weatherability (UV stability without coating for >10 years outdoor) paired with the chemical resistance needed in wash-down environments.
Machine guardsSensor coversSight glassesLevel indicators

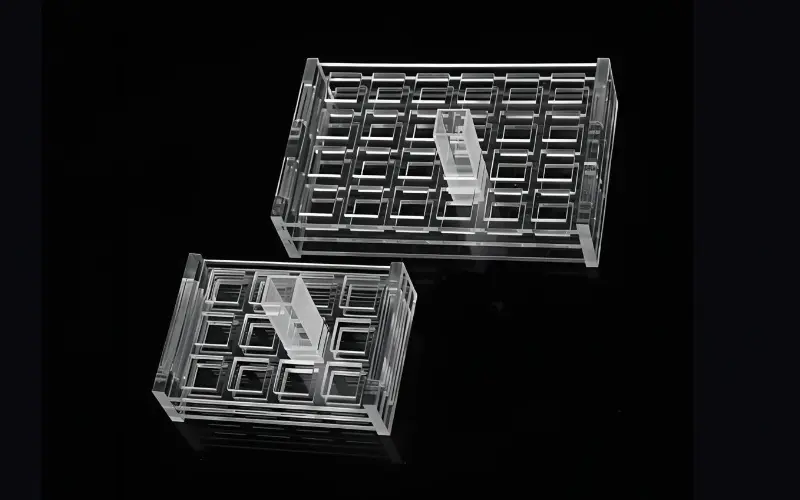

- PMMA (Acrylic) provides optical clarity and UV stability critical for dental tools, diagnostic cuvettes, and optical medical devices.
- Our PMMA medical molding process minimizes internal stress and maintains optical-grade surface finish, meeting the stringent requirements of laboratory and clinical environments. Discover how our medical injection molding expertise transforms PMMA into precision optical components for next-generation diagnostics.
PMMA Injection Molding FAQs
Technical buyers ask the same ten questions. We've answered them with the numbers, not marketing language.
What wall thickness range does PMMA injection molding handle well?⊙
PMMA molds most consistently between 1.5 mm and 4.0 mm. Below 1.5 mm, fill pressure creates shear stress that reduces optical clarity. Above 5 mm, differential cooling introduces sink marks on visible surfaces. For parts outside this range, we model fill simulation in Moldflow before committing steel, at no extra charge on orders above $3,000 tooling value.
How does PMMA compare to polycarbonate for optical injection molding?⊙
PMMA transmits ~92% of visible light versus PC at 88–90%, and has superior UV resistance without additives — PC yellows after 2–3 years of outdoor UV exposure without coating. PC is tougher (Izod impact 640–850 J/m vs. PMMA's 16–32 J/m) and can be molded thinner. For lenses and light guides, PMMA wins on optical performance. For structural covers subject to impact, PC is usually the better choice. We stock both and can machine test shots from the same mold if you need data before committing to a resin.
What surface finish options are available on PMMA molds?⊙
We apply SPI finishes A1 through D3 depending on the surface's functional role. Optical faces — lenses, light-guide emission surfaces, display covers — receive SPI A1 (diamond paste, Ra ≤ 0.012 µm). Non-optical structural surfaces typically receive SPI B2 or C1 to mask ejector-pin witness marks. Textures (VDI 3400, Mold-Tech) are available on non-optical regions at additional cost.
Can Fecision run colored or UV-absorbing PMMA grades?⊙
Yes — we run pigmented, UV-absorbing, and fluorescent PMMA masterbatch formulations. Colored PMMA uses transparent dyes (not pigments) to maintain optical clarity while shifting the visible spectrum. UV-absorbing grades (UVA-stabilized, typically 380 nm cut-off) protect downstream components from solar degradation. Fluorescent grades convert UV to visible emission for industrial lighting diffusers. We require customer-supplied masterbatch or an approved supplier qualification for colored runs to maintain lot-to-lot color consistency.
What is the minimum order quantity (MOQ) for PMMA injection molded parts?⊙
Our standard MOQ for production PMMA parts is 10,000 pieces per run. For engineering validation and first-article inspection, we can run 200–500 pieces from the production mold once tooling is qualified. We do not accept one-time prototype jobs; all tooling projects require a production intent letter or signed NDA/LTA before we cut steel.
How do you prevent silver streaks and optical defects in PMMA parts?⊙
Silver streaks in PMMA are almost always caused by moisture above 0.1% in the pellet. Our process: pellets are dried 4–6 hours at 80–90 °C in desiccant-hopper dryers with continuous dewpoint monitoring (< −30 °C dewpoint). Barrel residence time is controlled to prevent thermal degradation. Gate design avoids jetting — we use fan gates or edge gates sized for laminar flow. First-article parts are inspected under a diffused light box at 500 lux before any run is approved.

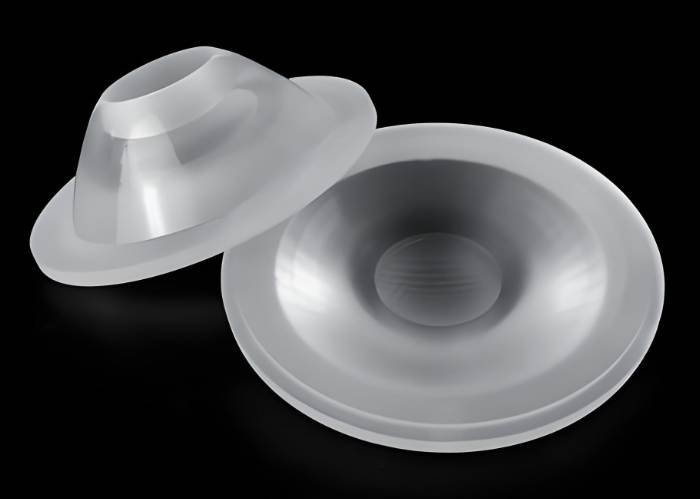

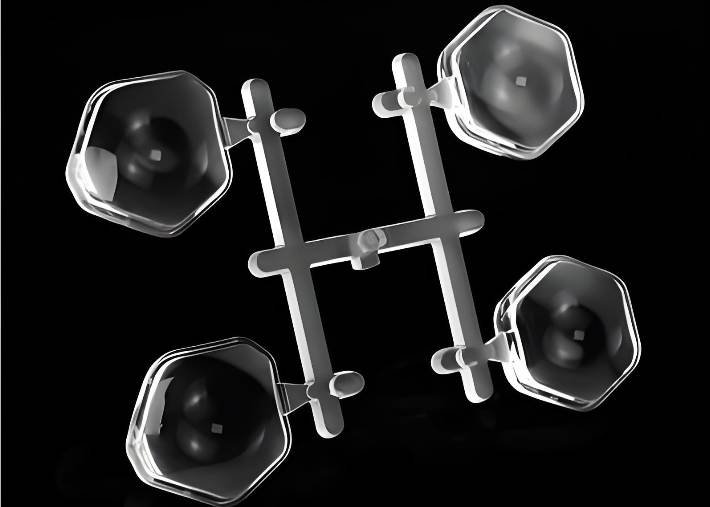

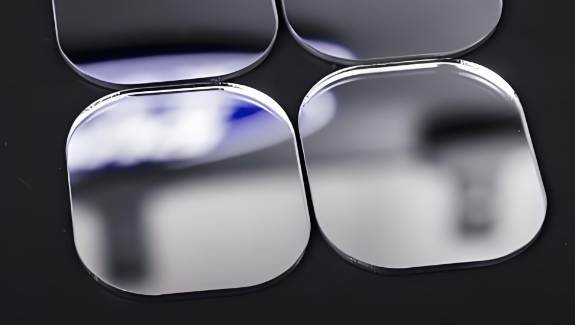

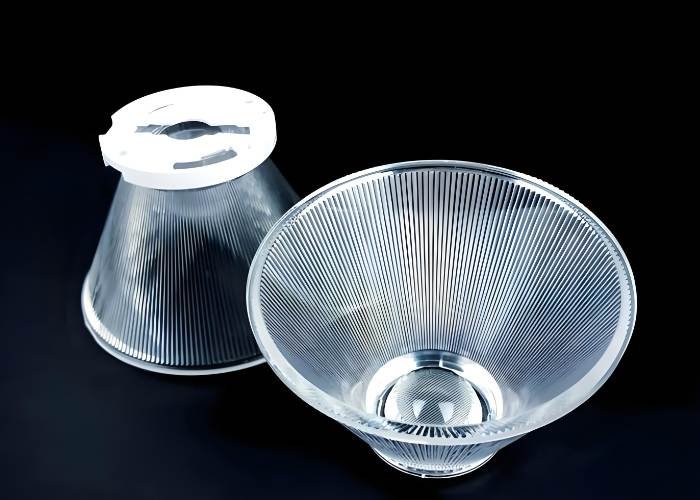

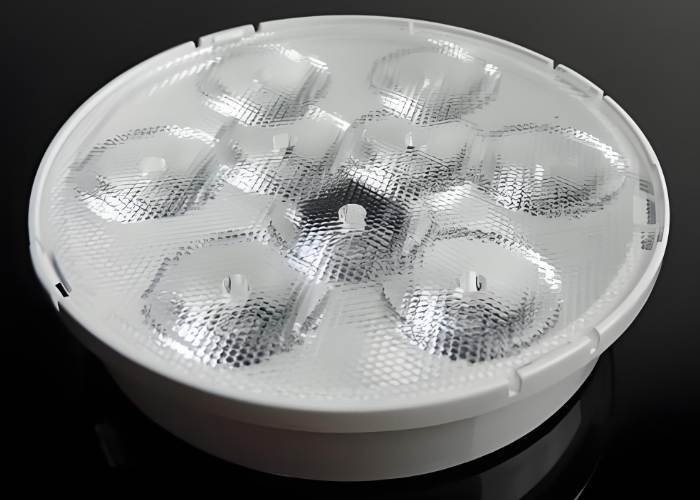

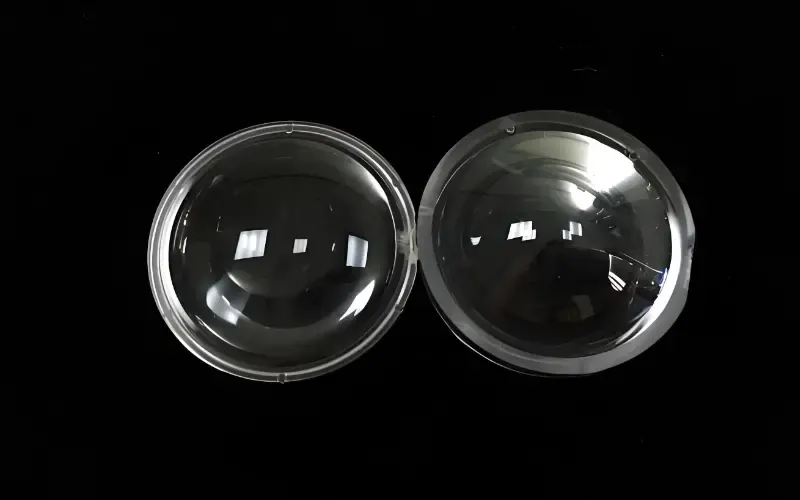

Products Gallery
Start Your PMMA Injection Molding Project Today
Upload your 2D drawing & 3D file. Our engineers review DFM within two business day and return a quote — at no cost.
