Custom HDPE Injection Molding Services
Get custom high-density polyethylene (HDPE) parts manufactured with precision and reliability. Our HDPE injection molding services deliver durable, chemical-resistant components with exceptional performance characteristics for a wide range of applications.
Durable
Cost-effective
Chemical-resistant
What Is High-Density Polyethylene (HDPE)?

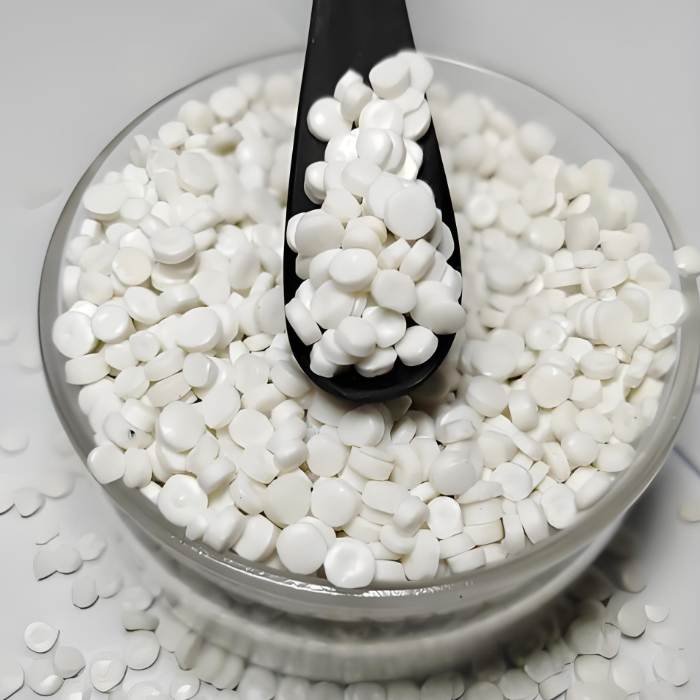

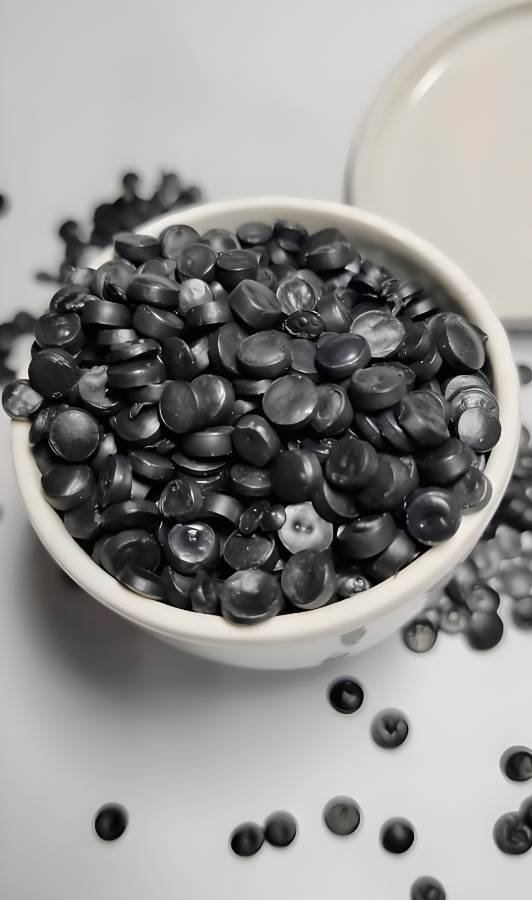

High-Density Polyethylene (HDPE) is a thermoplastic polymer with a high strength-to-density ratio. It’s supplied in pellet form for injection molding and is characterized by its excellent chemical resistance, impact strength, and moisture resistance. HDPE’s molecular structure features minimal branching, resulting in stronger intermolecular forces and higher tensile strength compared to low-density polyethylene (LDPE).
HDPE is widely used in injection molding due to its exceptional processability, with a relatively low melting point between 120°C and 180°C. This thermoplastic offers an excellent balance of properties, making it ideal for applications ranging from consumer products to industrial components.

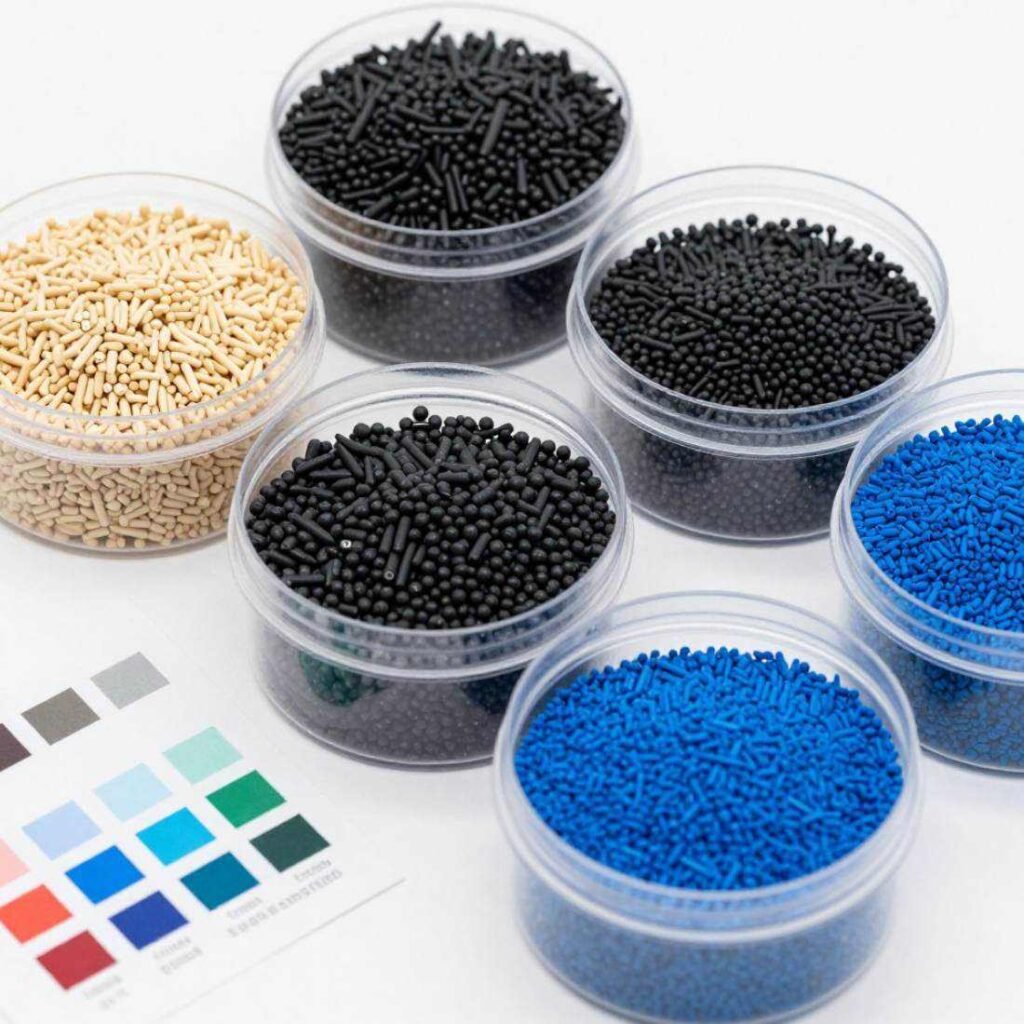

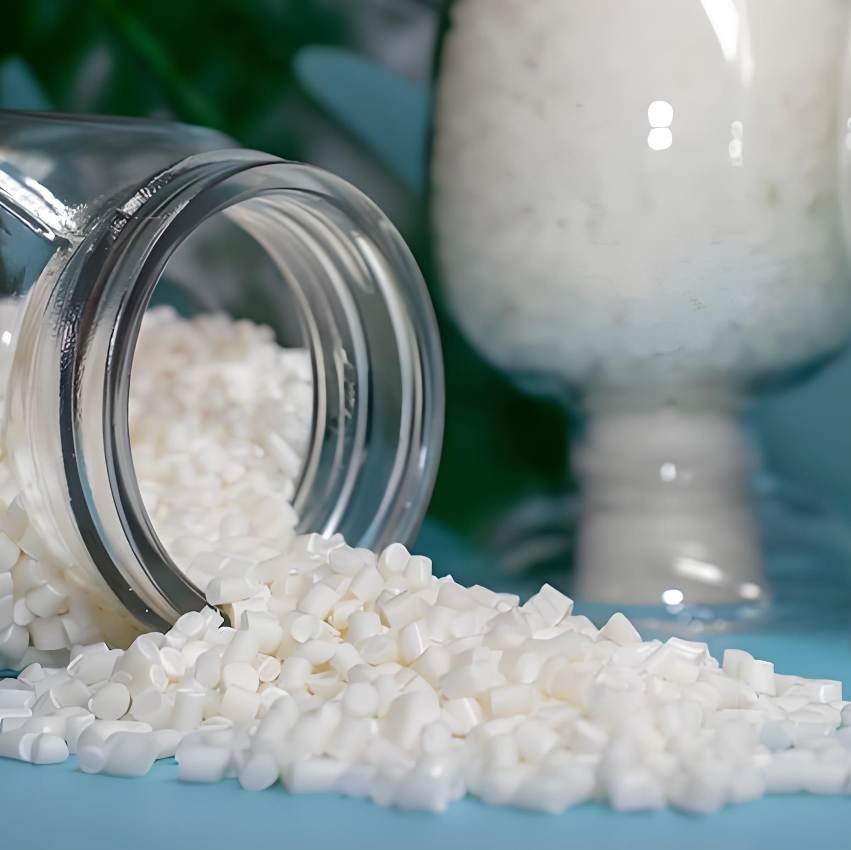

As a versatile material, HDPE can be formulated with various additives to enhance specific properties such as UV resistance, color stability, and impact resistance. Its natural translucent appearance can be modified with colorants to achieve virtually any color specification required for your application.
Injection Molded HDPE Material Properties
Understanding the material properties of HDPE is essential for determining its suitability for your specific application.
Below are the key characteristics that make HDPE an excellent choice for injection molding:
| Chemical Formula | (C₂H₄)n | Stable molecular structure |
| Density | 0.94-0.97 g/cm³ | Lightweight yet strong |
| Melting Point | 126-135°C | Efficient processing |
| Tensile Strength | 20-38 MPa | Excellent load-bearing capability |
| Impact Resistance | High | Durable under stress |
| Chemical Resistance | Excellent | Resistant to acids, bases, and solvents |
| Water Absorption | Maintains dimensional stability | |
| UV Resistance | Poor (without additives) | Can be enhanced with stabilizers |
| Max Service Temperature | 70-80°C | Suitable for most applications |
These properties make HDPE injection molding services ideal for producing parts that require excellent chemical resistance, good impact strength, and lightweight characteristics. Our engineering team can help you determine if HDPE is the right material for your specific application requirements.
Advantages and Disadvantages of HDPE Injection Molding
Advantages of HDPE
-
Excellent Chemical Resistance Highly resistant to acids, bases, and many solvents, making it ideal for containers and chemical storage applications.
-
High Impact Strength Provides exceptional durability and resistance to cracking under stress or impact.
-
Moisture Resistance Very low water absorption rate helps maintain dimensional stability in humid environments.
-
Lightweight High strength-to-weight ratio makes it ideal for applications where weight reduction is important.
-
FDA Compliance Certain grades are FDA-approved for food contact applications.
-
Cost-Effective Relatively low material cost compared to many engineering plastics.
-
Recyclability Highly recyclable, supporting sustainable manufacturing practices.
Disadvantages of HDPE
-
Temperature Limitations Lower heat resistance compared to engineering plastics like polycarbonate or nylon.
-
UV Sensitivity Poor resistance to UV radiation without additives, leading to degradation in outdoor applications.
-

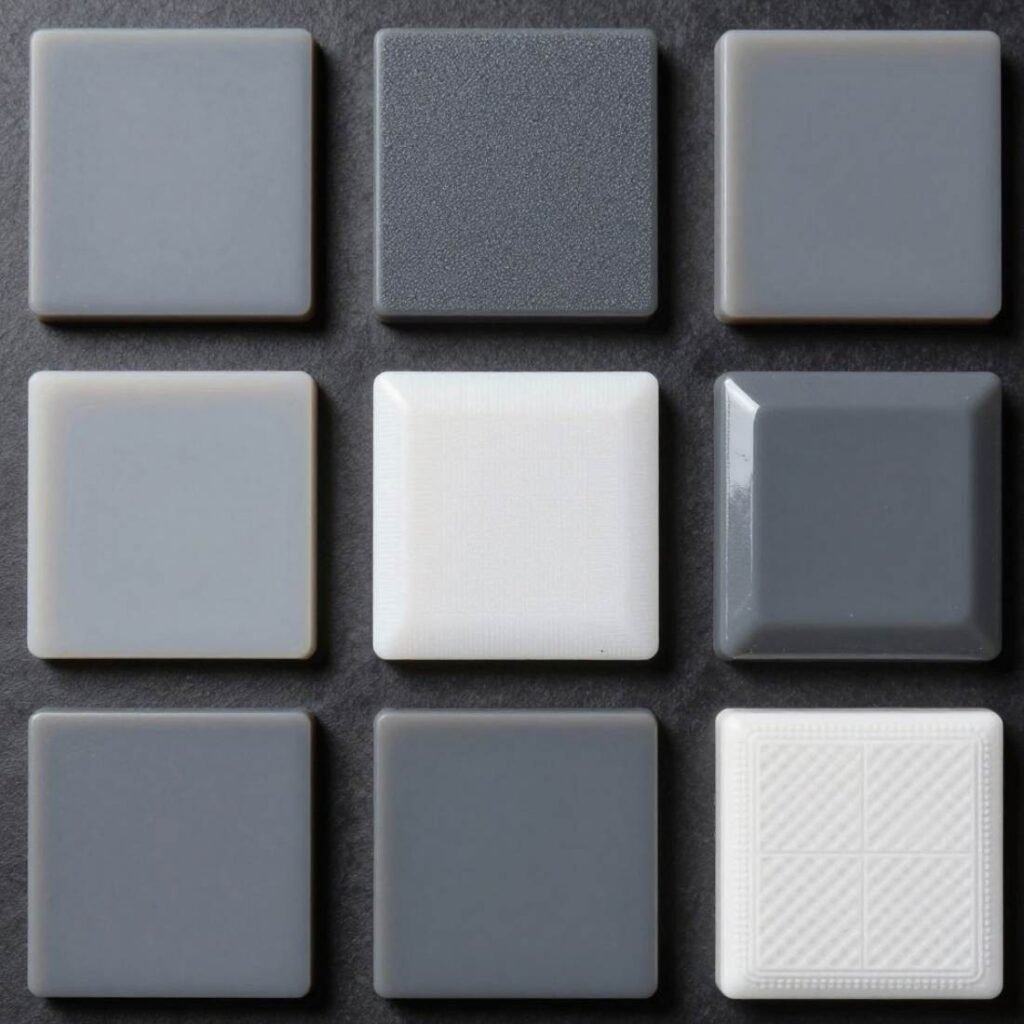

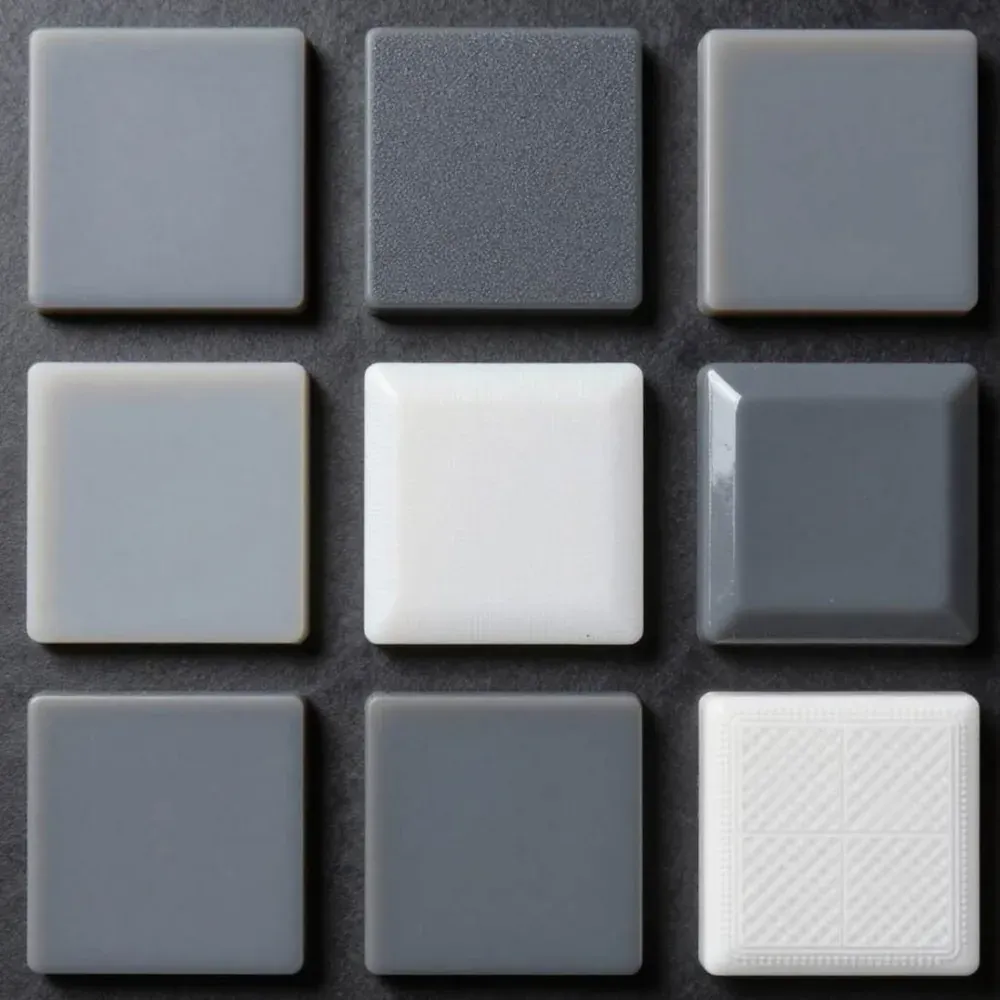

Surface Finish May not achieve high-gloss finishes as easily as some other plastics.
-
Shrinkage Higher shrinkage rates (1.5-4%) can affect dimensional accuracy in precision applications.
-
Environmental Stress Cracking Susceptible to cracking under certain chemical exposures combined with stress.
-
Bonding Difficulty Challenging to bond with adhesives due to its low surface energy.
