A subtle tweak in alloy chemistry can multiply fatigue life many-fold. This shows that alloy casting is the essential technology driving performance inside aerospace turbines, EV housings, and surgical tools. You’ll find these optimized alloys everywhere.
Below you’ll learn what alloy casting really means, its key features that matter, a handy metals-at-a-glance table, and the primary casting routes from alloy die casting to investment casting alloys. Our goal is to equip you with the knowledge to select the perfect metal and process for your next engineering challenge.

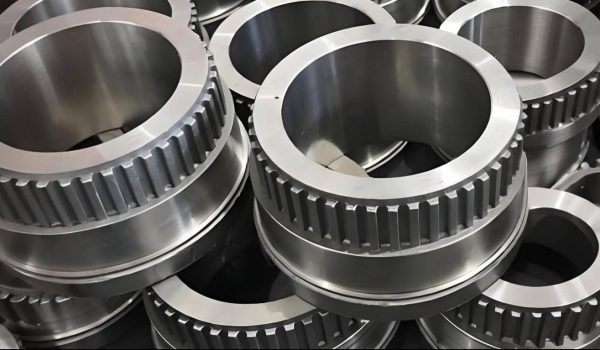

What Is Alloy Casting?
Alloy casting is the process where two or more metallic elements—and sometimes controlled non-metals—are melted, mixed, and then poured or injected into a mold cavity. The material solidifies into a component that is very close to its final shape, often called a near-net part. This method is all about making shapes from liquid metal.
When compared to pure metals, alloys allow engineers to tailor several characteristics. You can tune the strength-to-weight ratio, improve creep resistance, enhance corrosion performance, and boost castability. All of these adjustments happen before the first pour, giving you full control.
The technique itself is ancient, but modern methods have greatly improved it. Today’s processes—like high-vacuum investment casting alloys or high-pressure alloy die casting—hold incredibly tight tolerances. These advanced techniques enable lightweighting strategies and performance that simple pure metals just cannot offer.
Alloy Casting Features
You’ve seen how casting works, but why use an alloy instead of a pure metal? Let’s dive into the five biggest advantages these special features offer you.
Superior Fluidity for Thin-Wall Filling
Molten aluminium alloy casting, including A356, has excellent flow characteristics that allow it to flow farther than pure aluminum before freezing. This enhanced fluidity is very useful for modern designs since it permits the manufacture of incredibly thin-walled parts, including laptop covers, that can be down to a half-millimeter thick or less using High-Pressure Die Casting (HPDC).
The ability to fill narrow areas is another factor that ensures a geometry retains a complex shape perfectly. This feature is a game-changer for reducing the weight of your parts. Besides, thin-wall filling is key to creating lighter, yet still strong, electronic enclosures and vehicle components that save energy.
Tailored Mechanical Strength
The engineering alloy steel casting process commonly produces tensile strength levels much higher than plain carbon castings, if elements like nickel, chromium, or molybdenum are added. Because of this ability to optimize mechanical strength, you do not have to give up performance for castability.
This precise control over strength is essential for applications that undergo significant stress. You get robust components without the high cost or machining effort of forging. The final part is engineered for your specific stress and load requirements from the start.
Built-In Corrosion & Oxidation Resistance
Nickel alloy castings, such as Monel and Inconel, can produce a protectively adherent oxide layer when heated to high temperatures. That intrinsic property provides excellent resistance to oxidation. Similarly, cobalt alloy castings exhibit improved resistance to hot-salt pitting—one of the primary problems associated with demanding function parts such as gas-turbine shrouds.
These resistance properties mean your components will last longer and perform better in harsh conditions. Whether it’s saltwater exposure or extreme heat, the alloy chemistry provides the necessary defense. You save time and cost on complex external coatings.
Machinability & Secondary-Operation Savings
Free-cutting zinc alloy casting grades, such as ZA-8 and ZA-12, are specially formulated for easy machining. They contain small beta-phase islands that help break up metal chips during cutting. This property significantly reduces the cycle times for CNC machining.
Better machinability directly translates to secondary-operation savings for you. The material cuts cleaner and faster than tougher metals like yellow brass, which can further drop your production costs. This is very important for high-volume parts with tight tolerance features.
Dimensional Stability Under Thermal Cycling
Aluminum alloy castings with small additions of copper and magnesium show much less growth after repeated freeze–thaw cycles. This characteristic is known as dimensional stability. It is incredibly important for automotive alloy castings used in engine cradles and other temperature-sensitive applications.
When your part is subjected to extreme temperature swings, you need it to maintain its exact shape. This stability prevents stresses, fatigue, and potential failure in the field. It’s a silent, essential property that ensures the long-term reliability of your critical components.
Ready to move from theory to production? If you have a part design that needs these high-performance features, get a fast quote from Fecision today. We specialize in turning these complex alloy needs into reliable, finished hardware quickly.

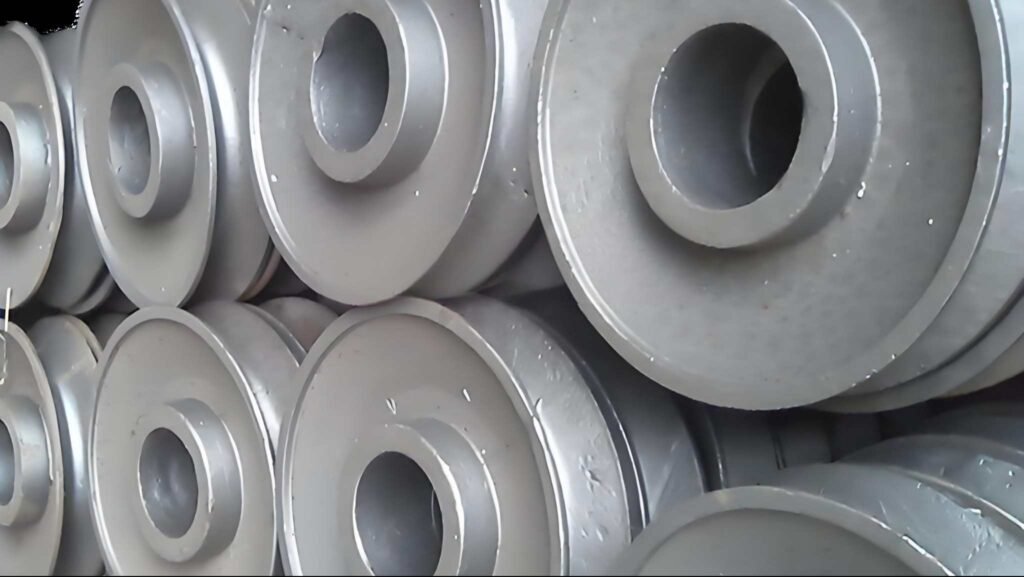

Metal Materials Used in Alloy Casting
The alloy selected will directly determine everything: your casting method, tooling costs, and overall part performance. This is why matching the metal to its service environment is so important. Make sure you also pick the process that is best suited for that specific alloy to guarantee a successful outcome.
For instance, Aluminum dominates when you need critical weight savings. Zinc usually offers the easiest route to high-volume precision. However, if heat or harsh chemicals are the main threat, you should shift your focus entirely to nickel and cobalt alloys.
Choosing the right metal is truly your first critical step. To help you quickly compare options, here is a handy chart of the alloy families you’ll see most often.
| Alloy Family | Typical Grade | Key Elements | Casting Process Fit | Strength (HT) | Notes |
| Aluminum Alloys | A356, ADC12 | Al-Si-Mg | HPDC, LPDC, investment | Moderate–high | Light, a favorite for alloy die casting |
| Zinc Alloys | ZA-8, ZA-27 | Zn-Al-Cu | Hot-chamber die casting | Moderate | Low melt, achieves tight tolerances easily |
| Magnesium Alloys | AZ91D, AM60 | Mg-Al-Zn | HPDC, thixomolding | Moderate | One-third lighter than Aluminum, very light |
| Nickel Alloys | IN713C, Monel 400 | Ni-Cr-Al | Investment, vacuum | High | Essential for jet-engine turbine vanes |
| Cobalt Alloys | Stellite 6, Co-Cr-Mo | Co-Cr-Mo | Investment casting alloys | High | Used in surgical implants and wear faces |
| Alloy Steels | 8620, 4140 | Fe-C-Cr-Mo | Sand, investment | High | Great for robust gears and mining wear parts |

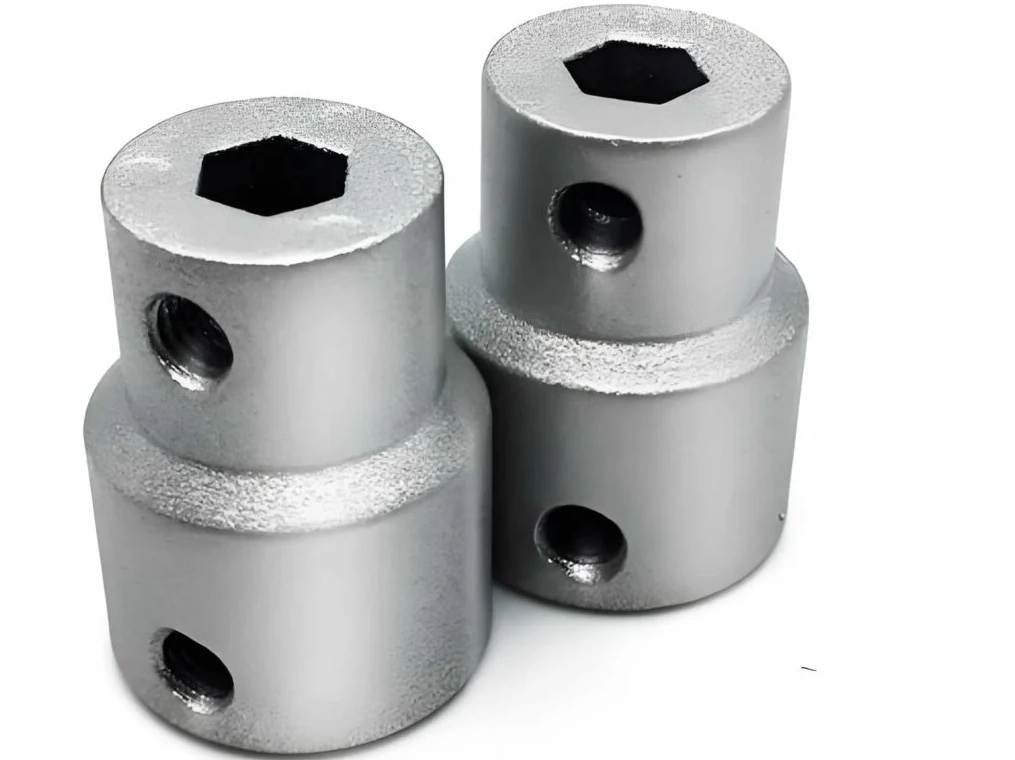

Types of Alloy Casting & Applications
With a clear material list in hand, let’s see these alloys in action. We’ll look at where each metal performs best and the casting method it relies on.
1. Zinc-Base Alloy Casting – the Low-Heat Route to Precision
Zinc-base alloy casting is dominated by the hot-chamber alloy die casting process. The fluidity of the metal at relatively low melt temperature (generally 410°C – 450°C) can minimize wear and tear on the die tooling, ultimately saving you money. Cycle times are significantly short, attributed mainly to the fluidity as well.
This zinc-base alloy is utilized in basically everything we use on a daily basis: zip-pulls, small electrical connectors, AA-battery sleeves, and fashion jewelry. In industry, you will find them in automotive door-lock barrels, medical slide rails, various brackets, and marine-switch housings. They offer excellent machinability and are easy to plate, though their creep strength lessens if the service temperature rises much past ordinary engine-bay levels.
2. Tin-Base Alloy Casting – the Soft Metal with a Quiet Touch
Tin-base alloy casting often uses sand or graphite molds for creating parts with thicker cross-sections. Centrifugal casting is sometimes used for bearing applications. Importantly, the re-melt temperature for these alloys is one of the lowest in the entire field of alloy casting, making it very energy efficient.
Everyday uses include tin-coated food-safe cans, the metal used in organ pipes, and the solderable coatings on copper wire. Industrial applications feature bearing linings for heavy presses, hot-dip layers on steel sheet, and super-conducting magnet stabilizers. They are superb for corrosion resistance against distilled water and mild acids, but remember that these alloys are simply too soft for any heavily load-bearing components.
3. Copper-Base Alloy Casting – Sound, Colour and Conductivity
Copper-base alloy casting is versatile, using investment casting alloys for musical instruments like bells and trumpets. Sand casting is typically used for heavy-duty valves, while continuous casting creates bar stock. The alloys have a warm-gold color and extremely high thermal and electrical conductivity, which is very beneficial.
You will find these alloys in common items such as bronze bells, trumpet bodies, ship gongs, and car radiator fins. From an industrial perspective, these are used in plumbing elbows, saltwater pump impellers, pressure regulators, and heavy-duty switch-gear. While they are extremely conductive, you must note that the mechanical strength drops dramatically once the operating temperature is up into the red-heat area.
4. Aluminum-Base Alloy Casting – the All-Round Lightweight Workhorse
Aluminum-base alloy casting is the ultimate lightweight solution. High-pressure alloy die casting creates thin-wall electronics, while low-pressure or gravity-fed casting is used for sturdy wheels. Investment casting is reserved for high-precision aerospace brackets. It’s the versatile choice for balancing strength and low mass.
Common parts include food-tray lids, window frames, and easy-open can ends. The alloy powers industry in chassis nodes, massive EV battery enclosures, outboard motor housings, and aircraft seat tracks. Its superb fluidity lets the metal easily fill sub-millimeter ribs, and post-cast work like machining and anodizing your finished parts is quite straightforward.
5. Lead-Base Alloy Casting – Density and Quiet Durability
Lead-base alloy casting typically relies on simple gravity or low-pressure molding techniques. Steel-shot cores are often used during casting to counteract the material’s high density. This process is chosen when density is the most crucial, desired characteristic for the component you are creating.
Its most common everyday use is in automotive battery grids and for creating ballast blocks and radiation-shield containers. Industrially, it’s used for petrol-tank filler necks, roofing flashings, and chemical plant linings. The material is self-lubricating and highly corrosion-resistant in sulfuric environments, but you must know that its mechanical strength is the absolute lowest of all the major casting alloys.
6. Magnesium-Base Alloy Casting – the Lightest Structural Option
Magnesium-base alloy casting employs hot-chamber alloy die casting for thin covers and thixomolding for a safer, zero-splash process. Sand casting is primarily used for prototyping parts like gearboxes. Magnesium is an excellent metal choice because it is one-third the weight of aluminum and has similar stiffness-to-weight properties.
The alloys can be found in modern devices, including laptop shells, camera chassis, and power-tool housings. In the automotive industry, it’s used for drone arms, steering column brackets, and city car seat frames. While very light, you need to apply a protective surface treatment to your parts to effectively control and prevent outdoor corrosion from affecting the component.
7. Nickel & Cobalt Alloy Casting – the Heat-Resistant Elite
Nickel and cobalt alloy casting often uses vacuum investment casting alloys to produce single-piece turbine blades. For example, reactor tubes are made from centrifugal casting. These alloys are built for extreme performance and designed to operate in extreme conditions.
Everyday use is limited, but you’ll find them in jet-engine vanes, the femoral heads of hip-joint replacements, and the valve seats in rocket motors. Industrial homes include high-powered generation turbines, deep down-hole drilling tools, and life-critical biomedical implants. They retain strength long past the red-heat threshold, but be ready for high raw material costs and increased casting difficulty.
Conclusion
Alloy casting remains the quickest route to customizing your metal part’s performance—whether that’s superior strength, low weight, or heat resistance. You must match the right alloy family (like Al or Ni) to the best process (HPDC or investment). This key decision sets your cost and properties, far more than any machining you do later.
