Plastic injection molding is a popular and flexible way to make many different products, usually at a good price. However, like any method, there are other options that might work better for certain needs. One of these is reaction injection molding. It can sometimes offer better results or lower costs than regular plastic injection molding.
If you are not familiar with reaction injection molding, let’s break it down. We will explain reaction injection molding vs injection molding in detail. We will also go through the steps involved in each process to help you decide which one fits your needs best.
What is Reaction Injection Molding?
RIM molding is a way to make parts using a type of material called thermoset foam. Thermoset means the material hardens through a chemical reaction. It is kind of like how epoxy glue works.
Two liquids, called polyol and isocyanate, are mixed together in Reaction Injection Molding. When this mix touches a warm mold, it reacts and heats up, then it starts to harden. The mix is pushed into the mold at low pressure, where it expands and cures inside.
This material can’t be melted and reused like plastics made with regular injection molding.
There are other molding methods that use different plastics once they harden. It includes thermoforming, compression molding, extrusion molding, and roto molding. However, RIM molding is special because it uses this chemical reaction to create strong, lightweight parts.
Advantages of Reaction Injection Molding
Here are some key advantages of RIM reaction injection molding you need to know.
Works at Lower Temperatures and Pressures
One big benefit of reaction injection molding is that it uses much lower heat and pressure compared to regular injection molding. This is because the liquids used in RIM are thin and flow easily, like motor oil. When the two parts (polyol and isocyanate) mix, they can fill even detailed molds without needing high heat or strong pressure to shape and harden the part.
Lower Tooling Costs
The molds can be made from aluminum instead of steel because RIM works with lower temperatures and pressures. Aluminum molds cost less to make and are easier to change if needed. This means the overall cost to create the tools for RIM is usually much cheaper than for other molding methods.
Ability to Encapsulate Items
One great thing about reaction injection molding (RIM) is that it can mold parts around other items without hurting them. Because RIM uses lower heat and pressure, it can safely include things like antennas, circuit boards, magnets, batteries, metal rods, and threaded inserts right inside the part.
This “encapsulation” helps to protect delicate pieces. This makes it harder to steal parts and reduces visible seams on the finished product. That is why being able to trap parts inside during molding is useful for many different products.
Fewer Parting Lines
Another benefit of reaction injection molding is that it helps make parts with fewer seams or lines where pieces come together. It reduces the need for many separate pieces because RIM can mold bigger and more complex parts and even include other items inside.
Fewer parting lines mean the part looks cleaner and nicer, does not collect dust in cracks, and is stronger since there are fewer weak spots. This makes the final product both better-looking and more durable.
What is Injection Molding?

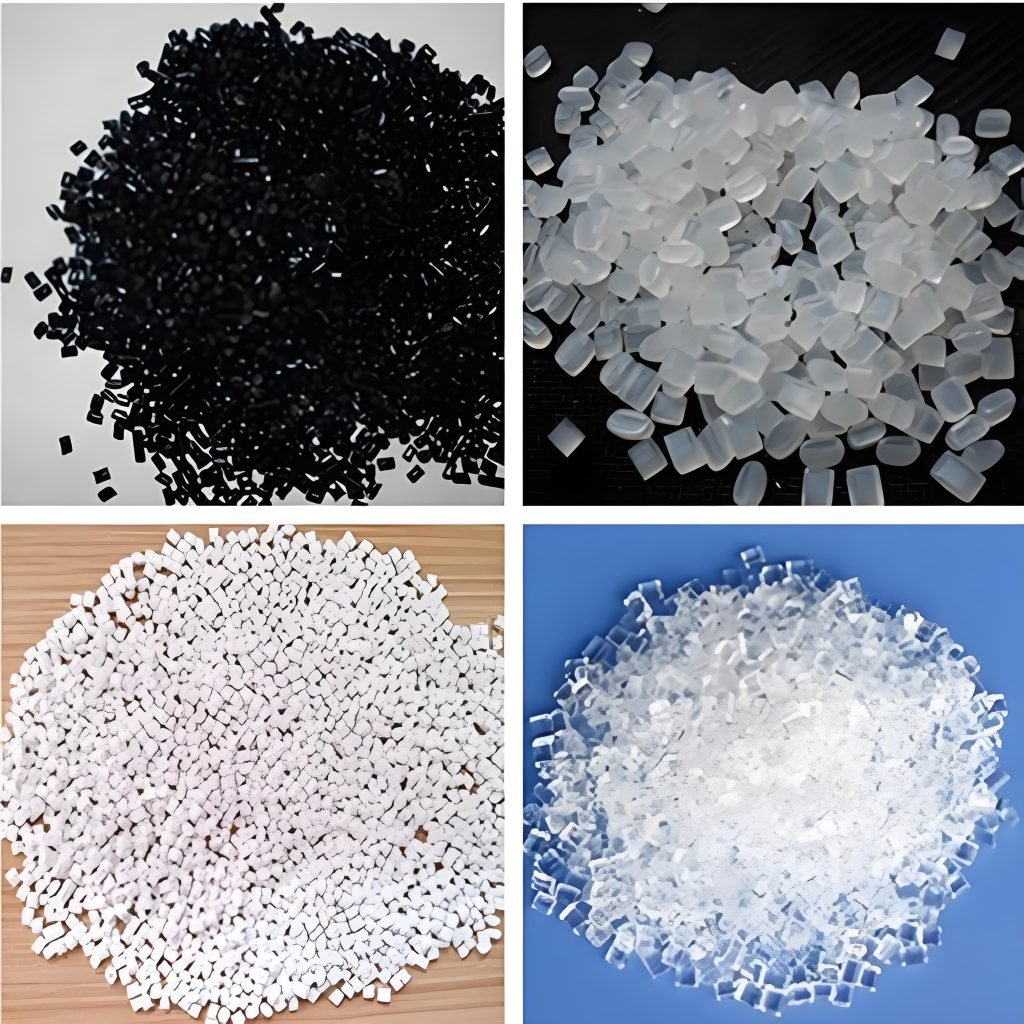

Injection molding is a way to make plastic parts by melting plastic pellets until they become liquid. This melted plastic is then pushed under pressure into a mold to take the shape you want.
It might sound simple, but it is a very popular method. This is because it can quickly make lots of plastic parts at a low cost. Moreover, it can create even very detailed and complex shapes with ease.
Advantages of Injection Molding
Here are the upsides of injection molding to know:
Fast and Efficient Production
Once the molds are ready, injection molding is very quick. Sometimes it helps in making a part in as little as 10 seconds. It is great for making medium to large numbers of parts, depending on the molds used.
Fengchi can speed things up even more by using molds that make several parts at once.
Low Cost Per Part
When you make a lot of parts, the cost for each one is very low. Even for medium amounts, you can save money by using aluminum molds instead of steel ones.
Consistent Quality
Injection molding can produce the same part again and again with very little difference each time. This is perfect when you need parts that fit well and work reliably. This is true even in large quantities.
Lots of Material Choices
You can pick from many types of plastic depending on what you want your part to do. It also offers molding with liquid silicone rubber.
You can even add fillers to the material to make parts stronger, and there are many color options. You can find the best choices for your part as per your needs with this method.
Reaction Injection Molding Vs. Injection Molding: Which One is Better?
When deciding which molding method to use for your custom plastic parts, it helps to think about what your project needs most.
- If you are making large and lightweight parts with complicated shapes and want to keep the cost of molds low, reaction injection molding (RIM) is a good choice. It works well when you don’t need to produce huge quantities.
- On the other hand, if you need to make a lot of smaller and simpler parts quickly, then injection molding is usually the better option. It is designed for high-volume production and can deliver parts fast. Thinking about these factors will help you pick the right molding process for your project.
Get in Touch with Fecision for Custom Molding Solutions
At Fecision, we provide top-quality RIM and injection molding for many. We offer low prices for each part and quick turnaround times. These features help us in making strong and reliable custom plastic parts affordable and easy to get for customers everywhere.
We also offer expert guidance and full-service support for both reaction injection molding and injection molding. Whether you are creating a prototype or scaling up to full production, our team can help you select the best approach based on your specific needs and budget.
So, you must contact Fecision for custom molding solutions that stand out.
