Custom PEEK Injection Molding Service

Fecision delivers precision PEEK injection molding services for demanding applications requiring exceptional thermal stability, chemical resistance, and mechanical strength. Our advanced manufacturing capabilities ensure your high-performance components meet exact specifications while maximizing PEEK’s unique properties.

High-strength

Heat-resistant

Biocompatible

PEEK Injection Molding at Fecision

PEEK injection molding service provides high-performance plastic parts with exceptional strength, heat resistance, and chemical stability. Ideal for aerospace, medical, automotive, and electronics industries, it ensures precision, durability, and reliability in demanding applications.

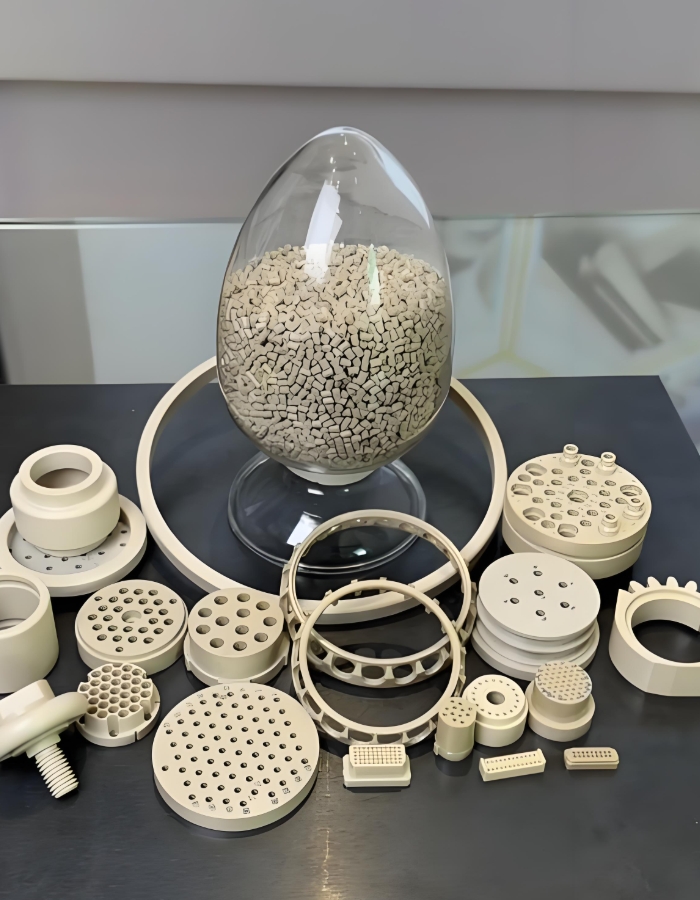

Key Properties of PEEK Material

Property	Value	Comment
Density	~1.30 g/cm³	Lightweight compared to metals, ideal for weight-sensitive applications.
Tensile Strength	90–100 MPa	Excellent load-bearing capacity for structural parts.
Flexural Strength	~140 MPa	High resistance to bending under stress, ensuring stability.
Elastic Modulus	3.6–4.0 GPa	Provides stiffness and dimensional stability under load.
Elongation at Break	20–40%	Balanced toughness with good ductility, not brittle.
Hardness (Rockwell M)	~99	Scratch-resistant and durable in wear-intensive uses.
Melting Point	~343 °C	Very high, suitable for extreme temperature applications.
Continuous Service Temperature	Up to 250 °C	Maintains strength and stability in long-term heat exposure.
Flammability Rating	UL94 V-0	Naturally flame-retardant, safe for aerospace, automotive, and electronics.

Exceptional thermal stability (continuous use up to 260°C)
Superior chemical resistance to most solvents and acids
Excellent mechanical strength and stiffness
High wear resistance and low friction coefficient
Outstanding dimensional stability
Inherent flame retardancy (UL 94 V-0 rated)
Biocompatibility for medical applications
Excellent electrical insulation properties

Unfilled PEEK – Maximum chemical resistance
Carbon fiber-reinforced PEEK (30%) – Enhanced strength and stiffness
Glass fiber-reinforced PEEK (30%) – Improved electrical insulation
PTFE/Graphite-filled PEEK – Reduced friction coefficient
Medical-grade PEEK – Implantable and biocompatible
Custom formulations – Tailored to specific applications

Specification	Standard Capability	Enhanced Capability
Dimensional Tolerance	±0.005″ (0.127mm)	±0.001″ (0.0254mm)
Surface Finish	SPI-B2 (16-32 RMS)	SPI-A2 (1-2 RMS)
Wall Thickness (min)	0.020″ (0.508mm)	0.010″ (0.254mm)
Part Size	Up to 10″ (254mm)	Up to 24″ (610mm)
Gate Vestige	0.003″ (0.076mm)	0.001″ (0.0254mm)
Mold Temperature	175-200°C	Customized per application
Quality System	ISO 9001:2015	ISO 13485, AS9100

Benefits of PEEK Molding

Exceptional thermal stability up to 260°C
Outstanding chemical resistance
Superior mechanical properties
Excellent wear and fatigue resistance
Significant weight reduction vs. metals
Complex geometries possible
Biocompatibility for medical applications
Excellent electrical insulation
Inherent flame retardancy
Long service life in harsh environments

Limitations to Consider

Higher material cost than standard polymers
Requires specialized processing equipment
Longer cycle times than standard polymers
Sensitive to processing parameters
Requires careful mold temperature control
Proper drying critical to quality
Contamination prevention essential
Limited UV resistance without additives

PEEK Injection Molding Applications

Industries We Serve

PEEK's exceptional properties make it ideal for demanding applications across multiple industries.
Our expertise in PEEK injection molding serves diverse sectors requiring high-performance components.

Medical & Healthcare

Implantable devices
Dental applications
Drug delivery systems
Sterilizable equipment

Request Quote

Electronics

Electrical connectors
Insulator components
Semiconductor equipment
Circuit board elements

Request Quote

Aerospace & Defense

Electrical connectors
Brackets and clamps
Thermal insulation components
Fuel system components

Request Quote

Industrial & Oil/Gas

Valve components
Bearings and bushings
Seals and gaskets
Pump components

Request Quote

PEEK Injection Molding FAQs

What makes PEEK different from other engineering plastics?

PEEK stands apart from other engineering plastics due to its exceptional combination of properties: extremely high temperature resistance (continuous use up to 260°C), outstanding chemical resistance to most solvents and acids, excellent mechanical strength and stiffness, and superior wear resistance. While other high-performance polymers may excel in one or two areas, PEEK delivers across multiple performance criteria, making it ideal for the most demanding applications.

Is PEEK FDA-approved for medical applications?

Yes, medical-grade PEEK complies with FDA regulations for implantable and non-implantable medical devices. It meets USP Class VI and ISO 10993 biocompatibility standards. At Fecision, we work with certified medical-grade PEEK materials and maintain appropriate quality systems for medical device manufacturing. We can provide full documentation and traceability for medical applications.

What are the typical lead times for PEEK injection molded parts?

Lead times for PEEK injection molded parts typically range from 3-6 weeks for new tooling and 1-3 weeks for production runs with existing tooling. Factors affecting lead time include part complexity, quantity, secondary operations, and quality requirements. For urgent projects, we offer expedited services. Contact us for a specific timeline based on your project requirements.

How does the cost of PEEK compare to other materials?

PEEK is more expensive than standard engineering plastics, with raw material costs typically 5-10 times higher than materials like nylon or polycarbonate. However, when considering total lifecycle costs, PEEK often provides better value through longer service life, reduced maintenance, and the ability to replace more expensive metals in many applications. Our engineering team can help evaluate the cost-benefit analysis for your specific application.

Can PEEK be used in high-pressure and high-temperature environments?

Yes, PEEK excels in high-pressure and high-temperature environments, maintaining its mechanical properties at continuous temperatures up to 260°C (500°F) and in pressures exceeding 20,000 psi in some applications. This makes it ideal for oil and gas, aerospace, and automotive applications where other polymers would fail. The specific pressure rating depends on the part geometry, wall thickness, and grade of PEEK used.
