A poorly designed plastic part can turn a simple molding job into a nightmare of warping, sink marks, and exorbitant tooling costs. In contrast, thoughtful design for injection molding turns these challenges into competitive advantages, driving efficiency and cost savings for your business and engineering projects.
This guide breaks down the core principles of plastic part design for injection molding—from wall thickness optimization to strategic gate placement. You’ll learn how to design complex injection molding parts that eject cleanly, boast a flawless finish, and deliver long-term production cost efficiency.
Importance of Design for Injection Molding
Intelligent design for injection molding enables early problem prediction, eliminating costly mold modifications later in the production process. By optimizing wall thickness and part geometry, you directly reduce production cycle times and material waste, keeping complex injection molding projects on budget from conception to completion.
Superior injection molding part design also distributes stress evenly across components, preventing cracking and warping over time. Proper draft angles and gate placement not only eliminate unsightly manufacturing defects but also ensure parts perform reliably and maintain their appearance in real-world applications, boosting product durability and customer satisfaction.
Design Guidelines for Injection Molding
To achieve optimal molding results, follow these ten core design rules—each engineered to support smooth plastic flow and uniform cooling, the cornerstones of high-quality injection molding.
1. Wall Thickness
Uniform wall thickness is critical for even cooling and minimal warping, as it eliminates internal stress buildup in the part. Consistent wall geometry ensures smooth plastic flow, directly improving the finish and structural integrity of the final assembly.
Thinner walls reduce material and cycle costs but risk short shots if overly reduced; thick sections, by contrast, lead to sink marks and internal voids. Always balance functional performance requirements with manufacturing constraints to determine the ideal wall thickness for your specific application.
2. Parting Line
Position the parting line to minimize cosmetic impact, typically along component edges rather than highly visible surfaces. A straight, simplified parting line lowers mold machining costs and reduces the risk of plastic flash—excess material that seeps into mold gaps.
Avoid placing the parting line near critical features like logos or textured surfaces to preserve aesthetic quality. A simple parting line also enhances mold maintainability, ensuring consistent performance across thousands of production cycles.
3. Draft Angle
Apply a taper (draft angle) to all vertical surfaces parallel to the mold opening direction: 1–2° is standard for smooth surface finishes, enabling the part to slide out of the mold without scraping against steel mold walls.
For deep textured surfaces, specify a draft angle of 3° or more. Insufficient draft causes drag marks and part sticking, which can halt production runs and damage components. Adequate draft angles guarantee clean ejection and scratch-free, visually consistent parts every time.
4. Ribs and Bosses
Ribs boost part stiffness without adding unnecessary bulk or weight—design rib thickness to 50–60% of the main wall thickness to avoid sink marks on the part’s exterior surface, a ratio manufacturers rely on for a smooth, flat finish.
Bosses provide essential mounting points for fasteners and screws; limit their wall thickness to the same 50–60% ratio and connect them to adjacent walls with small gussets for added strength. This design prevents boss breakage and eliminates thick sections that cause slow cooling and manufacturing delays.
5. Gate Location and Type
Position the gate at the thickest section of the part to ensure full, uniform filling—this allows plastic to pack tightly before curing, eliminating voids and weak points. Keep gates away from high-stress areas, as gate vestiges (small residual marks) can compromise structural integrity and appearance.
Match gate type to part geometry for optimal flow: edge gates work best for flat components, sub-gates enable automatic trimming during production, and hot tip gates are ideal for conical shapes. Selecting the right gate style is a pivotal step in designing for injection molding success.
6. Ejector Pins
Place ejector pins on flat, hidden surfaces to avoid cosmetic blemishes, and distribute multiple pins evenly to prevent part bending during ejection. Manufacturers use these pins to safely and consistently remove plastic parts from the mold cavity.
Pin quantity must account for material viscosity and adhesion properties: larger parts or materials with high stickiness require more pins to prevent warping. Proper pin placement ensures parts retain their original design geometry and straightness post-ejection.
7. Undercuts and Threads
Eliminate undercuts whenever possible to avoid expensive custom mold features—reorienting features to align with the mold opening direction delivers significant cost savings. For essential undercuts, manufacturers use slides or lifters, which add mold complexity and production costs.
External threads often require specialized unscrewing molds or secondary post-molding processing. Evaluate whether a thread is essential; in many cases, a simple snap-fit design can replace threads and reduce manufacturing complexity—a key tenet of smart injection molding part design.
8. Round Corners
Replace sharp internal corners with rounded fillets of at least half the wall thickness: this reduces stress concentration and enables smooth liquid plastic flow, drastically lowering the risk of cracking and part failure.
Smoothly blend external corners as well—sharp edges are difficult to fill with plastic and prone to chipping during shipping or use. Adding radii in place of sharp corners enhances the structural strength and durability of injection-molded plastic parts.
9. Surface Finishing
Specify surface textures and polishes early in the design phase, as these choices impact required draft angles and mold costs. Manufacturers use SPI/VDI industry standards to define precise surface smoothness and texture levels for injection-molded parts.
Note that deeper textures require steeper draft angles to prevent part sticking to the mold. A high-gloss finish demands mirror-polished mold surfaces, while matte or textured finishes require specialized mold treatment. Choosing the right finish ensures parts meet both aesthetic and functional requirements for end users.
10. Material Selection
Match plastic material properties to the part’s functional requirements, including shrinkage rate, chemical resistance, and structural strength. Manufacturers use these material specifications to calibrate mold dimensions, ensuring final parts meet exact design tolerances.
High-shrink materials (e.g., nylon) require looser design tolerances to account for post-molding contraction. Filled resins boost strength and rigidity but can hinder flow in very thin wall sections. Always validate material choices against part geometry before finalizing injection molding design guidelines.
Tips for Designing Injection Mold Tooling
Part design and mold tool design are inherently linked—these five tips ensure your part geometry is tooling-friendly, reducing mold costs and streamlining production.
Tooling Friendly Geometry
Prioritize straight-pull mold geometry wherever possible to minimize costs: simple shapes without hidden internal cavities create stronger, more durable molds that are faster and easier for manufacturers to build. Avoiding complex slides also enables high-volume production with consistent quality.
Integrating Cooling Features
Avoid deep, narrow pockets in part design—these leave insufficient space for mold steel and prevent manufacturers from drilling cooling lines close to the plastic surface. Open, streamlined design ensures cooling lines can be placed optimally, maintaining a steady mold temperature for uniform part cooling.
Strategic Gate Placement Areas
Design flat, hidden zones for gate placement that do not impact part function or appearance. Clearly defined gate landing spots prevent plastic flow issues and eliminate visible marks on critical surfaces, simplifying the mold tooling process and improving part quality.
Strong Ejection Landing Zones
Incorporate solid, flat areas in your design to serve as ejection landing zones—these give ejector pins a stable surface to push against, preventing part damage during ejection. Fragile parts or designs without flat landing zones can lead to production delays, as manufacturers struggle to remove parts without warping or breaking them.
Designing for Air Escape
Avoid deep, narrow slots that trap air during molding—trapped air causes plastic burning, short shots, and surface defects, wasting expensive resin and ruining parts. Design recesses to be wide and shallow, creating a clear path for air to escape toward the parting line and ensuring a clean, defect-free finish.
Struggling with mold tooling design for your project? Contact Fecision for expert, tailored advice to optimize your design and reduce tooling costs.
Common Injection Molding Design Problems and Solutions
Even well-conceived designs can face issues if geometry creates unnecessary flow resistance or stress. Below are the most common injection molding defects, their root design causes, and targeted design adjustments to fix them.
Sink Marks and Warping
Causes: Thick wall sections cool far more slowly than thin ones, creating sink marks; uneven cooling leads to differential plastic shrinkage, causing flat surfaces to warp. This is the most common issue with inconsistent wall thickness in injection molding design.
Solutions: Maintain uniform wall thickness across the part, and use ribs to boost strength instead of thickening walls. Consistent geometry is the primary defense against sink marks and warping, as it enables even cooling—manufacturing process adjustments can complement this, but design is the foundation of stable parts.
Flash and Part Sticking
Causes: Flash forms when plastic seeps into tiny mold gaps; part sticking occurs due to insufficient draft angles for release. Complex geometry can exacerbate both issues, as plastic clings to intricate mold steel surfaces.
Solutions: Verify draft angles meet the requirements for your chosen material and surface texture—stickier materials and deeper textures demand steeper drafts. While increasing clamp force can reduce flash, it cannot compensate for a design with inadequate draft angles; revising geometry is the permanent solution.
Short Shots and Burn Marks
Causes: Short shots happen when plastic hardens before filling the entire mold cavity, often due to overly thin walls or overly long flow paths; burn marks result from trapped air being scorched by high molding pressure.
Solutions: For short shots, adjust wall thickness to ensure it is sufficient for the plastic’s flow length. For burn marks, eliminate sharp corners and dead ends in the design that trap air, and add radii at flow path ends to guide air gradually toward the parting line for escape.
Gas Traps and Voids
Causes: Gas traps form in enclosed design areas (e.g., deep ribs, sharp internal corners) with no air escape path; vacuum voids develop in thick sections as plastic shrinks away from the center during cooling. Both defects weaken parts and cause failure under load.
Solutions: Redesign geometry to eliminate air trap dead ends, and optimize gate placement to push air toward the parting line. For voids, reduce wall thickness in thick sections or add radii to promote even cooling and shrinkage.
Parting Line Mismatch and Deflection
Causes: Parting line mismatch occurs when mold halves do not align perfectly, often due to complex, non-planar parting lines; deflection happens when thin walls bow under the pressure of molten plastic during filling. Both issues compromise part aesthetics and functionality.
Solutions: Prevent mismatch by using simple, straight parting lines positioned on sharp edges—complex parting lines increase alignment risk even with high-quality tooling. For deflection, reinforce thin wall sections with ribs to resist molding pressure and maintain geometry during filling.

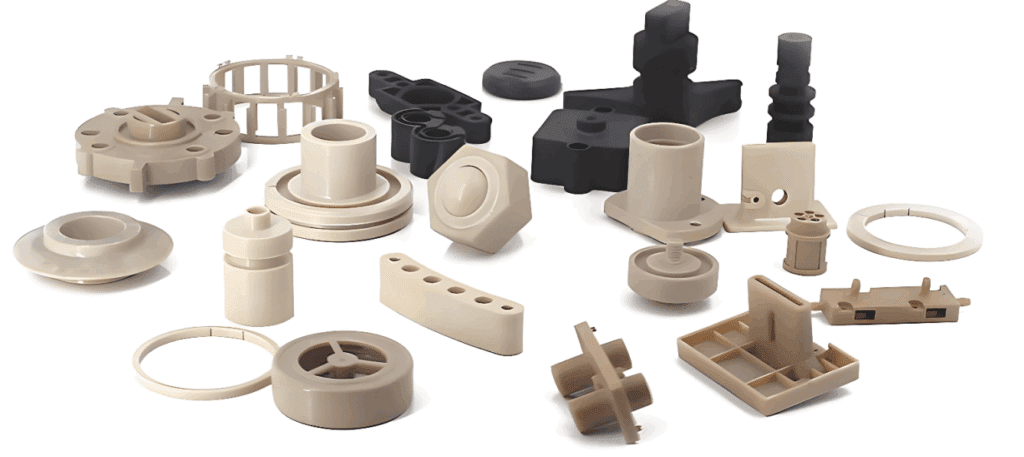

Get Complex Injection Molding Plastic Parts with Fecision
When your project demands tight tolerances and intricate part shapes, Fecision transforms your design concepts into high-quality, functional plastic parts. We combine expert engineering with state-of-the-art injection molding technology to deliver components that match your exact design specifications—handling the technical complexities so you can focus on your project’s success.
Why Partner with Fecision
- Multi-industry expertise: Specialized in medical, robotics, and aerospace injection molding, with a deep understanding of industry-specific design and quality requirements
- Free DFM (Design for Manufacturing) support: Our engineers review your design early to identify and resolve issues, cutting mold costs and avoiding production delays
- Precision engineering: Exact alignment with your original digital design, ensuring tight tolerances and consistent part quality
- Certified quality standards: ISO and IATF accredited manufacturing facilities, guaranteeing compliance with global industry regulations
- Flexible production volumes: Seamless scaling from small prototype runs to high-volume mass production
- Extensive material selection: A wide range of plastic resins to match every functional requirement, from high-strength filled resins to chemical-resistant thermoplastics
- Reliable on-time delivery: Dedicated project managers oversee every step of the process, ensuring your parts are delivered on schedule
Conclusion
Thoughtful design for injection molding is the key to creating parts that are structurally sound, visually flawless, and cost-effective to produce. By focusing on core principles—uniform wall thickness, proper draft angles, strategic gate placement, and material-geometry alignment—you avoid costly design mistakes, reduce production waste, and speed up manufacturing cycles.
These guidelines are the foundation of successful complex injection molding, turning your design ideas into high-performance parts that meet the most demanding industry standards.
Ready to bring your injection molding design to life? Contact Fecision today for free DFM design review and a fast, transparent quote for your next project—we’ll help you optimize your design for maximum efficiency and quality.
