Right Angle Pogo Pins
✓ 10,000–100,000+ Mating Cycles
✓ Gold/Nickel-Plated Contacts for Low Resistance (<30mΩ)
✓ Current Ratings from 0.5A to 5A+
✓ ISO 9001 & RoHS Certified
Why
Fecision?
Precision At Fecision
Precision Pogo Pins: CNC-Machined, Gold-Plated, Customizable
As a leading CNC machining and mold manufacturing service provider, we deliver tailored pogo pin solutions using advanced materials, surface finishes, and manufacturing techniques.
Rapid Prototyping
CNC + mold manufacturing in 7 days
End-to-End Testing
Validated for resistance, cycle life, and ESD resistance
Customizable
Tailored dimensions, plating, and materials for your application
Modular Design
Replace bulky soldered joints with compact, reusable solutions
Industry-Leading Durability
Engineered for 50K–100K+ cycles
Compact 90° Spring Probes for Space-Saving Designs
Right angle pogo pins are spring-loaded connectors with a 90° bend, designed to enable electrical connections in tight or complex PCB layouts. They are ideal for applications requiring space optimization, such as wearable devices, modular electronics, and test fixtures.
Our Design ensures precise 90° alignment and consistent contact force, validated in MIL-STD-202H vibration tests.
- 90° Design: Saves space and allows flexible routing in compact devices.
- Material Excellence: Beryllium copper springs with gold/nickel plating for corrosion resistance.
Why Choose Right Angle Pogo Pins?
Technical Specification Table
| Parameter | Specifications |
Contact Material | Beryllium Copper Spring, Gold/Nickel Plating |
Plunger Travel | 0.5–3.0mm |
| Height Profile | 2.5mm-15mm |
| Contact Resistance | <30mΩ (Initial) |
Current Rating | 0.5–5A (Customizable up to 15A) |
| Operating Temp | -55°C to +150°C |
| Certifications | ISO 9001, RoHS, UL, IPC-A-610 |
Types of Right Angle Pogo Pins
Precision Solutions for Compact Designs
Low-Profile Right Angle Pins
Ultra-compact designs for wearable devices and IoT sensors.
Applications: Smartwatches, fitness trackers

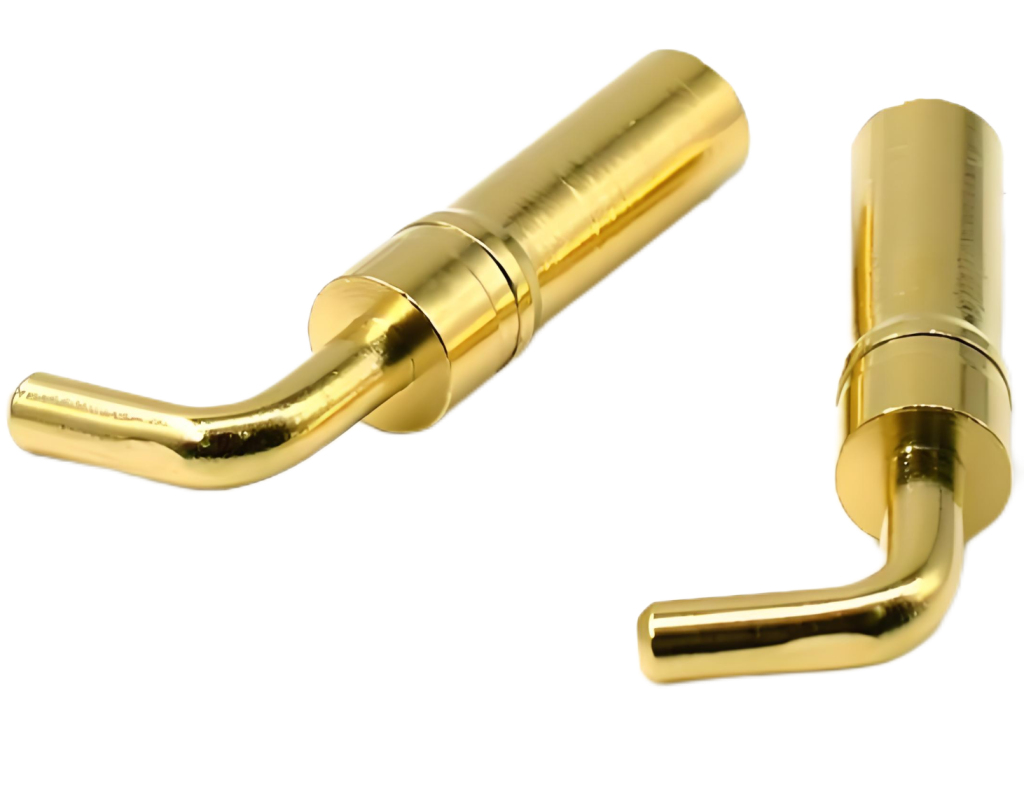

High-Current Right Angle Pins
5A+ rated pins for charging and power transfer in tight spaces.
Applications: Drones, portable medical devices

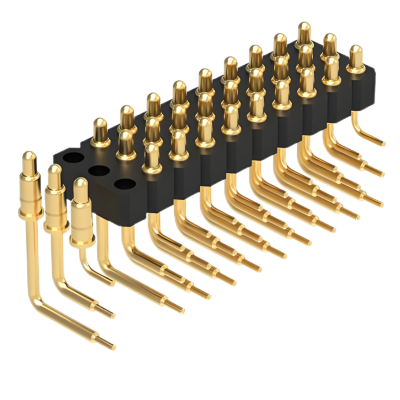

Test & Measurement Probes
90° pins for automated PCB testing (ICT/FCT) in compact fixtures.
Applications: PCB validation, semiconductor testing
Modular Connectors
Self-aligning 90° pins for modular electronics and robotics.
Applications: Modular IoT systems, robotic arms
Manufacturing Processes
Precision Machining
- Brass/Stainless Steel Housing: ±0.005mm Tolerance

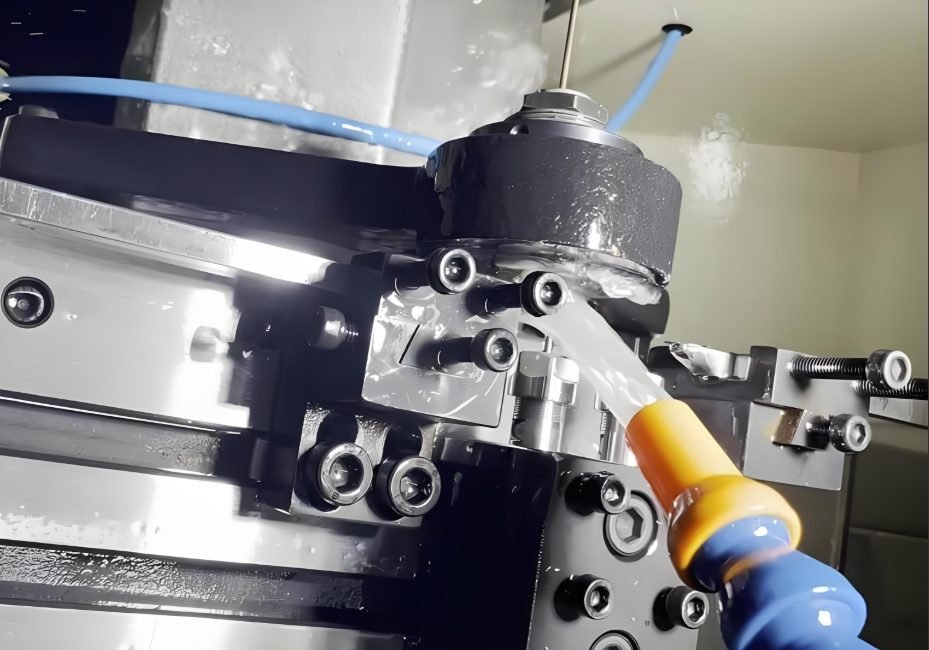

Angle Fabrication
-
Laser Micro-Welding for 90° Joints
-
Robotic 3-Point Angle Verification
Surface Engineering
-
Multi-Stage Electrocleaning Process
-
Pulse Reverse Gold Plating
-
Post-Plate Baking
Quality Validation
Applications & Industries
Right Angle Pogo Pins in Action

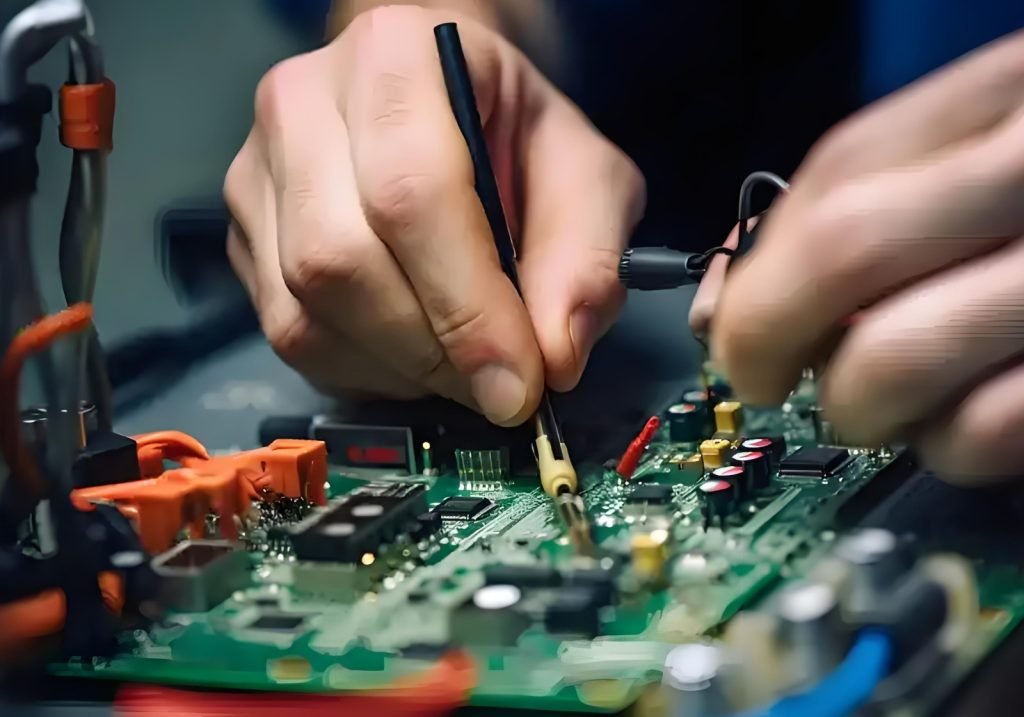

PCB Testing
Wearable Devices
Industrial Automation
Consumer Electronics
Start your project now
Workflow
Customization Process
Share your thermal requirements, size constraints, and environmental conditions.
We provide 3D CAD models and thermal analysis reports.
Test functional prototypes for performance validation.
Seamless transition to full-scale manufacturing.
Trusted for High-Reliability Systems
Certifications & Quality Assurance
ISO 9001:2015 & IATF 16949
RoHS/REACH Compliance
UL 1977 & IPC-A-610 Class 3
Request a Proposal
Let us bring your vision to life.
Share your project details, and we’ll craft a tailored proposal just for you.
