PCB Pogo Pins
✓ Gold/Nickel-Plated Contacts for Low Resistance (<30mΩ)
✓ Current Ratings from 0.5A to 15A+
✓ Customizable Plunger Travel & Force
✓ ISO 9001 & IATF 16949 Certified
Why
Fecision?
Precision At Fecision
Precision Pogo Pins: CNC-Machined, Gold-Plated, Customizable
As a leading CNC machining and mold manufacturing service provider, we deliver tailored pogo pin solutions using advanced materials, surface finishes, and manufacturing techniques.
Rapid Prototyping
CNC + mold manufacturing in 7 days
End-to-End Testing
Validated for resistance, cycle life, and ESD resistance
Customizable
Tailored dimensions, plating, and materials for your application
Modular Design
Replace bulky soldered joints with compact, reusable solutions
Industry-Leading Durability
Engineered for 50K–100K+ cycles

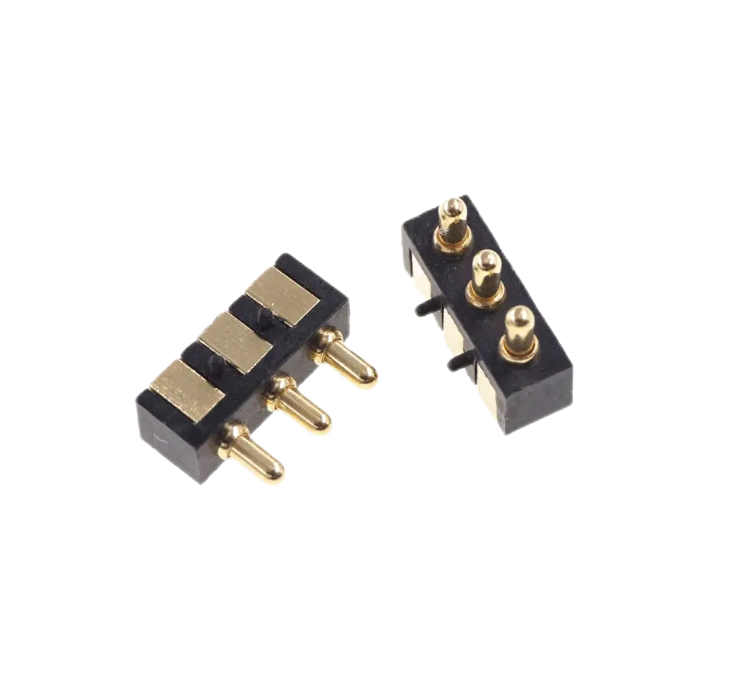

PCB Pogo Pins – Precision Spring Contacts for PCB Applications
PCB pogo pins are spring-loaded connectors designed for direct PCB integration, enabling reliable electrical connections for testing, charging, and modular interfaces. They are widely used in applications requiring high-cycle durability, precise alignment, and compact designs, such as test fixtures, wearable devices, and IoT modules.
Our plunger design reduces wear by 40% compared to standard pogo pins, validated in MIL-STD-202H vibration and thermal cycling tests.
- Pitch Options: Standard pitches (1.27mm, 2.00mm, 2.54mm) for compatibility with male headers.
- Material Excellence: High-temperature plastics with gold/nickel-plated contacts for corrosion resistance.
Why Choose PCB Pogo Pins?
Technical Specification Table
| Parameter | Specifications |
Contact Material | Beryllium Copper Spring, Gold/Nickel Plating |
Plunger Travel | 0.5–5.0mm |
| Current Rating | 0.5–15A (Customizable) |
| Contact Resistance | <30mΩ (Initial) |
Contact Force | 0.8N-8N Adjustable |
| Operating Temp | -40°C to +125°C |
| Certifications | ISO 9001, IATF 16949, RoHS, UL |
Types of PCB Pogo Pins
Test & Measurement Probesv
Low-resistance pins for in-circuit testing (ICT) and functional testing (FCT).
Applications: PCB validation, semiconductor testing
Charging Contacts
Gold-plated pins for wearables, drones, and medical devices.
Applications: Smartwatches, wireless earbud
Modular Connectors
Self-aligning pins for modular electronics and IoT devices.
Applications: Smart home sensors, modular robotics
High-Current PCB Pins
15A+ rated pins for power transfer in EV charging and industrial systems.
Applications: EV battery testing, power tools
Manufacturing Processes
Precision Machining
- 5-Axis CNC Turning (±0.005mm Tolerance)
- Micro-Drilling of Guide Holes
Spring Assembly
-
Tempered SUS316 Springs (100k Cycle Life)
-
Nitrogen Atmosphere Laser Welding
Surface Treatment
-
Multi-Stage Ultrasonic Cleaning
-
Pulse Electrodeposition Plating
-
Post-Plate Baking (150°C, 2hrs)
Quality Validation
-
100% Contact Resistance Sorting
-
Thermal Shock Testing (-55°C ↔ +125°C)
-
48hr Salt Spray per ASTM B117
Applications & Industries
PCB Pogo Pins in Action
PCB Testing
Wearable Devices
Industrial Automation
Electric Vehicles
Start your project now
Workflow
Customization Process
Share your thermal requirements, size constraints, and environmental conditions.
We provide 3D CAD models and thermal analysis reports.
Test functional prototypes for performance validation.
Seamless transition to full-scale manufacturing.
Trusted for Mission-Critical Reliability
Certifications & Quality Assurance
ISO 9001:2015 & IATF 16949
RoHS/REACH Compliance
UL 1977 & IPC-A-610 Class 3
Request a Proposal
Let us bring your vision to life.
Share your project details, and we’ll craft a tailored proposal just for you.
