Magnetic Pogo Pin
Why
Fecision?
Precision At Fecision
Precision Pogo Pins: CNC-Machined, Gold-Plated, Customizable
As a leading CNC machining and mold manufacturing service provider, we deliver tailored pogo pin solutions using advanced materials, surface finishes, and manufacturing techniques.
Rapid Prototyping
CNC + mold manufacturing in 7 days
End-to-End Testing
Validated for resistance, cycle life, and ESD resistance
Customizable
Tailored dimensions, plating, and materials for your application
Modular Design
Replace bulky soldered joints with compact, reusable solutions
Industry-Leading Durability
Engineered for 50K–100K+ cycles

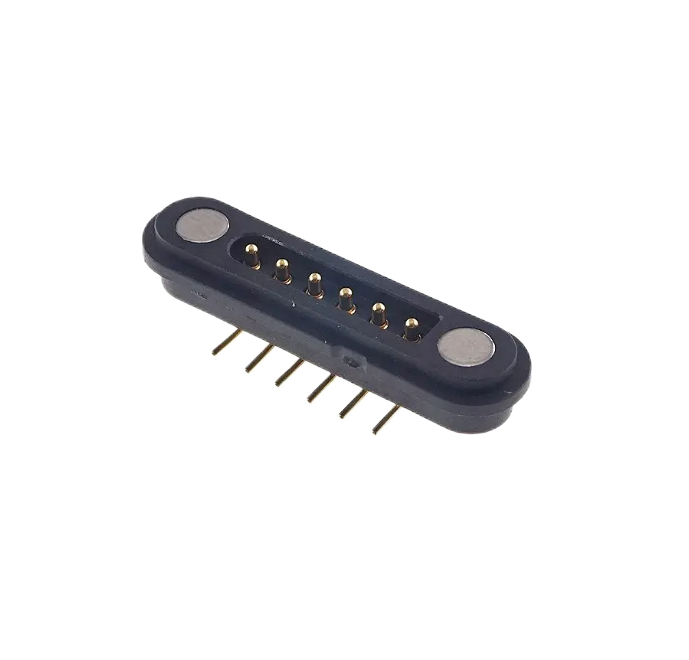

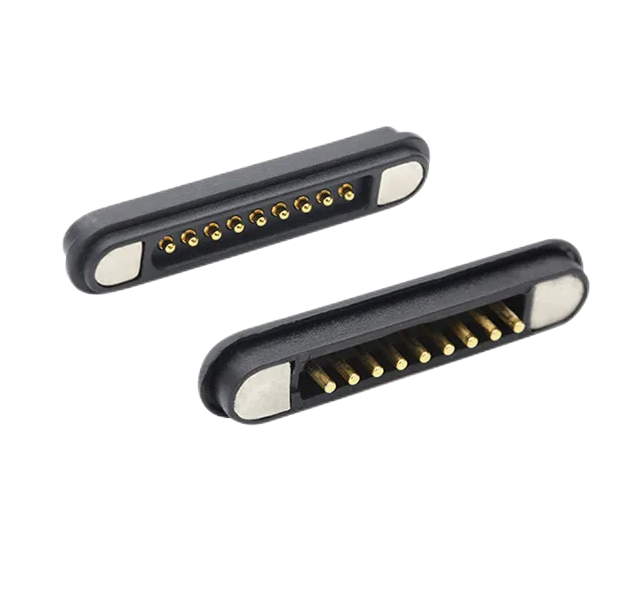

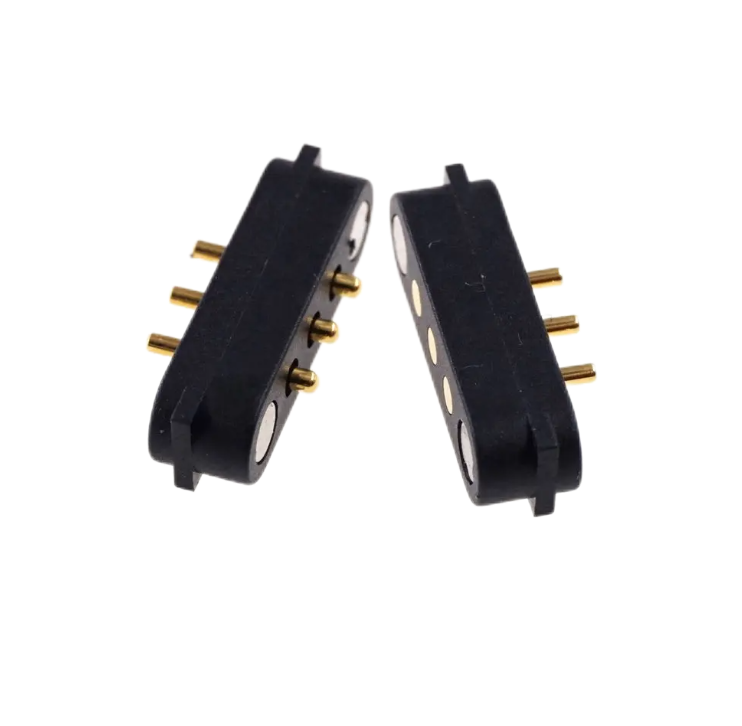

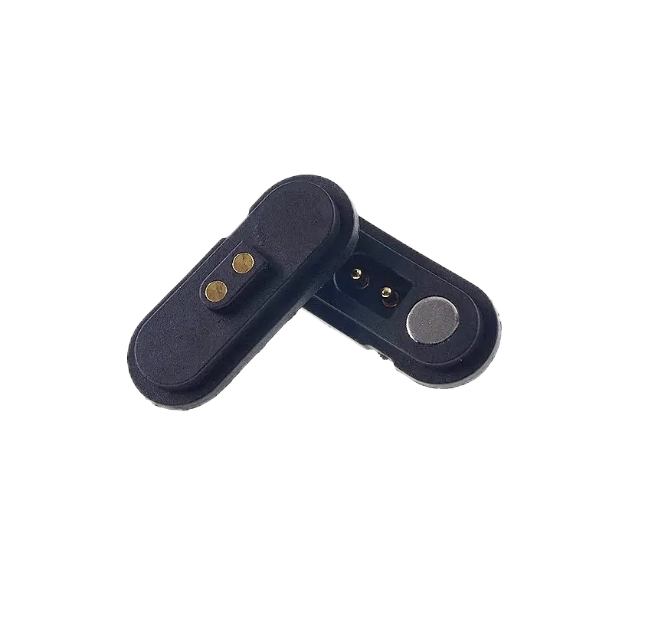

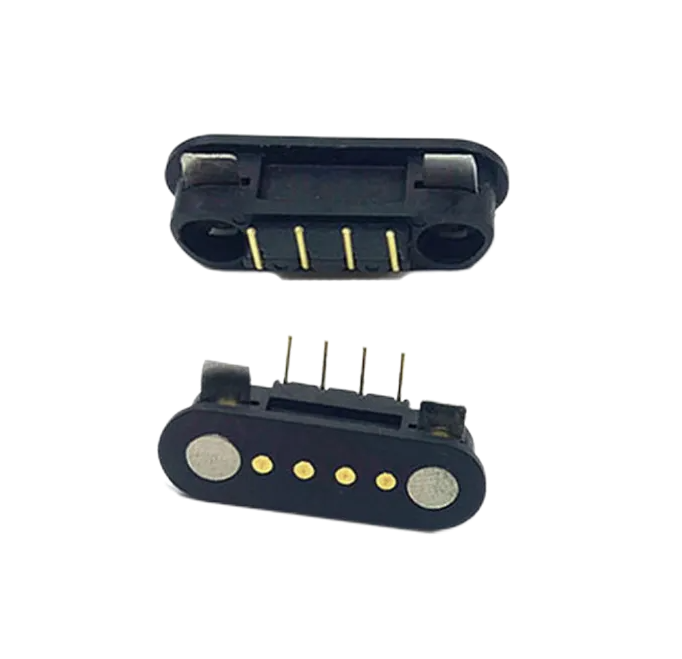

Magnetic Pogo Pin Connectors
- Magnetic Alignment: Rare-earth magnets (e.g., NdFeB) ensure precise contact alignment.
- Material Excellence: Gold-plated beryllium copper springs for low resistance (<30mΩ).
Why Magnetic Pogo Pins?
Technical Specification Table
| Parameter | Specifications |
| Contact Material | BeCu Spring, Gold/Nickel Plating |
| Magnet Type | NdFeB (N35-N52 Grade), Samarium Cobalt |
| Current Rating | 0.5–15A |
| Voltage Rating | Up to 60VDC |
| IP Rating | IP67/IP68 (Optional) |
| Operating Temp | -40°C to +125°C |
| Certifications | ISO 9001, IATF 16949, RoHS, UL, FCC |
Types of Magnetic Pogo Pin Connectors

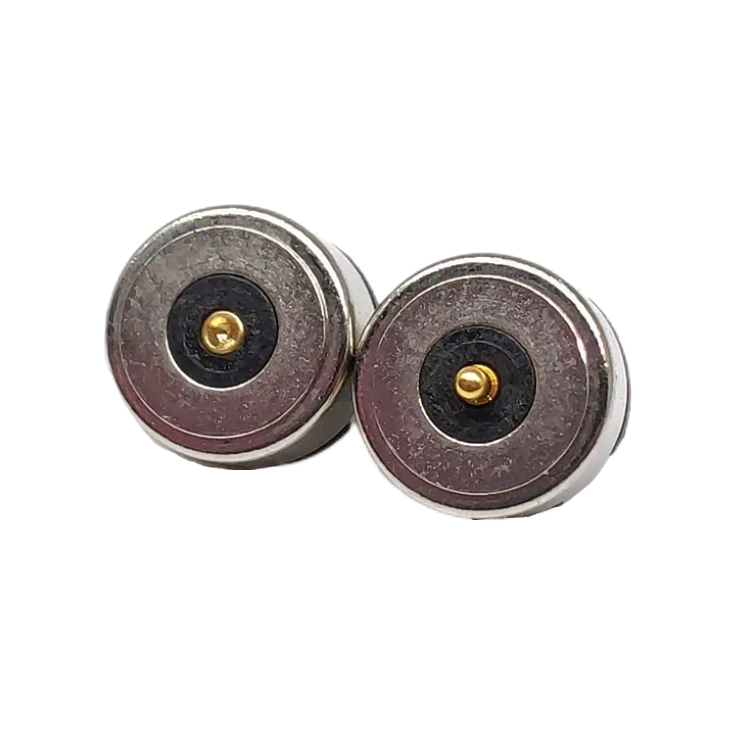

Magnetic Pogo Pin Charger
Waterproof (IP68) contacts for wearables, drones, and underwater devices.
Applications: Smartwatches, underwater cameras
High-Speed Data Pogo Pins
Shielded designs for USB 3.0/Thunderbolt data transfer (up to 40Gbps).
Applications: Rugged tablets, modular IoT systems
Micro Magnetic Pogo Pins
Sub-2mm diameter pins for hearing aids and micro medical devices.
Applications: Hearing aids, endoscopic tools
High-Power Industrial Pogo Pins
Manufacturing Processes
CNC Machining
-
Brass/Stainless Steel Housing: ±0.005mm Tolerance
Spring Formation
-
Music Wire (SWOSC-V) Cold Coiling
-
Stress Relief Heat Treatment
Magnet Integration
-
Epoxy-Free Press Fit Design
-
Residual Magnetism <0.5mT
Quality Validation
-
100% Continuity Testing
-
Salt Spray (48hrs per ASTM B117)
-
10,000-Cycle Durability Sampling
Applications & Industries
Consumer Electronics
- Waterproof magnetic charging for earbuds and fitness trackers.
- Magnetic docking stations for smartphones, earbuds, and wearables.
Medical Devices
- Sterilizable magnetic connectors for MRI-compatible sensors.
- Disposable diagnostic probes with hygienic, tool-free disassembly.
Automotive Testing
- High-cycle pogo pins with magnetic alignment for EV battery validation.
- EV battery pack interfaces resistant to vibration/shock.
Industrial Automation
- Self-aligning docking for AGVs and robotic tool changers.
- Quick-connect tool changers and sensor interfaces.
Start your project now
Workflow
Customization Process
Share your thermal requirements, size constraints, and environmental conditions.
We provide 3D CAD models and thermal analysis reports.
Test functional prototypes for performance validation.
Seamless transition to full-scale manufacturing.
Trusted for Critical Environments
Certifications & Quality Assurance
ISO 9001:2015 & IATF 16949
RoHS/REACH Compliance
IP67/IP68 (IEC 60529)
FCC Part 15 (EMI/EMC)
Request a Proposal
Let us bring your vision to life.
Share your project details, and we’ll craft a tailored proposal just for you.
