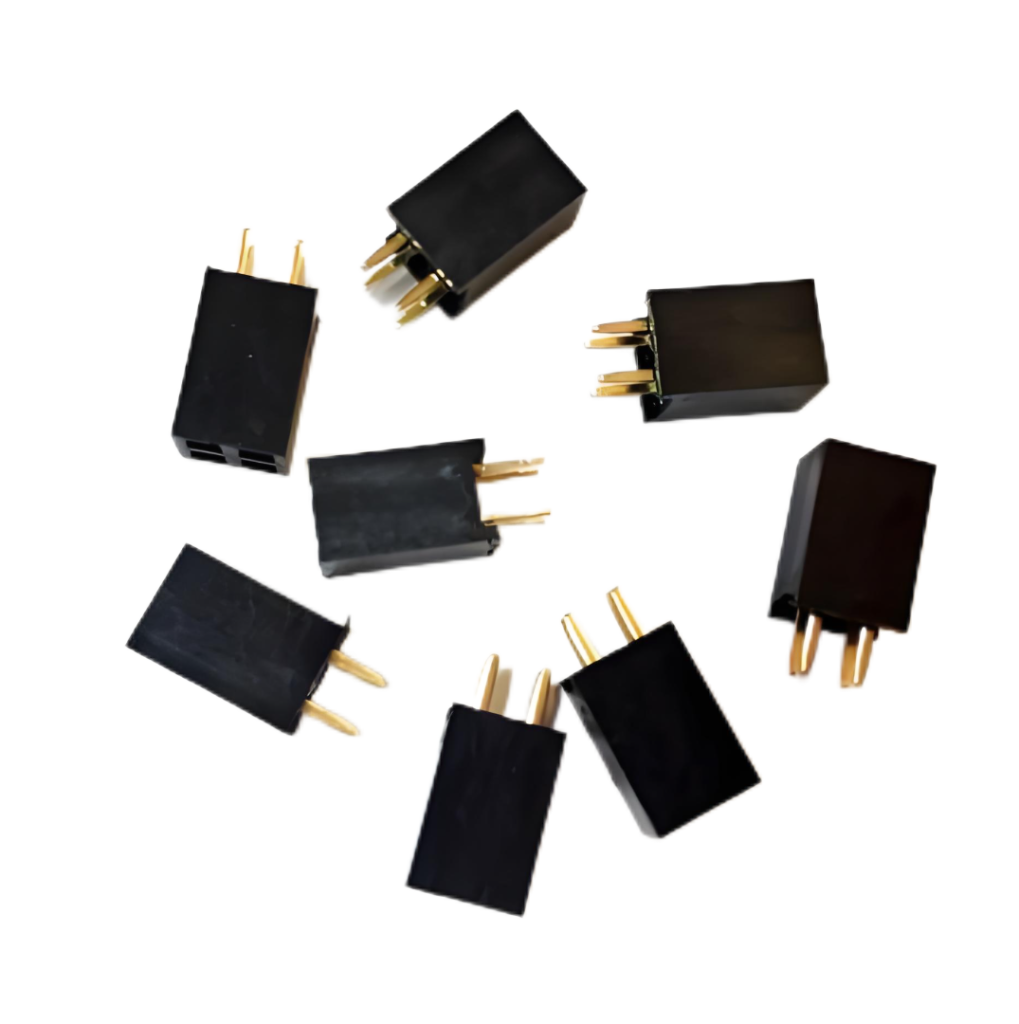

Female Pin Headers
✓ Gold/Nickel-Plated Contacts for Low Resistance
✓ Current Ratings up to 5A per Pin
✓ SMT, THT, & Right-Angle Mounting Options
✓ ISO 9001 & RoHS Certified
Why
Fecision?
Precision At Fecision

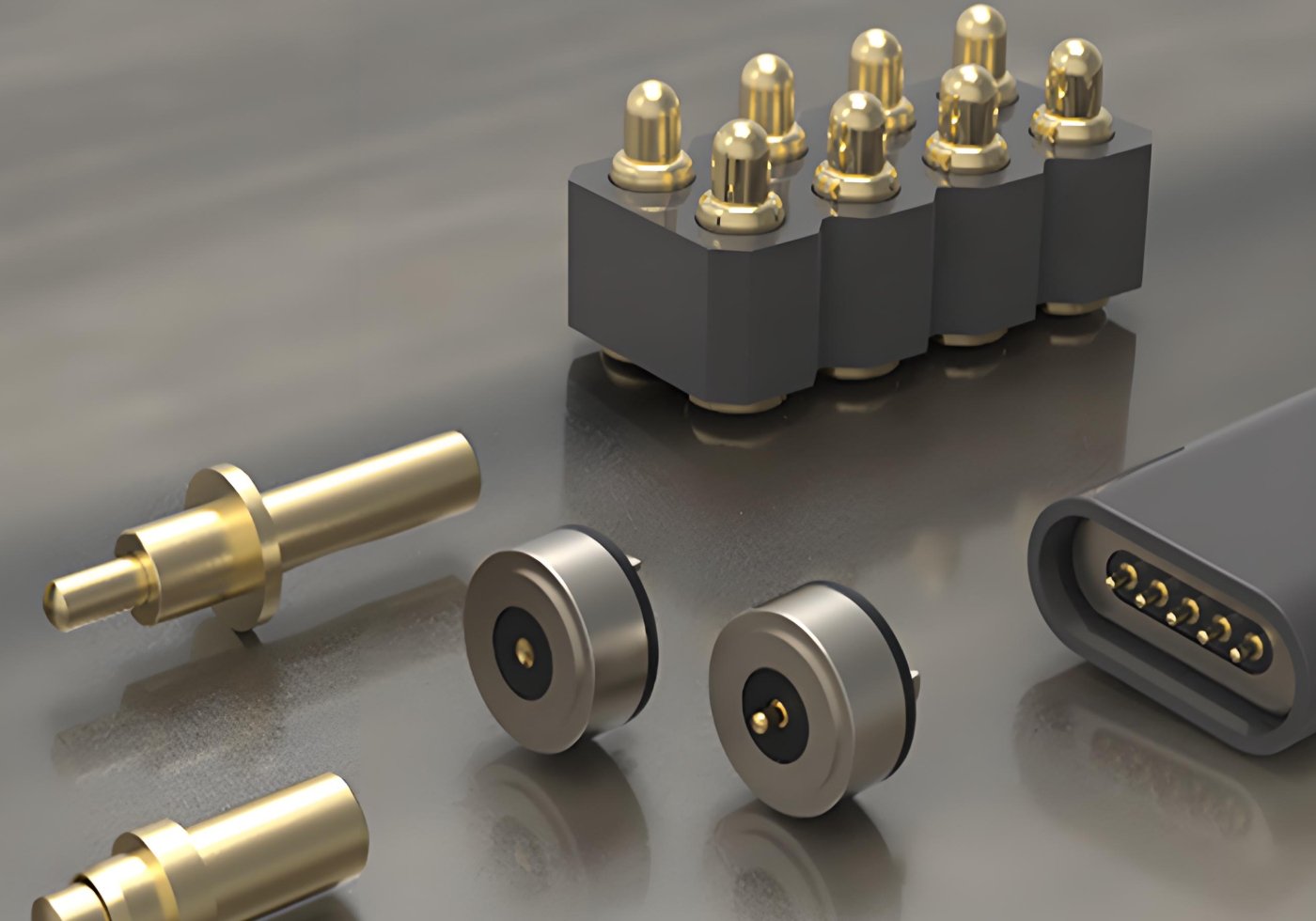

Precision Pogo Pins: CNC-Machined, Gold-Plated, Customizable
As a leading CNC machining and mold manufacturing service provider, we deliver tailored pogo pin solutions using advanced materials, surface finishes, and manufacturing techniques.
Rapid Prototyping
CNC + mold manufacturing in 7 days
End-to-End Testing
Validated for resistance, cycle life, and ESD resistance
Customizable
Tailored dimensions, plating, and materials for your application
Modular Design
Replace bulky soldered joints with compact, reusable solutions
Industry-Leading Durability
Engineered for 50K–100K+ cycles
Precision Female Pin Headers & Socket Connectors
Female pin headers are PCB-mounted sockets designed to securely mate with male pin headers, providing reliable electrical connections for signal and power transfer. They are widely used in applications requiring modularity, durability, and ease of assembly.
Our Contact Design ensures a stable, low-resistance connection even under vibration, validated in MIL-STD-202H testing.
- Pitch Options: Standard pitches (1.27mm, 2.00mm, 2.54mm) for compatibility with male headers.
- Material Excellence: High-temperature plastics with gold/nickel-plated contacts for corrosion resistance.
Why Choose Female Pin Headers?
Technical Specification Table
| Parameter | Specifications |
Pitch Options | 1.27mm, 2.00mm, 2.54mm (Customizable) |
Termination | SMT/THR/Press-Fit |
| Current Rating | 1A–5A per Pin |
| Contact Resistance | <20mΩ (Initial) |
Insulation Material | High-Temperature Nylon, PBT, LCP |
| Operating Temp | -40°C to +105°C |
| Certifications | ISO 9001, IATF 16949, RoHS, UL |
Types of Female Pin Headers

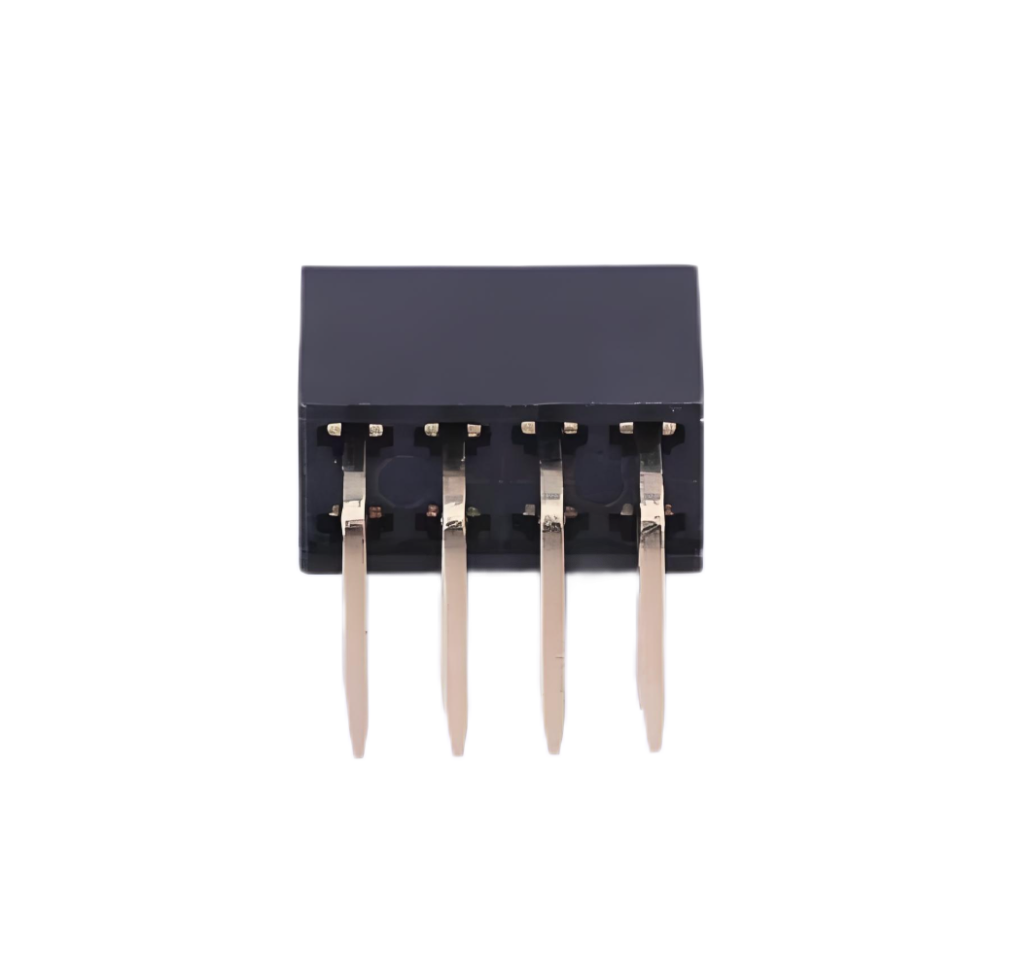

Single-Row Female Headers
Compact 1.27mm–2.54mm pitch headers for space-constrained designs.
Applications: IoT sensors, wearable devices

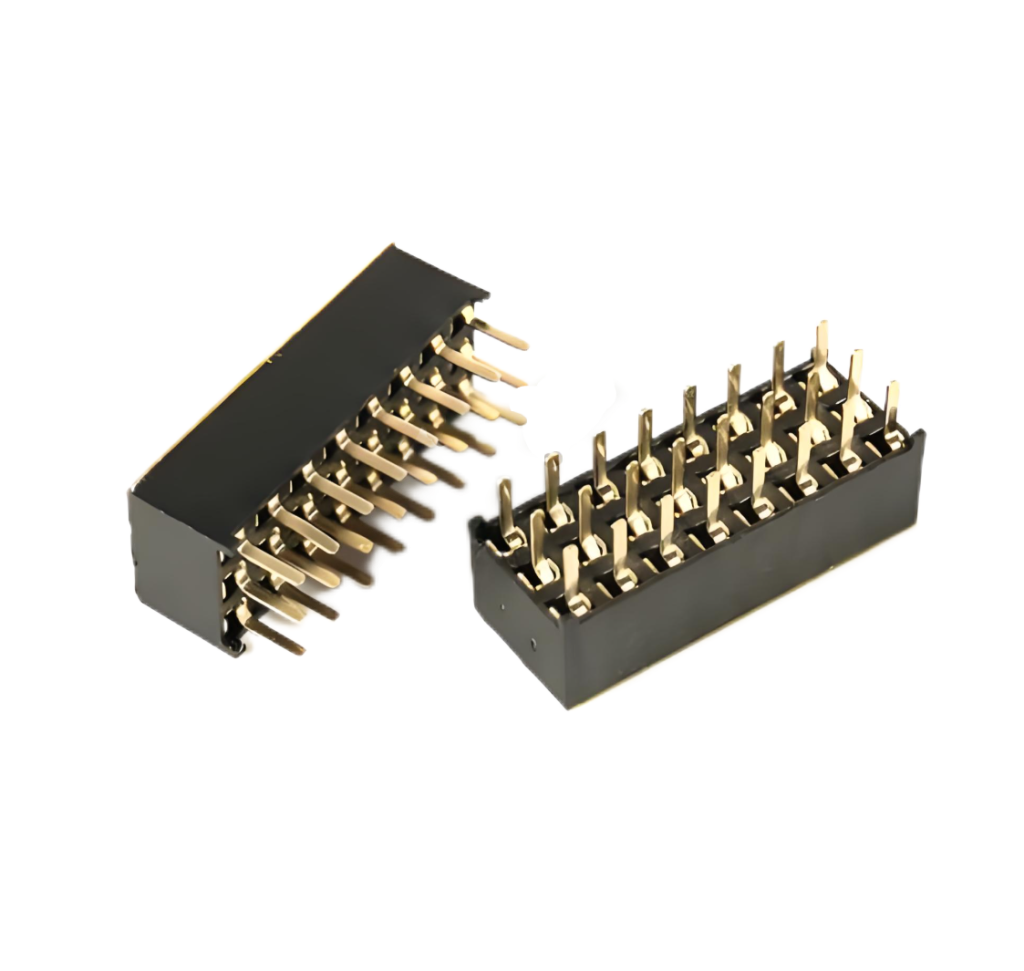

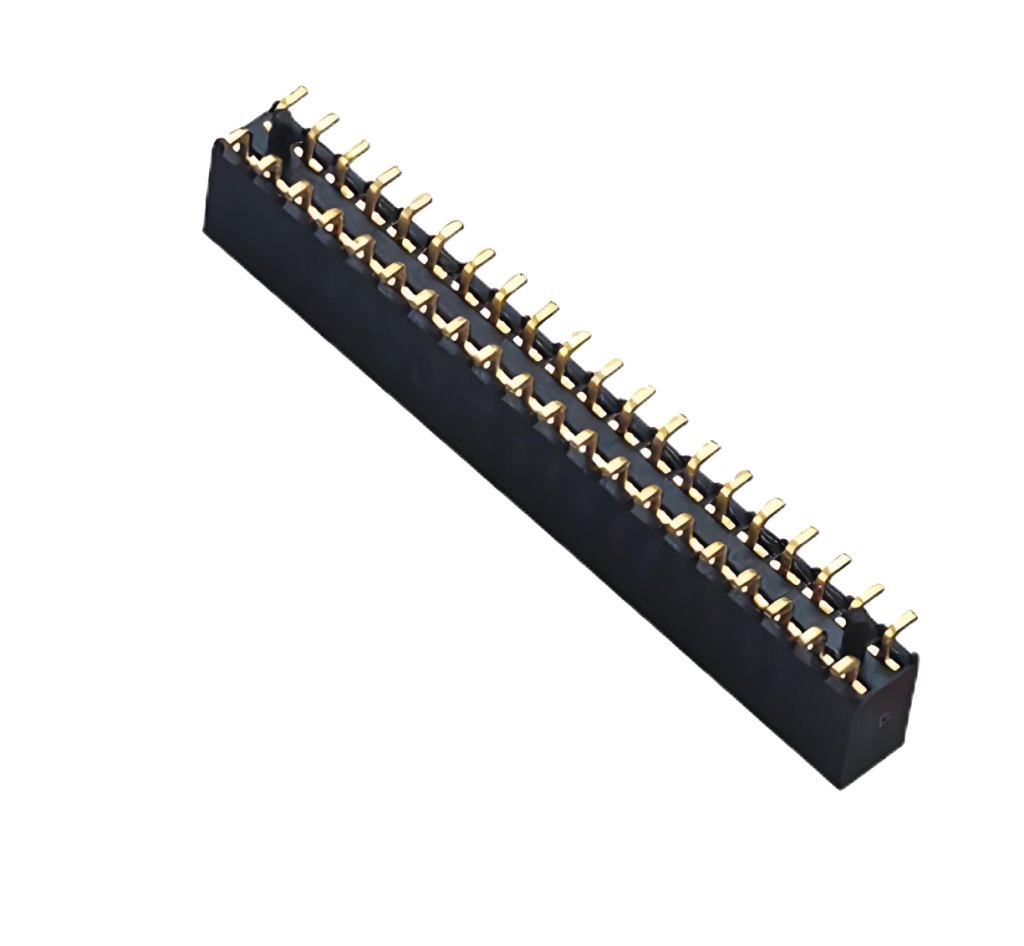

Double-Row Female Headers
High-density 2.54mm pitch headers for power and signal transfer.
Applications: Industrial controllers, automotive ECUs

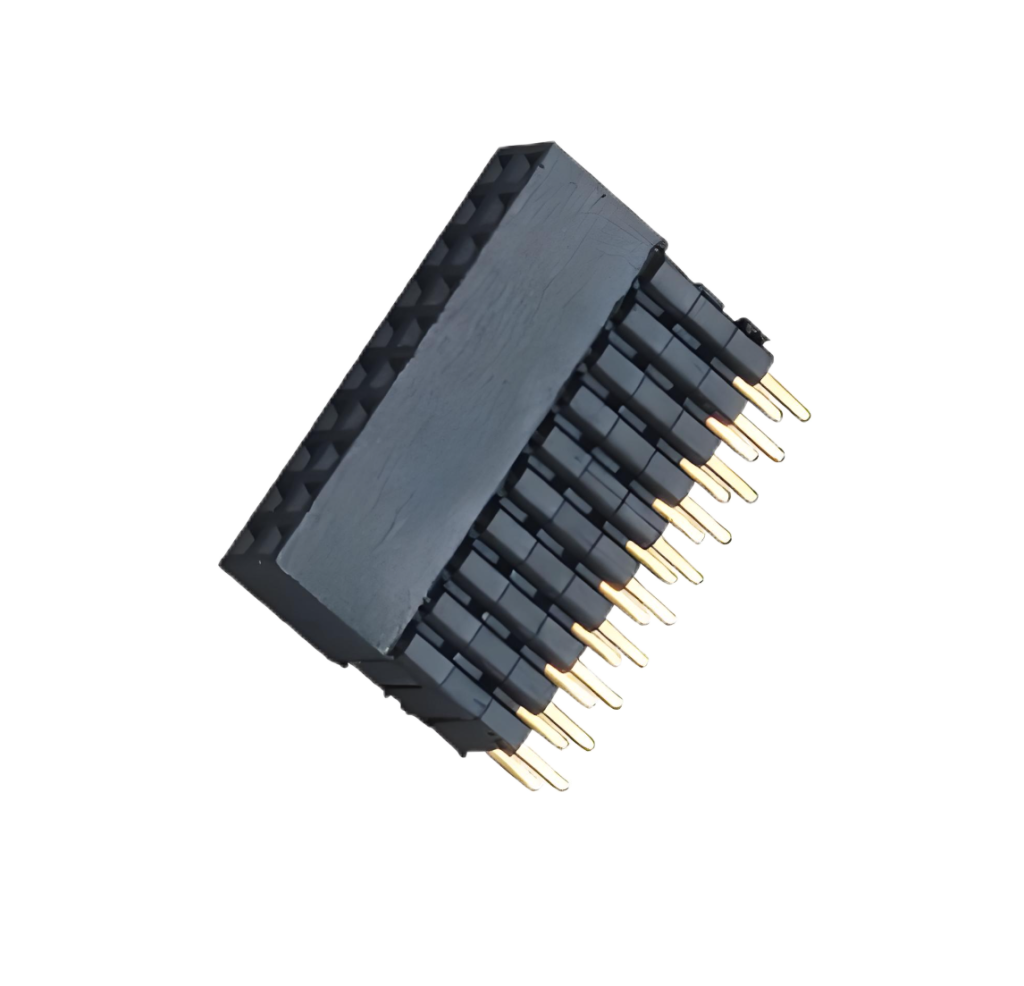

Right-Angle Female Headers
90° mounting for flexible PCB layouts and cable connections.
Applications: Consumer electronics, modular robotics

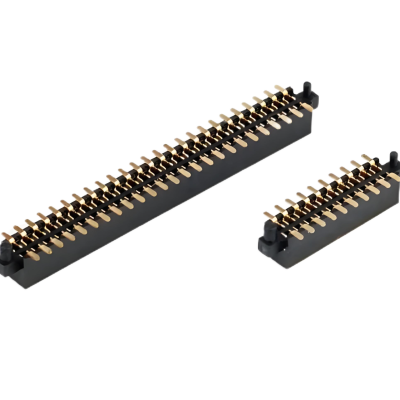

SMT Female Headers
Surface-mount headers for automated PCB assembly.
Applications: High-volume consumer electronics, telecom modules
Manufacturing Processes
Contact Fabrication
-
High-Speed Progressive Die Stamping
-
Stress Relief Annealing
Plating Process
-
Multi-Stage Electrocleaning
-
Selective Palladium Barrier Layer
-
Pulse-Plated Gold Deposition
Housing Production
-
LCP Injection Molding (0.02mm Tolerance)
-
Cavity Number Tracking for Traceability
Final Assembly
-
Automated Insertion (0.1N Insertion Force Control)
-
3D AOI for Coplanarity Verification
Applications & Industries
Female Pin Headers Powering Critical Connections
Consumer Electronics
Industrial Automation
Automotive Systems

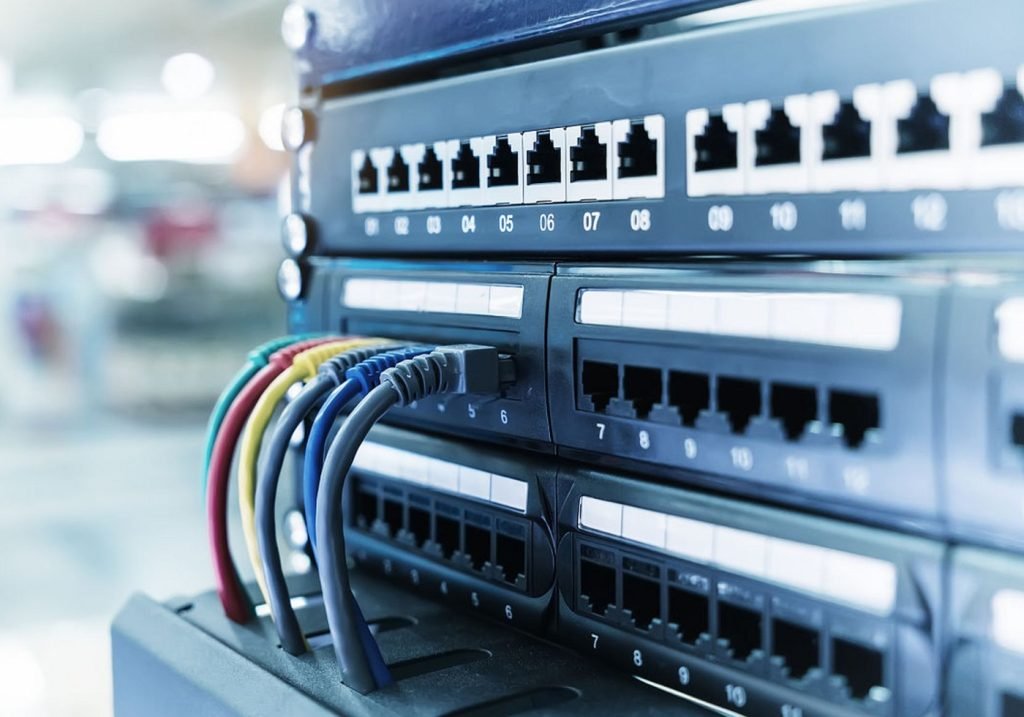

Telecom Equipment
Start your project now
Workflow
Customization Process
Share your thermal requirements, size constraints, and environmental conditions.
We provide 3D CAD models and thermal analysis reports.
Test functional prototypes for performance validation.
Seamless transition to full-scale manufacturing.
Trusted for High-Reliability Systems
Certifications & Quality Assurance
ISO 9001:2015 & IATF 16949
RoHS/REACH Compliance
UL 94V-0 & IPC-A-610 Class 3
Request a Proposal
Let us bring your vision to life.
Share your project details, and we’ll craft a tailored proposal just for you.
