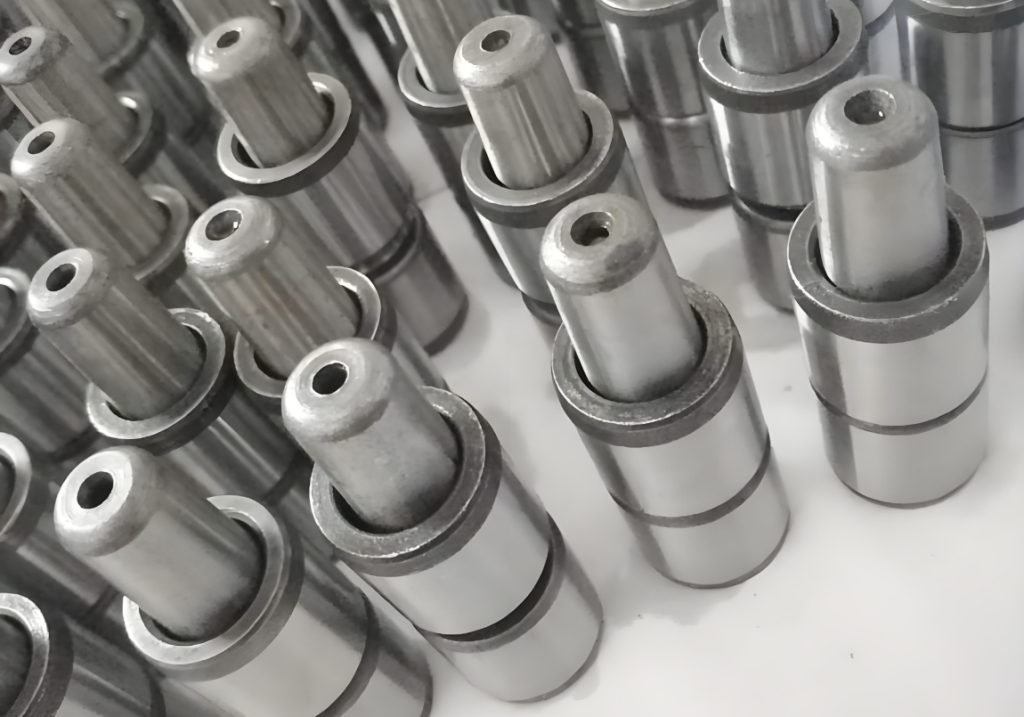

Leader Pin
- High Precision: Guarantees perfect mold alignment for flawless production.
- Robust Durability: Resists wear under high-pressure, repetitive use.
- Flexible Design: Offered in multiple sizes and styles for varied applications.
- Low Friction: Enhances mold efficiency and extends service life.
Expert Craftsmanship
20+ Years of Expertise
Tailored Solutions
Custom designs
Rigorous Quality Control
ISO 9001-Certified Quality
Competitive Pricing
Cost-effective solutions
Global Support
Reliable delivery & technical assistance
ISO 9001:2015 Certified Processes
ISO 13485: 2016 Medical Device
IATF 16949: 2016 Automotive
No Minimum Order Quantities
In-Process Inspection with CMM
Leader Pins: Precision Components for Injection Molding
Leader pins are essential precision mold components in injection molding, engineered to guide and align mold halves with exceptional accuracy during production cycles. These robust pins ensure smooth mold operation, reduce component wear, and maintain consistent part quality.
Our leader pins are designed for reliability and precision, serving industries like automotive, consumer goods, and medical manufacturing with unmatched performance.
Core Functions
Processing Materials
Stainless Steel
- Resists corrosion in harsh conditions (e.g., 420, 440C).
Hardened Tool Steel
- Delivers superior durability (e.g., H13, D2).
Specialty Alloys
- Available for unique performance needs.
Post-Processing & Surface Treatments
Heat Treatment
Precision Grinding
Nitriding
Optional Coating
Technical Specs for Leader Pins
Our processes ensure unmatched consistency and repeatability at fast lead times and affordable pricing.
| Parameter | Specification |
| Hardness | 58-62 HRC (material-dependent) |
| Surface Finish | Precision ground to Ra ≤ 0.2 μm |
| Dimensional Tolerance | ±0.002 mm (custom tolerances available) |
| Diameter Range | 6 mm to 50 mm (custom diameters on request) |
| Length | 50 mm to 500 mm (custom thicknesses available) |
| Lead Time | 2-4 weeks (standard); rush options available |
Reach out for specs tailored to your application.
Selection Suggestions
Mold Dimensions
Larger molds need thicker or longer pins.
Cycle Frequency
High-cycle runs favor harder materials.
Operating Conditions
Choose stainless steel for corrosive environments.
Travel Distance
Match pin length to mold stroke requirements.
Our experts can assist in optimizing your selection.
Fecision Mold Component Tooling Network
In response to different service types and diverse business needs, we have deployed suppliers with different manufacturing capabilities.
Why Fecision for Mold Components?
Precision and Accuracy
Using state-of-the-art CNC machining, EDM, and other advanced manufacturing techniques, Fecision ensures all mold components meet tight tolerances and high-quality standards.
Customization
Fecision understands the unique needs of each project. Our team works closely with customers to provide tailored solutions, ensuring that each component fits perfectly within the target mold system.
Rapid Prototyping
Fecision offers rapid prototyping for mold components, enabling customers to test and refine designs quickly before moving into full production.
End-to-End Services
From initial design and DFM (Design for Manufacturability) analysis to final mold assembly and testing, Fecision handles every aspect of the mold component manufacturing process.
Process for Manufacturing Mold Components
Manufacturability Evaluation
The initial step involves assessing the manufacturablity of the mold component. If it's deemed feasible, we proceed with production immediately. If not, we will provide a detailed DFM (Design for Manufacturability) report to the customer. If necessary, mold flow analysis is performed to simulate the flow of molten material within the mold.
Material Selection
Next, choose the right material for mold parts. Common materials for mold components include steel alloys, aluminum, stainless steel, specialty alloys, etc. If needed, a prototype may be made using rapid prototyping techniques (e.g., 3D printing, CNC machining) to test the design for fit, function, and manufacturability.
Mold Components Manufacturing
Once the design and materials are finalized, the mold component undergoes CNC machining. If required, the mold component may undergo heat treatment, depending on the material and intended application. For certain components, surface hardening methods such as nitriding or carburizing are applied to increase wear resistance.
Shipping
For molds with multiple components, such as multi-cavity molds or molds with inserts, the individual components are carefully assembled into the final mold system. Once our engineers confirm the product meets all requirements, it will be shipped. We maintain ongoing communication to ensure the customer is fully satisfied with the product they receive.
Let's Start!
Enhance your injection molding operations with high-quality bolts and nuts.
Contact us today to discuss your needs or request a quote. Our team is dedicated to delivering precision fasteners to drive your production success.
