Finned Heat Sink

Precision-Designed Fin Arrays for Enhanced Heat Transfer & Airflow

✓150–400 W/mK Thermal Conductivity (Material-Dependent)
✓ Aluminum, Copper, or Hybrid Fin Designs
✓ Custom Fin Density, Height, & Thickness
✓ ISO 9001 & IATF 16949 Certified
✓ Prototype to High-Volume Production
Get A Quote

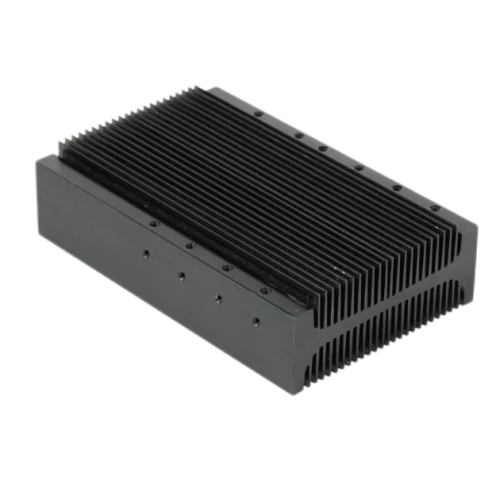

Finned Heat Sink 0

Why

Fecision?

custom heat sink

Precision At Fecision

Custom CNC Machining & Molded Solutions

As a leading CNC machining and mold manufacturing service provider, we deliver tailored heat sink solutions using advanced materials and manufacturing techniques, including CNC milling, extrusion, die-casting, and bonded fin technology.

Get A Quote

Optimized Thermal Performance

CFD-simulated designs for maximum heat dissipation

Durability

Corrosion-resistant finishes for harsh environments

Custom Designs

Collaborate with our engineers for application-specific solutions

Cost Efficiency

Competitive pricing for both low/high-volume orders

Global Compliance

Meet RoHS, REACH, and ISO 9001 standards

Finned Heat Sinks

Get A Quote
Finned heat sinks are thermal management devices featuring an array of extended surfaces (fins) that amplify heat dissipation by maximizing surface area exposed to airflow. They are the most common heat sink type, used across industries to cool components like CPUs, power electronics, and LED modules.

We help to optimizes fin geometry for your specific airflow and thermal load, reducing thermal resistance by 20-35% versus standard designs. Prototypes ready in 5-7 day.

Why Choose Finned Designs?

✔️Adaptability – Ideal for low-to-high airflow environments.
✔️Scalability – Extruded, CNC-machined, or stamped for any production volume.
✔️Performance – Balance thermal resistance, weight, and cost.

Technical Specification Table

Finnned Heat Sink Technical Details
ParameterSpecifications
MaterialAluminum 6063-T5, Copper C110, Hybrid Composite
Fin Height5–150mm
Fin Thickness0.5–5mm
Fin Spacing
1–10mm
Surface FinishMill finish, anodized, nickel-plated
Thermal Resistance
0.1–2.0°C/W (depending on airflow/material)
Certifications
ISO 9001, IATF 16949, RoHS, UL

Types of Finned Heat Sinks

Straight-Fin Heat Sinks

Parallel fins for uniform airflow in servers, power supplies, and LED arrays.

Applications: Data centers, telecom base stations


Wave-Fin Heat Sinks

Curved fins to disrupt laminar airflow, enhancing turbulence and cooling efficiency.

Applications: Automotive inverters, industrial motor drives

High-Fin-Density Arrays

Ultra-thin fins (0.5–1mm) for compact spaces in drones and medical devices.


Applications: UAVs, portable ultrasound machines

Cross-Cut Finned Designs

Perpendicular cuts in fins to create turbulence in low-airflow environments.

Applications: Natural convection cooling for solar inverters, IoT hubs

Applications & Industries

Finned Heat Sinks Powering Critical Systems

High-Performance Computing

Cool multi-core CPUs and GPUs in servers and AI workstations with high-fin-density aluminum arrays.

Electric Vehicle Power Systems

Copper finned heat sinks for 800V SiC inverters, ensuring thermal stability at peak loads.

Industrial LED Lighting


Anodized aluminum finned designs for 200W+ high-bay LED fixtures.

Aerospace Avionics


Lightweight aluminum fins with vibration-resistant mounting for satellite communication systems.

Start your project now

Ready to Optimize Thermal Performance?
Submit your thermal requirements for a free finned heat sink design analysis!

Workflow

Customization Process

1
Consultation

Share your thermal requirements, size constraints, and environmental conditions.

2
Design & Simulation

We provide 3D CAD models and thermal analysis reports.

3
Prototyping

Test functional prototypes for performance validation.

4
Production

Seamless transition to full-scale manufacturing.

Quality Engineered for Reliability

Certifications & Quality Assurance

Every finned heat sink undergoes thermal imaging and airflow simulation validation.

ISO 9001:2015 & AS9100 IATF 16949

RoHS/REACH Compliance

UL 94 Flame-Retardant Ratings

Request a Proposal

Let us bring your vision to life.

Share your project details, and we’ll craft a tailored proposal just for you.
Start Now
