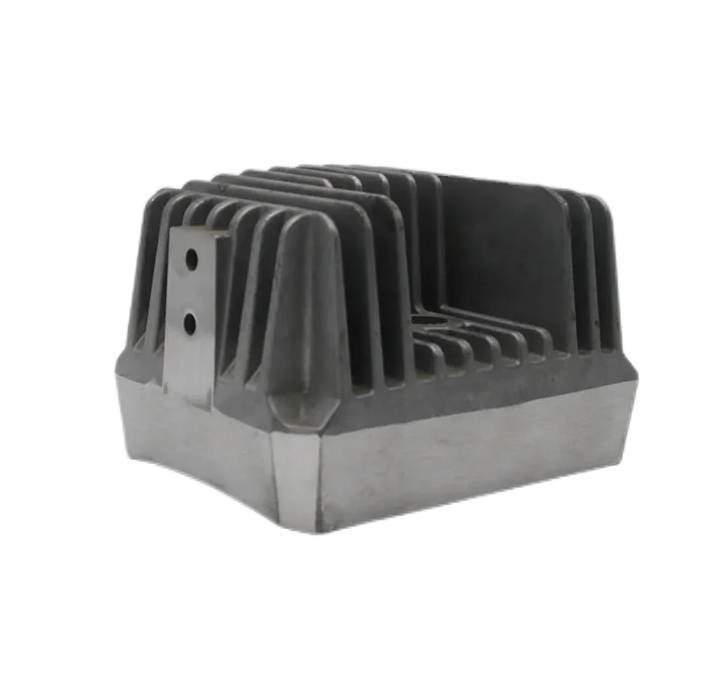

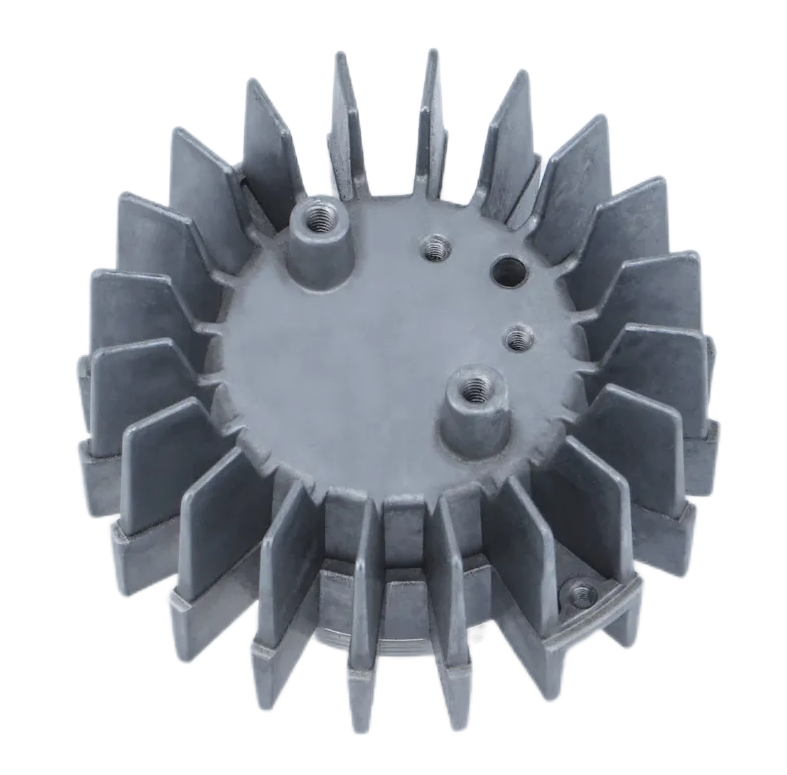

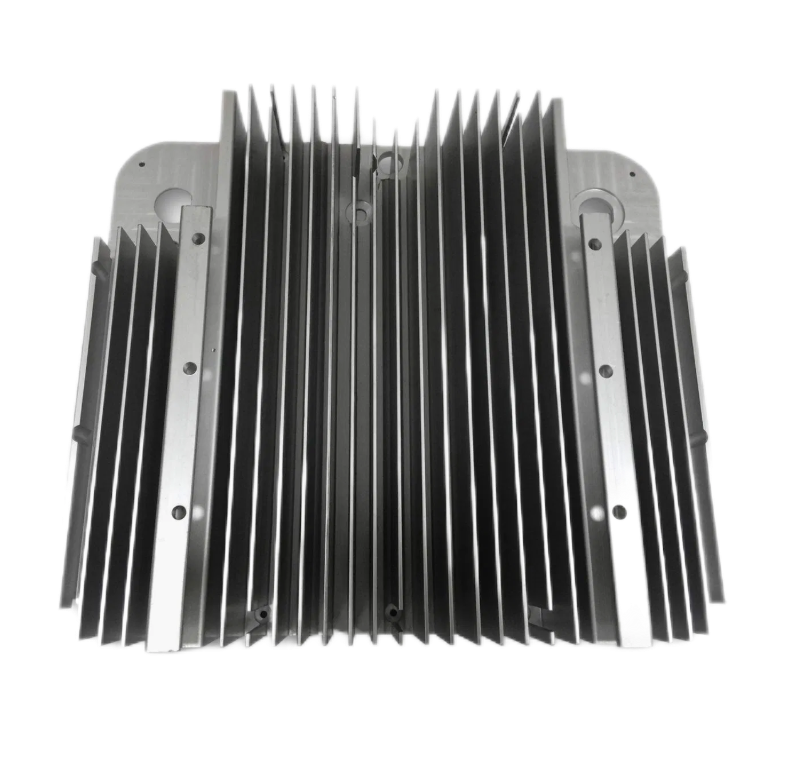

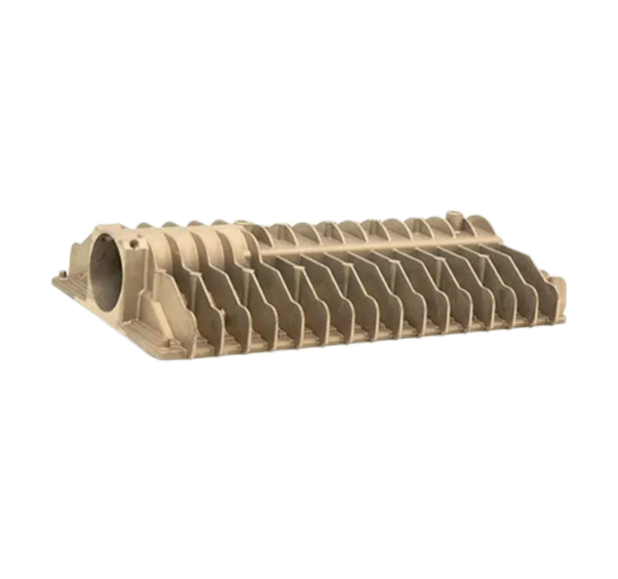

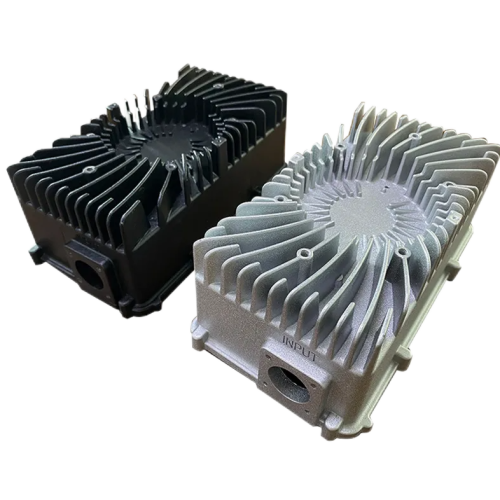

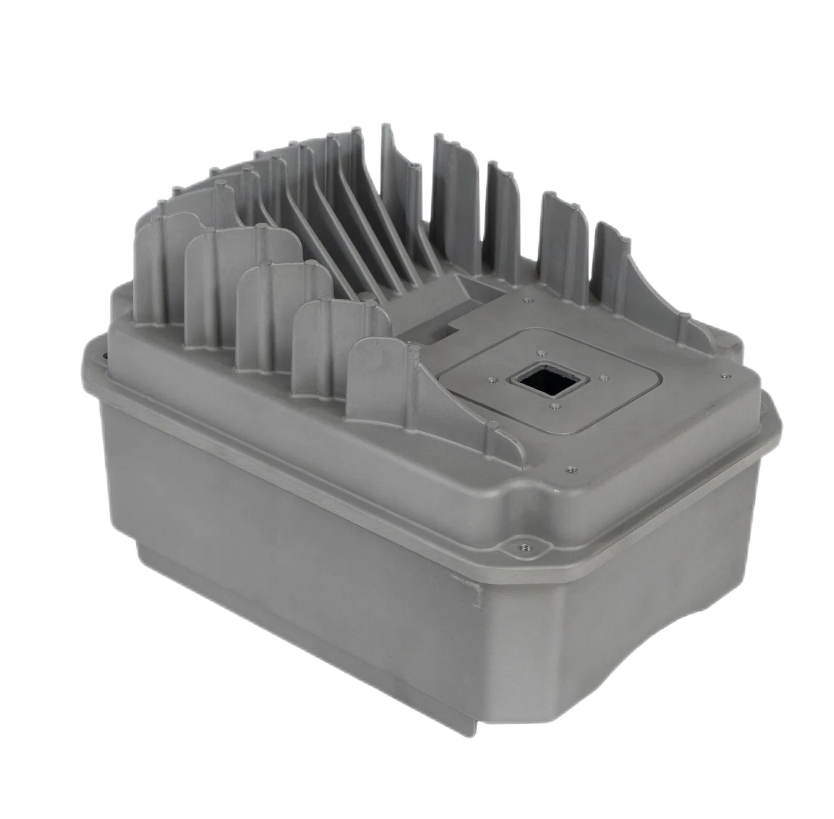

Die-Cast Heat Sink

High-Strength Die-Cast Heat Sinks for Complex Thermal Solutions

✓ Net-Shape Complex Designs (No Secondary Machining)

✓ Aluminum ADC12, Zinc ZA-8, or Custom Alloys

✓ High Structural Integrity & EMI Shielding

✓ ISO 9001 & IATF 16949 Certified

✓ Mass Production (50k+ Units/Month)

Why

Fecision?

Precision At Fecision

Custom CNC Machining & Molded Solutions

As a leading CNC machining and mold manufacturing service provider, we deliver tailored heat sink solutions using advanced materials and manufacturing techniques, including CNC milling, extrusion, die-casting, and bonded fin technology.

Optimized Thermal Performance

CFD-simulated designs for maximum heat dissipation

Durability

Corrosion-resistant finishes for harsh environments

Custom Designs

Collaborate with our engineers for application-specific solutions

Cost Efficiency

Competitive pricing for both low/high-volume orders

Global Compliance

Meet RoHS, REACH, and ISO 9001 standards

Die-Cast Heat Sinks

Die-cast heat sinks are manufactured by injecting molten metal (e.g., aluminum or zinc) into reusable steel molds, creating intricate, near-net-shape cooling components. This process excels for high-volume applications requiring complex geometries, such as integrated mounting bosses, cavities, or EMI shielding enclosures.

Our proprietary Technology optimizes mold cooling channels and gate placement, achieving 15% faster cycle times and 10% lower porosity than industry standards. Prototype tooling ready in 10-14 days, mass production in 3-4 weeks.

Why Choose Die-Casting?

✔️Cost-Effective Complexity – Combine heat sinks with enclosures, brackets, or connectors in a single part.

✔️Rapid High-Volume Production – Cycle times as low as 30 seconds per part.

✔️Material Versatility – Aluminum for lightweight cooling, zinc for EMI/RFI shielding.

✔️Durability – Seamless designs resist vibration and thermal cycling fatigue.

Technical Specification Table

Die-Cast Heat Sink Technical Details

Parameter	Specifications
Material	Aluminum ADC12, Zinc ZA-8, AlSiC, Custom Alloys
Thermal Conductivity	90–200 W/mK (material-dependent)
Max Dimensions	300mm (L) x 250mm (W) x 100mm (H)
Wall Thickness	1.5–10mm
Surface Finish	As-cast, bead-blasted, powder-coated, anodized
Certifications	ISO 9001, IATF 16949, RoHS, UL, EN 62368
