CNC Machining Capabilities
Fecision offers comprehensive CNC machining services from rapid prototyping to full-scale production, serving diverse industries with precision and reliability.

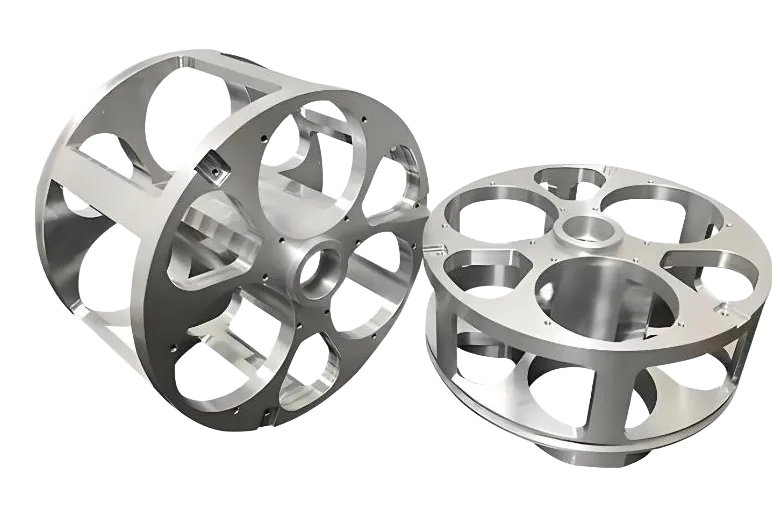

CNC Machining Services
What is CNC Machining

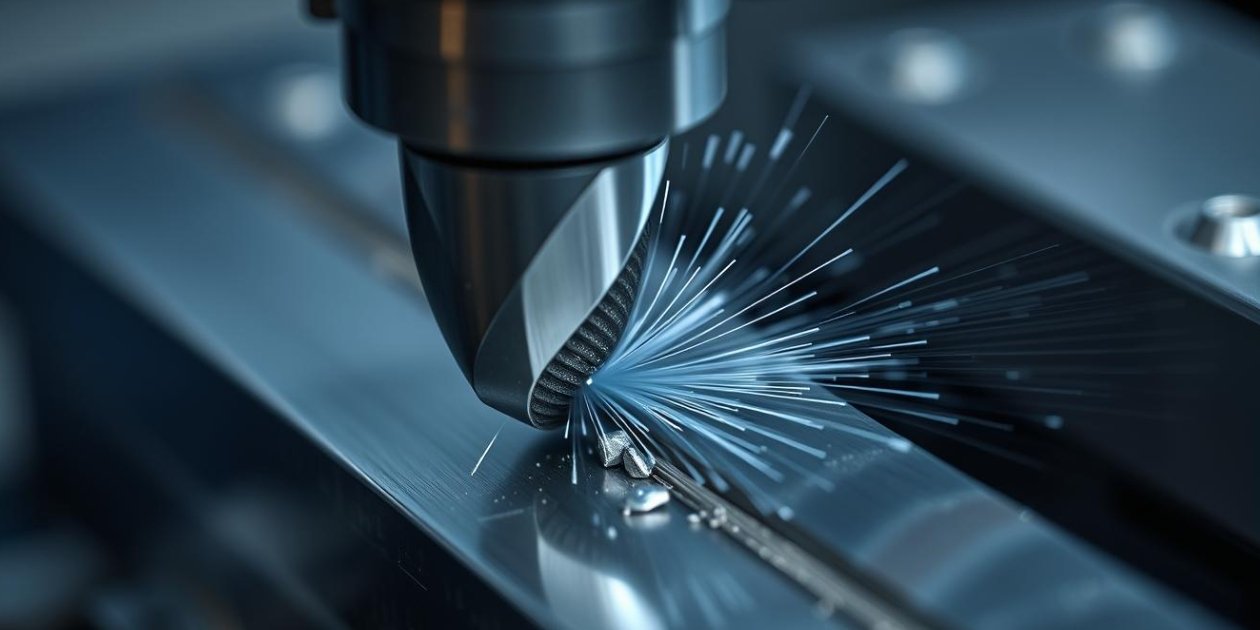

How Does CNC Machining Work
The CNC machining process follows a systematic workflow that transforms digital designs into physical components with exceptional accuracy:
Design creation using Computer-Aided Design (CAD) software
Conversion to machine instructions via Computer-Aided Manufacturing (CAM) software
Generation of G-code that controls machine movements
Setup of workpiece and cutting tools in the CNC machine
Automated machining process with minimal human intervention
Quality inspection and finishing operations
CNC Machining Process
Turning
Milling
Turn-Mill
Drlling
EDM
Grinding
Laser Cutting
CNC Machining Specifications
CNC machining is highly valued for its precision, repeatability, and flexibility, making it a vital process for producing parts across numerous industries.
Features | Description | |
Standard Lead Time | Genarally 1-5 business days for Prototypes Depending on part complexity, material choice, machine availability, finishing requirements, and volume | |
Tolerances | Standard Tolerances | Within ±0.005 inches (±0.127 mm) to ±0.01 inches (±0.254 mm) |
Precision Tolerances | As tight as ±0.0001 inches (±0.0025 mm) | |
Without Drawing | Refer to ISO2768 Medium | |
Edge Finish | By default, sharp edges are softened and deburred during the machining process | |
Surface Finish | Around Ra12.5μm – Ra1.6μm for general machining process Additional finishing options can be specified to ahchieve high precision | |
Axes of Movement | 2-Axis/3-Axis/5-Axis | |
CNC Machining Materials
Metal Materials
- Aluminum Alloys: 6061, 6063, 7075, 7050, 2024, 5052
- Stainless Steel: 303, 304, 316/316L, 410, 416, 420, 440C, 17-4 PH, 15-5 PH, 18-8 PH
- Carbon Steel: 1018, 1215, A36, 1045, 4130, 4140/4140 PH, 4340, 8620
- Titanium Alloys: Ti-6Al-4V, Ti-5Al-2.5Sn, Grade 2, Grade 5
- Copper & Brass Alloys: C11000 (Copper), C36000 (Brass)
- Nickel Alloys: Inconel, Monel, Hastelloy
- Tool Steel: D2, A2, M2, S7

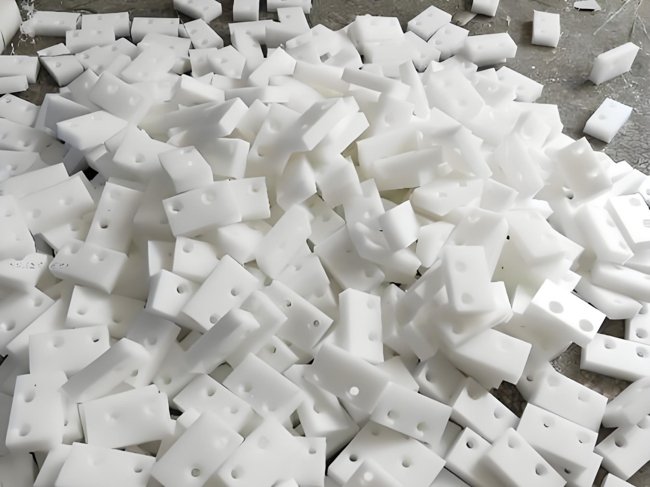

Plastic Materials
- Acrylic (PMMA)
- Polycarbonate (PC)
- Polyethylene (PE): HDPE, LDPE
- Polypropylene (PP)
- Polyamide (Nylon): PA6, PA66
- Polyetheretherketone (PEEK)
- Acetal/POM (Delrin)
- Polytetrafluoroethylene (PTFE, Teflon)
- ABS (Acrylonitrile Butadiene Styrene)
- Ultem (Polyetherimide)
- Garolite
- UHMW PE
- PVC
- ULTEM

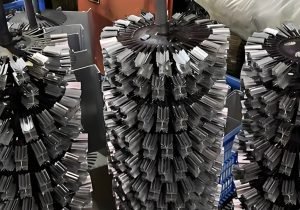

CNC Machining Surface Finishing
Powder Coating
Applies dry powder via electrostatic spray, cured by heat to form a hard, durable finish with minimal VOCs.

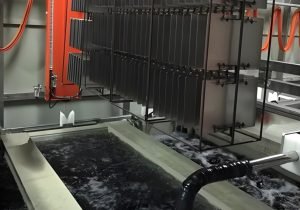

Anodizing
Electrochemically grows oxide layers on metals, boosting durability, corrosion resistance and coloring ability.
Polishing/Buffing
Refine surfaces with abrasives/polishes to enhance smoothness, shine, and remove minor imperfections.

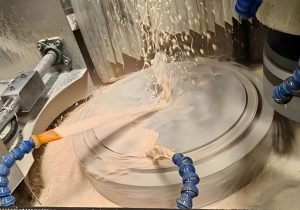

Passivation
Removes free iron contaminants and enhances stainless steel’s corrosion resistance.
Sandblasting/Shot Peening/Bead Blasting
Use particles (sand, shots, beads) to clean, texture, or strengthen surfaces via high-velocity impact.
PVD (Physical Vapor Deposition) Coating
Physical vapor deposition forms thin, hard films (e.g., metals, nitrides) on surfaces for wear, corrosion resistance, and aesthetics.
Chemical Conversion Coating
Forms protective films via chemical reaction on metal surfaces, enhancing corrosion resistance and paint adhesion.

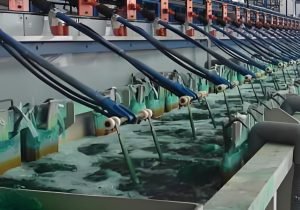

Electroplating (e.g., Nickel, Chrome, Zinc)
Deposits metal layers onto substrates via electrolysis, improving appearance, wear and corrosion resistance.

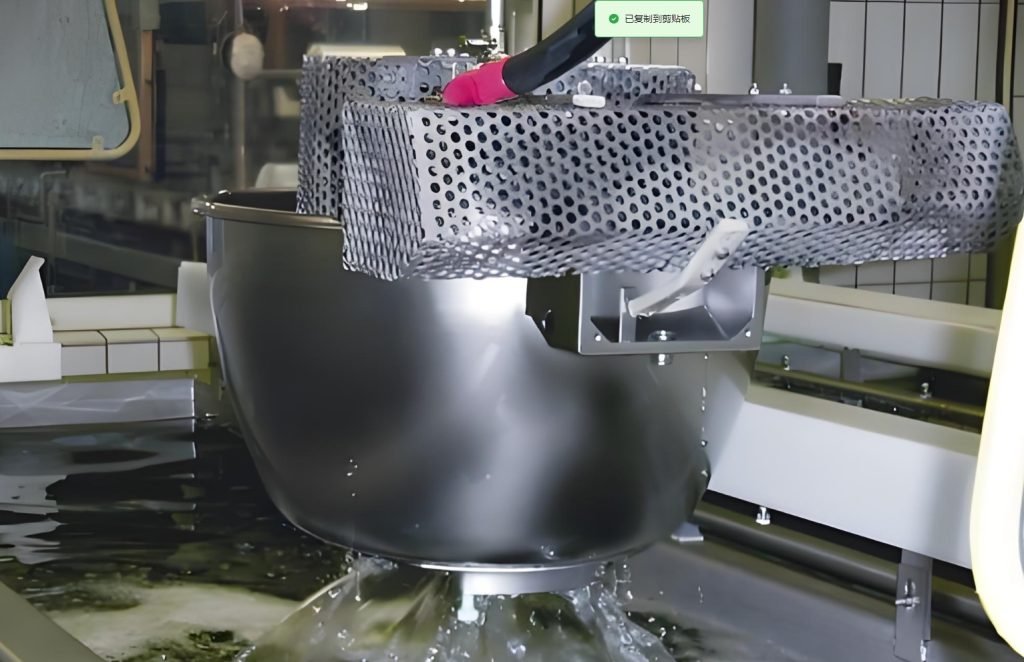

Electropolishing
Smooth metal surfaces by removing surface material, enhancing shine and corrosion resistance.
Heat Treatment
Controlled heating/cooling of materials to alter properties like hardness, ductility, or strength.

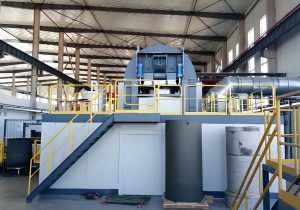

Painting (e.g., E-Coating)
Applying liquid coatings (paints) to surfaces for protection, decoration, or corrosion resistance via brushing/spraying.
Laser Marking
Using laser beams to engrave permanent marks (text, logos) on surfaces with high precision and minimal damage.
Special CNC Machining

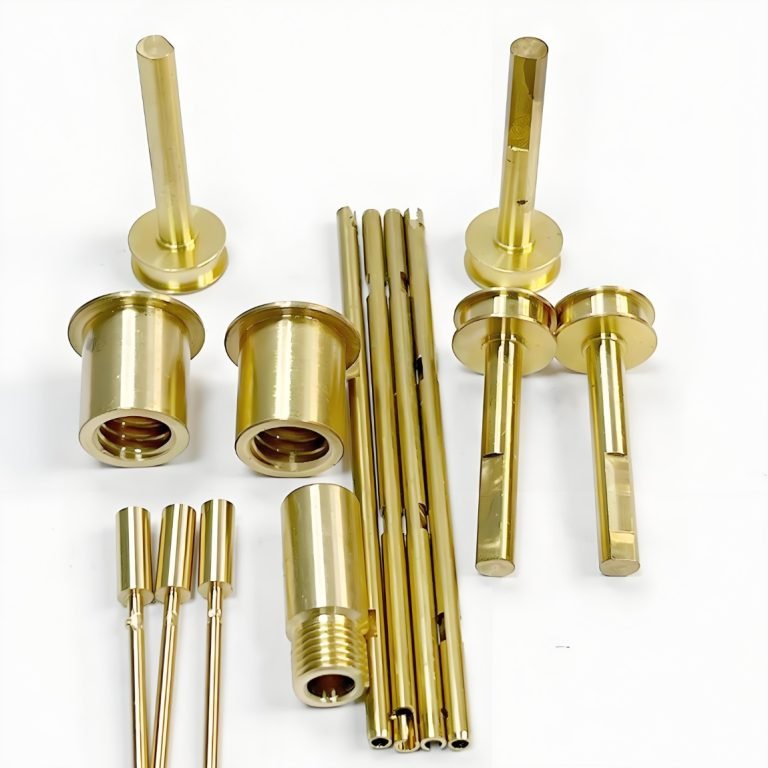

Precision Swiss Machining
Swiss machining represents the pinnacle of precision for small, complex components where tolerances and surface finish are critical.
At Fecision, we've mastered this specialized process to deliver exceptional results across medical, aerospace, automotive, and electronics applications.
Tight Tolerances
Our Swiss machining capabilities routinely achieve tolerances of ±0.0001" (2.5 microns) on diameter and ±0.0002" (5 microns) on length, with surface finishes as fine as 16 Ra microinches. For specific applications, even tighter tolerances may be possible.
Material Selection
Material selection significantly impacts Swiss machining results. The process requires high-quality bar stock with consistent diameter and straightness. Our materials experts can recommend optimal materials for your application, balancing machinability, mechanical properties, and cost considerations.
Whether you’re designing a new product that requires tight-tolerance components or looking to improve an existing design, our Swiss machining expertise can help you achieve superior results. Our engineering team works closely with you from concept to completion, ensuring your parts meet or exceed specifications while optimizing for manufacturability and cost-effectiveness.

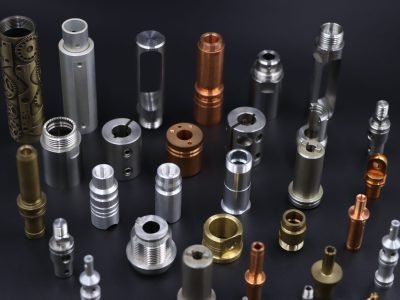

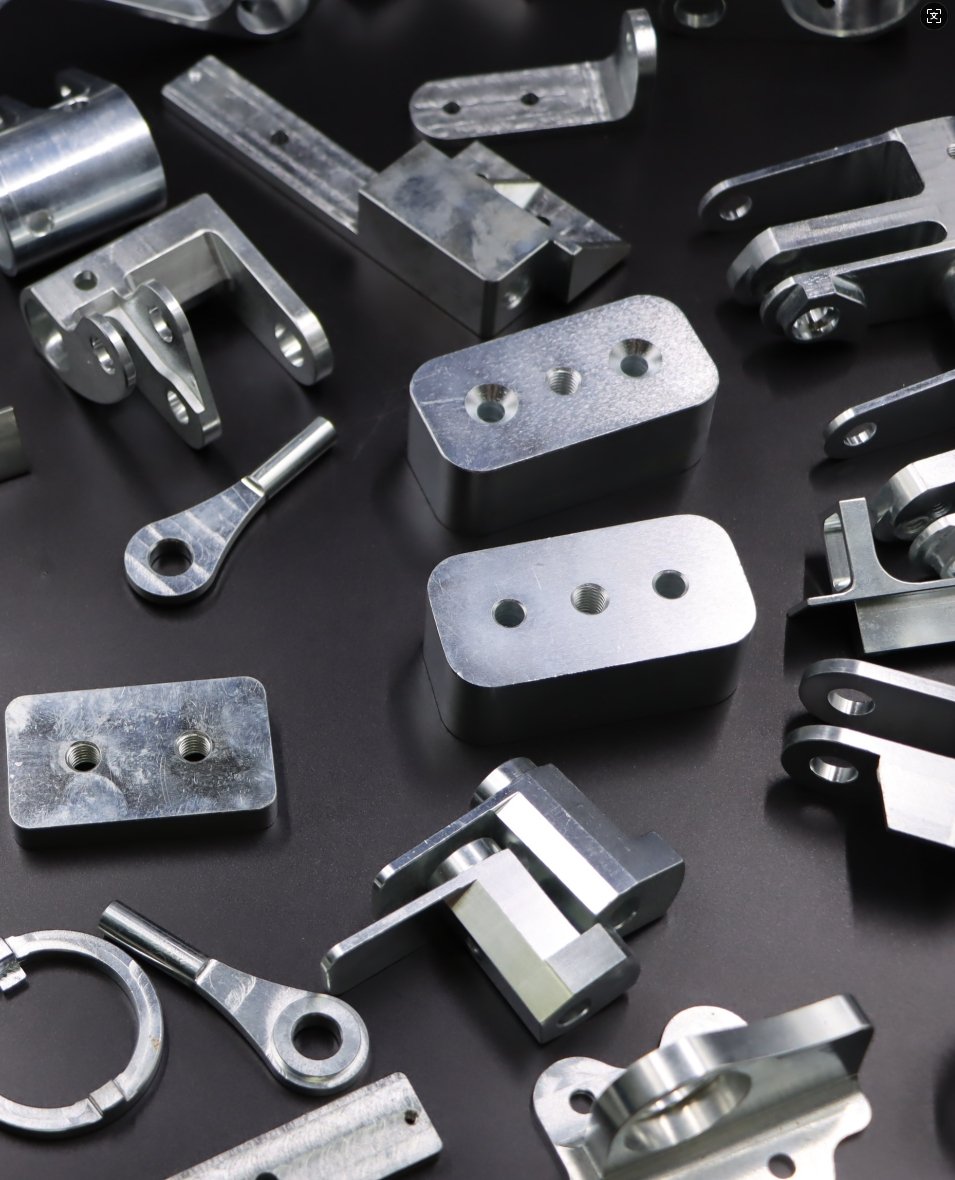

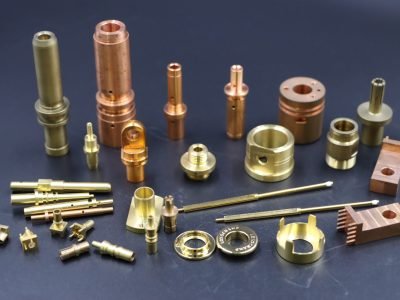

CNC Machining Products Display
CNC Machining Design Guidelines
General Design Recommendations
- Design with uniform wall thickness when possible
- Avoid sharp internal corners; use fillets with minimum radius of 1/3 the depth
- Maintain minimum wall thickness of 0.8mm (0.031″) for metals and 1.5mm (0.059″) for plastics
- Design parts to be machined from standard stock sizes
- Consider tool access and workholding requirements
Feature-Specific Guidelines
- Minimum hole diameter should be at least 1/3 of the depth
- Maintain minimum thread engagement of 1.5× the diameter
- Avoid deep pockets with small corner radii
- Design undercuts to be accessible by standard tools
- Specify critical dimensions and tolerances clearly
Tolerances and Size Limitations
Standard Tolerances
| Dimension Type | Standard Tolerance | Precision Tolerance |
| Linear Dimensions | ±0.005″ (0.127mm) | ±0.0005″ (0.0127mm) |
| Hole Diameter | ±0.002″ (0.051mm) | ±0.0005″ (0.0127mm) |
| Position | ±0.003″ (0.076mm) | ±0.001″ (0.0254mm) |
| Surface Finish | 32-125 μin Ra
| 8-32 μin Ra
|
Size Limitations
| Machine Type | Maximum Dimensions | Notes |
| 3-Axis Mill | 24″ × 16″ × 8″ (610 × 406 × 203mm) | Standard production |
| 5-Axis Mill | 20″ × 16″ × 10″ (508 × 406 × 254mm) | Complex geometries |
| CNC Lathe | 10″ dia. × 24″ length (254 × 610mm) | Cylindrical parts |
| Large Format Mill | 60″ × 30″ × 20″ (1524 × 762 × 508mm) | Limited availability |
Our CNC Machining Center
Fecision's state-of-the-art manufacturing facility is equipped with advanced CNC machines and inspection equipment to deliver precision parts with exceptional quality.

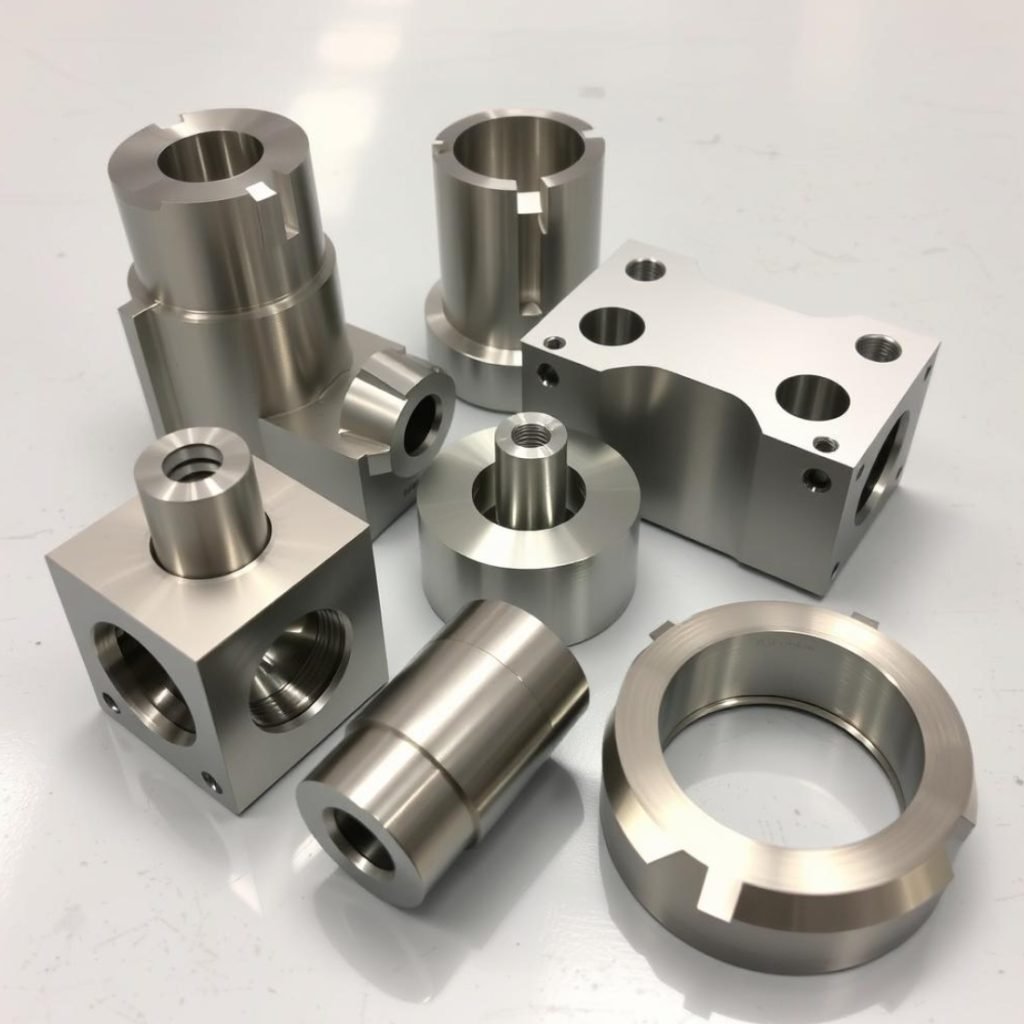

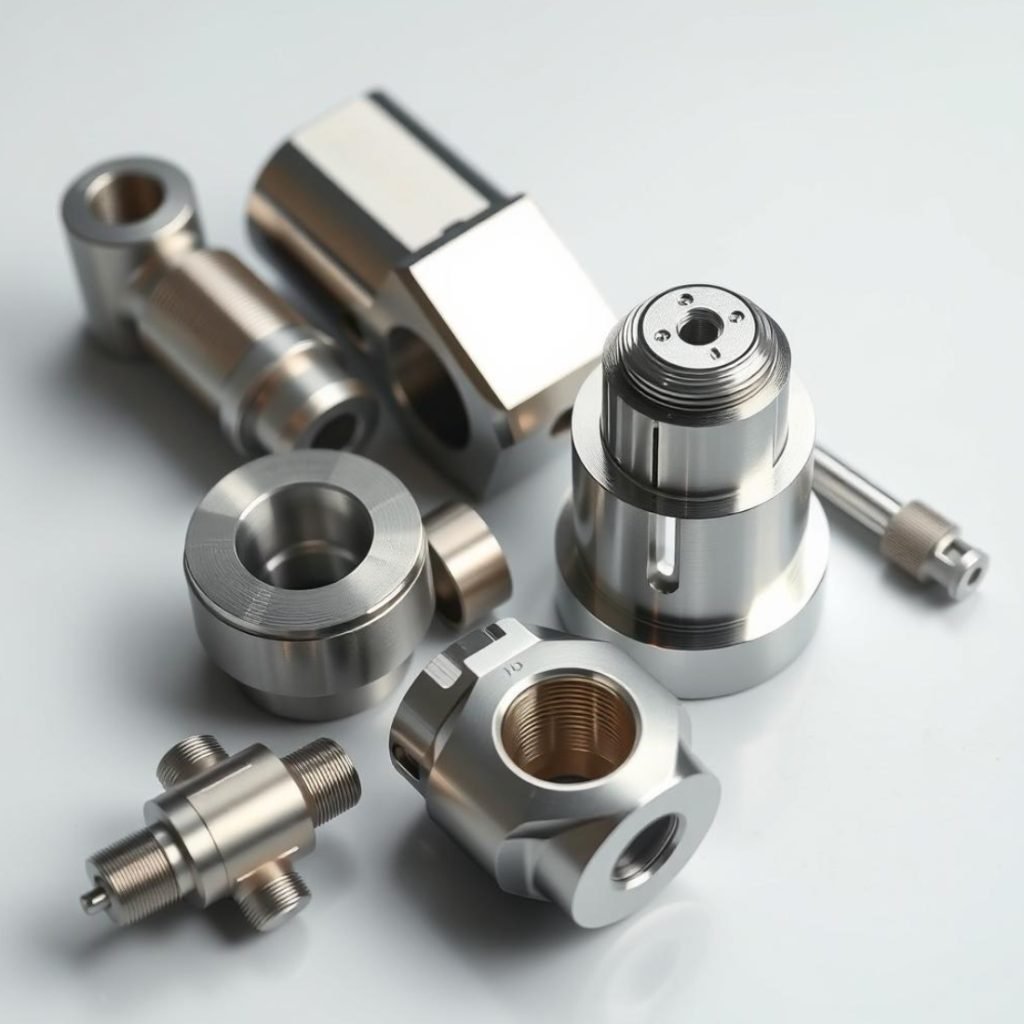

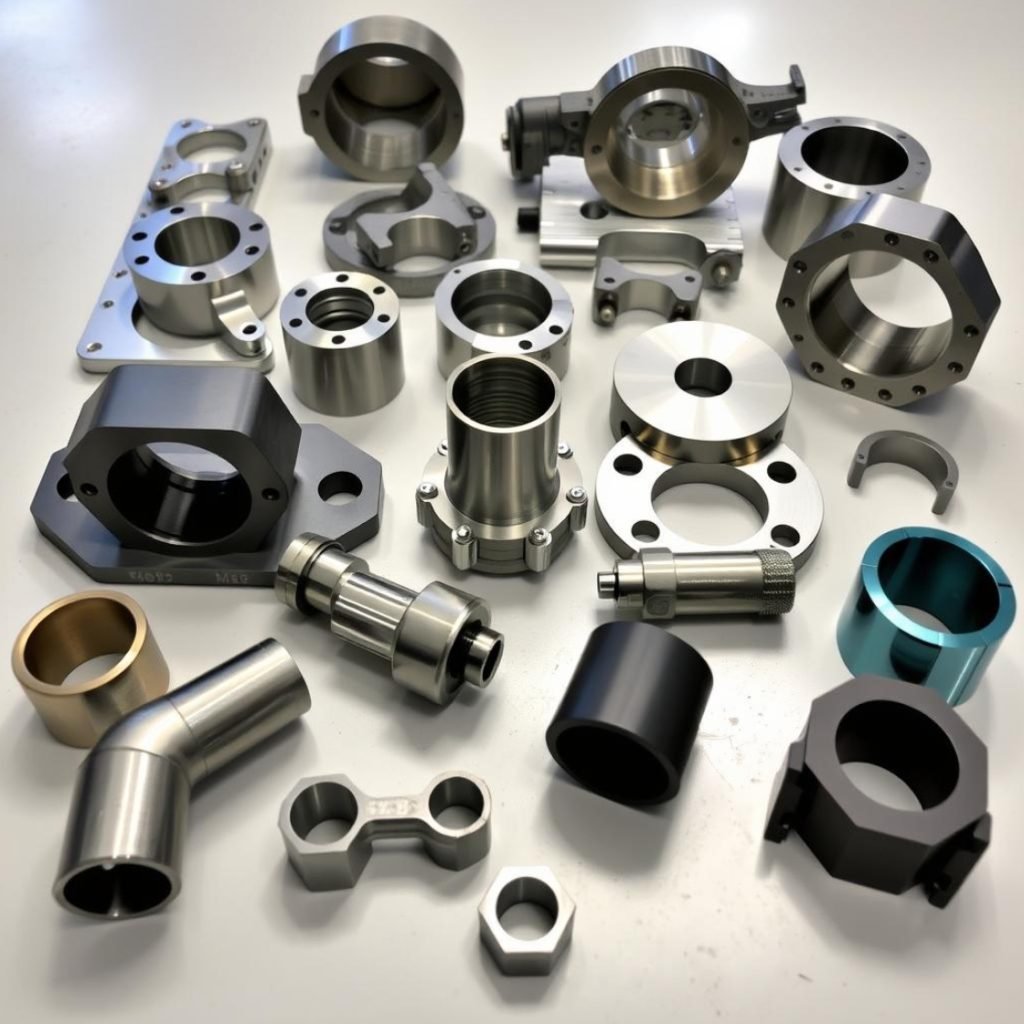

Applications of CNC Machining
Our CNC machining services support a wide range of applications across diverse industries:

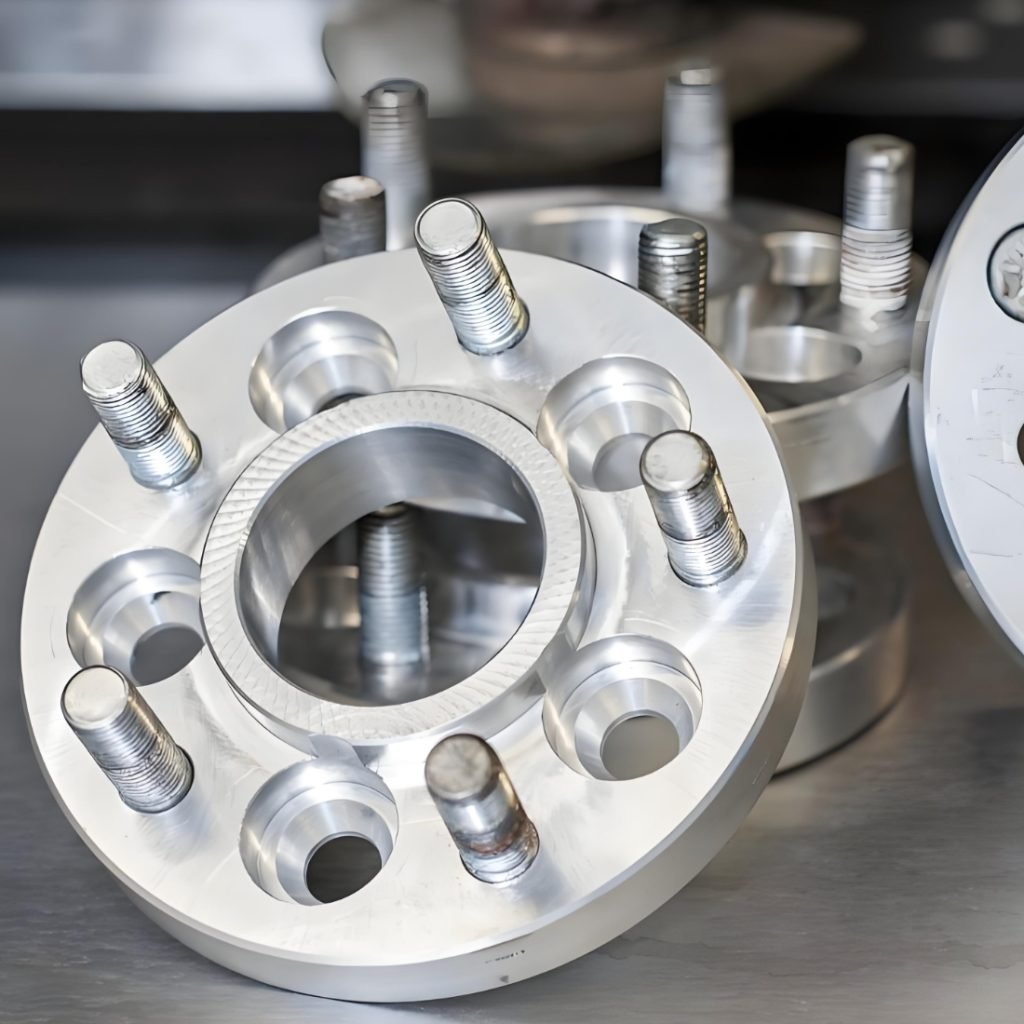

Robotics
- Joint components
- Robot exoskeleton structures
- Transmission system parts
- Sensor mounting brackets

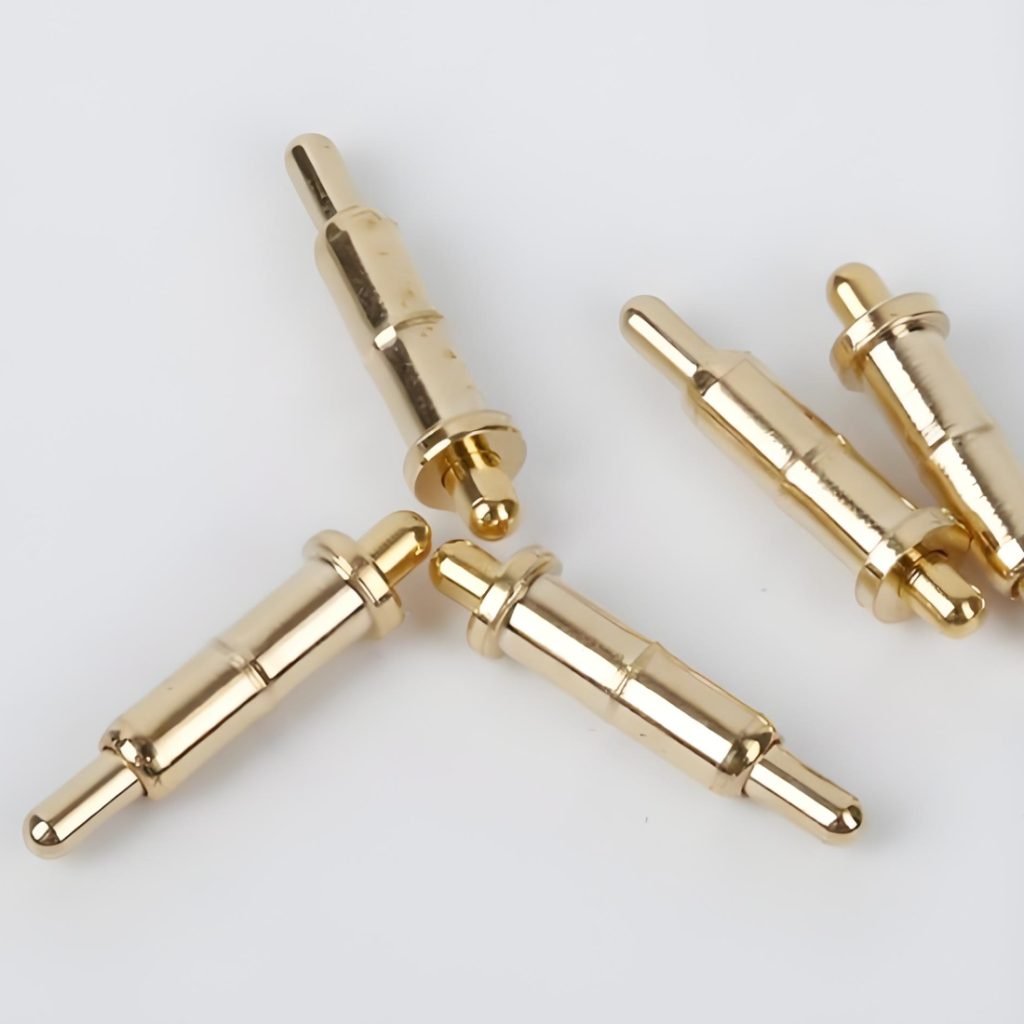

Electronics & Semi-Conductor
- Heat sink component
- Enclosure parts for devices
- Precision lead frames
- Wafer handling fixtures

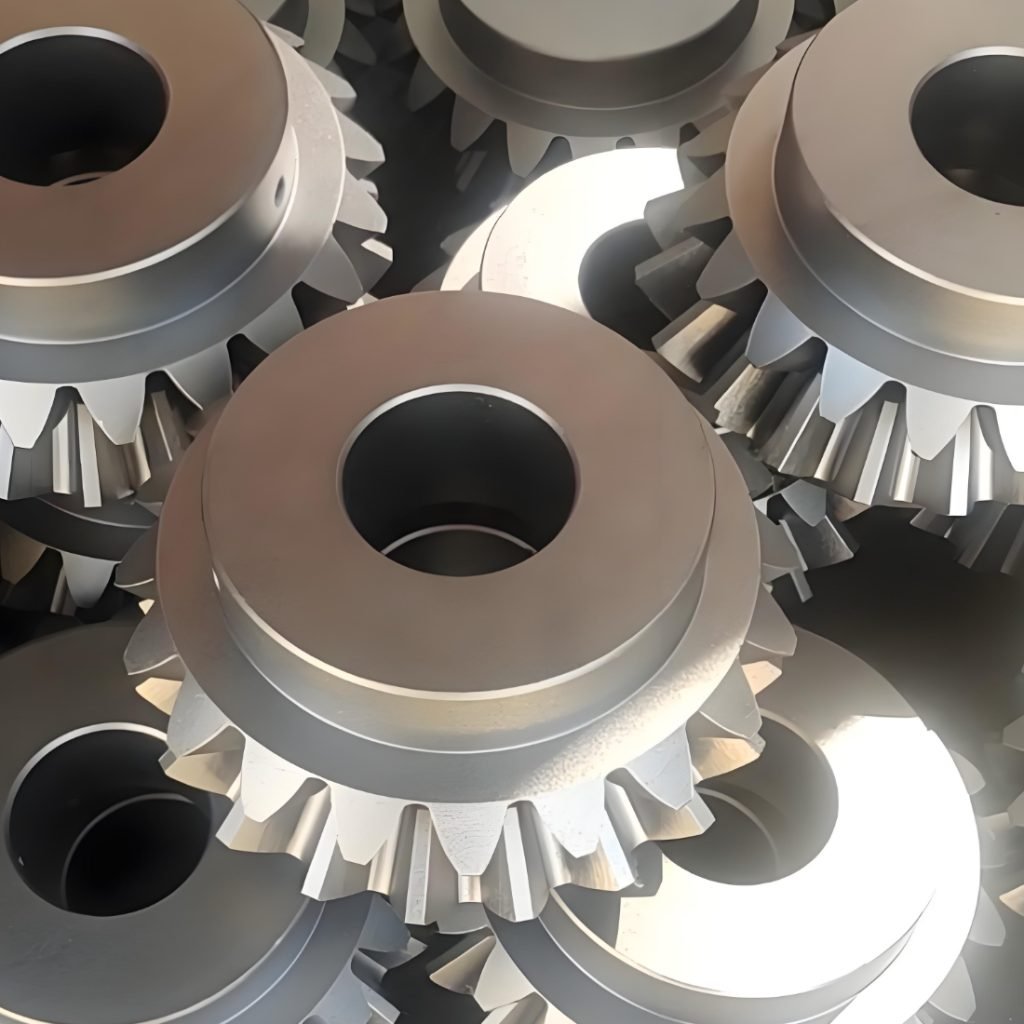

Industrial Equipment
- Gearbox components
- Hydraulic system parts
- Machine tool structural frames
- Conveyor system precision parts
Factors to Consider
Lower CNC Service Price
At Fecision, we strive to provide competitive pricing without compromising quality. Here's how we keep our CNC machining services cost-effective:
Our Cost Advantages
Advanced Automation: Reduces labor costs and increases efficiency
Optimized Workflows: Minimizes setup time and maximizes machine utilization
Volume Discounts: Significant savings for larger production runs
Material Optimization: Efficient nesting and material selection
Design for Manufacturing: Expert feedback to reduce machining complexity
Design Tips to Reduce Costs
Avoid unnecessarily tight tolerances where not needed
Design with standard tool sizes in mind
Minimize the number of setups required
Use standard materials when possible
Simplify geometries where functionality permits
Why Fecision for CNC Machining?
Advanced Technology
Traditional machining methods may not be able to deal with complex geometries and high-precision parts. Our multi-axis machines, ranging from 3-axis to 5-axis CNC machines, enable us to perform intricate cuts, angles, and curves.
Experienced Engineering Team
Our engineering team has decades of experience in CNC machining and design optimization. At Fecision, we specialize in Design for Manufacturability (DFM) and leverage advanced CAD/CAM software to ensure smooth integration between design and machining processes.
Versatility Across Materials
Fecision offers a broad spectrum of material options to match the needs of your specific application. Meanwhile, we provide guidance on material selection based on part performance requirements such as strength, corrosion resistance, or wear resistance, ensuring optimal results.
Quality Assurance
Our products are trusted by high-profile customers from industries across global, meeting strict and complete quality standard. Access to ISO 9001: 2015 quality certification and our manufacturing partners certified to ISO 13485: 2016, ISO 14001: 2015, and IATF 16949: 2016.
Fast Turnaround Times
We recognize the critical need for timely delivery. Most machines of our partner manufactuers run 7*24 hours with integrated process. Through streamlined workflows and optimized production processes, we ensure fast lead times while maintaining the highest standards of quality.
Commitment to Sustainability
Fecision is committed to minimizing waste and reducing our environmental impact. We prioritize sustainable practices such as material recycling, energy-efficient operations, and waste reduction in our machining processes.
Start CNC Machining
Submit Technical Files
xport your design to a CNC-compatible CAD format. For CNC machining, we advise STEP format as it’s more standardized and can be used across platforms. A technical drawing is helpful, especially for threads, tolerances, or specific finishes.
DFM & Quotation
Our engineers analyze your design for manufacturability, check tolerances and materials. Please be aware that further discussions may be needed during the process. We then provide a detailed quote including lead time, costs, and other infomation you may need.
Precision Manufacturing
Upon your confirmation to the design, our team will begin CNC machining. Using advanced CNC machines, we mill, turn or grind parts per your design. Real-time monitoring ensures adherence to tolerances, with material traceability maintained throughout production.
Inspection & Delivery
Parts undergo strict QC via CMM or 3D scanning. We issue inspection reports, pack securely and ship, offering tracking info. Rush delivery options are available upon request.
Validated Performance, Guaranteed Quality
Commitment to Quality & Validation
We employ rigorous validation protocols, including in-process and final CMM inspection, steel certifications, heat treat certifications, and comprehensive mold trials (T1, T2...) to ensure your mold performs flawlessly and meets all specifications from the first shot. Trust our ISO-certified quality system.
Ready to Start Your CNC Machining Project?
Together, we can make something remarkable!
From prototype to production, Fecision delivers precision CNC machined parts with exceptional quality and competitive pricing.
CNC Machining FAQs
Fecision offers flexible lead times to fit your budget while ensuring your project stays on track. We can deliver CNC parts in as little as 2 days.
Yes, CNC machining is ideal for prototyping because it allows for rapid production of high-precision parts with a wide range of materials. It is often faster and more cost-effective than other methods like 3D printing for functional prototypes.
Yes, CNC machining is suitable for both small-scale and large-scale production. For high-volume runs, it can be combined with automation to improve efficiency.
At Fecision, we understand the importance of safeguarding your design IP, particularly when dealing with high-value projects. That’s why our platform is built with top-tier security and confidentiality at its core. From login to file upload to part delivery, you can trust that your intellectual property is protected within our secure Digital Manufacturing Ecosystem.
We are committed to delivering the highest quality parts right from the start. That’s why Fecision offers DFM analysis at no charge, ensuring you have all the confidence you need before placing your cnc machining order.
Common file formats include: STEP (.stp), IGES (.igs), STL (.stl), DXF (.dxf), DWG (.dwg). It would be better if you can provide STEP as file format as it’s more standardized and can be used across platforms.
Fecision is ISO 9001 and ISO 14001 certified, ISO 13485 compliant, and has IATF 16949 approved manufacturing partners.
Other Services

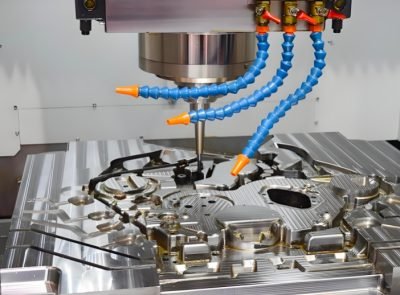

Mold Tooling
