| Direkte Antwort Silicone rubber does not melt. As a thermoset elastomer, it maintains structural integrity until thermal degradation begins around 300–350°C. Standard grades operate continuously up to 200–230°C; high-temperature specialty grades extend this to 250°C continuous. Below -50°C to -60°C, most grades remain flexible where organic rubbers would embrittle and crack. [1]. |
Silicone rubber has no melting point. That statement catches engineers off guard — especially those coming from thermoplastic backgrounds — but it’s the most important thing to understand before specifying silicone for any high-temperature application. What silicone does have is a continuous service limit, a short-term peak tolerance, and an irreversible degradation temperature.
So what would happen to silicone materials when they’re exposed to high temperatures? As a manufacturer, understanding the thermal properties of silicone rubber is crucial for producing high-quality products. So let’s explore more.

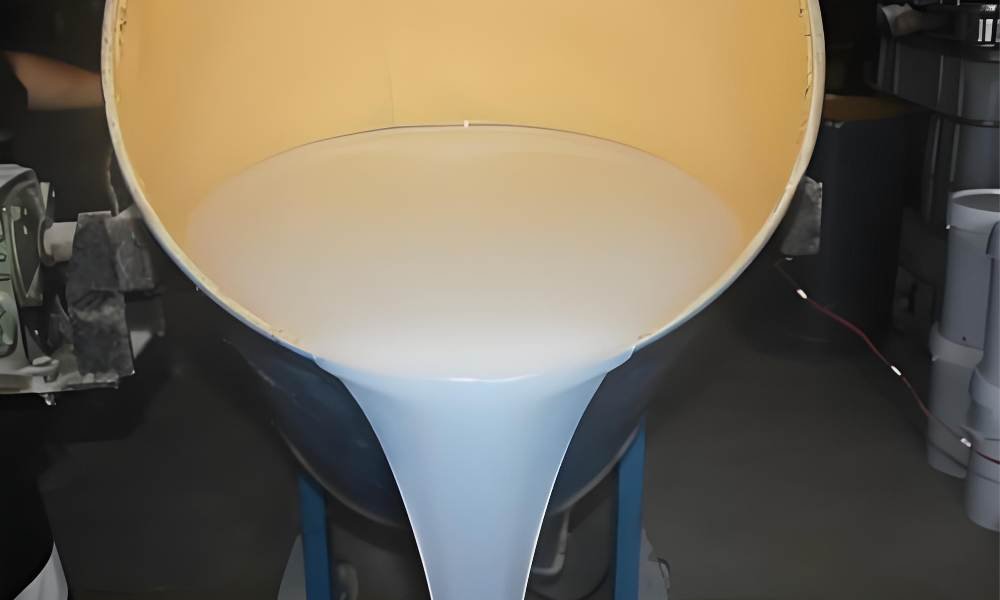

What Makes Silicone Rubber Thermally Different
The reason silicone behaves differently from polyurethane, EPDM, or nitrile rubber at elevated temperatures comes down to chemistry. Silicone’s backbone is built on silicon-oxygen bonds (Si-O-Si) rather than the carbon-carbon chains that organic rubbers depend on. Si-O bond energy is approximately 444 kJ/mol; C-C bonds break at around 346 kJ/mol. That difference is why silicone starts degrading 50–100°C above where most organic elastomers fail.
The molecular structure — alternating silicon and oxygen atoms with organic side groups attached to the silicon — also explains silicone’s resistance to oxidation. At temperatures where organic polymers are already reacting with atmospheric oxygen, silicone’s inorganic backbone stays relatively stable. The organic methyl or phenyl side groups eventually oxidise, but the core siloxane chain holds longer.
One consequence of this structure that doesn’t always make it into datasheets: silicone’s coefficient of linear thermal expansion runs between 200 and 400 × 10⁻⁶/K — significantly higher than most metals. In tight-tolerance assemblies where silicone seals against aluminium or steel, this difference matters for long-term sealing performance and needs to be accounted for at the design stage, not just during material selection.
The Three Numbers That Actually Matter
Manufacturers publish ‘temperature ratings’ for silicone in ways that create confusion. There are three distinct figures to track separately:
1. Continuous service temperature — the highest temperature the material sustains for extended periods (thousands of hours) without significant loss of mechanical properties. For standard silicone: 200–230 °C.
2. Short-term peak tolerance — what the material survives for intermittent exposures (minutes to hours) without immediate failure. For standard grades: typically 250–300 °C. High-temperature specialty grades can tolerate intermittent peaks up to 300°C or briefly higher.
3. Thermal degradation onset — the temperature at which chemical breakdown becomes rapid and irreversible. For most silicone formulations: 300–370 °C. The material hardens, loses elasticity, and eventually chars. Below the auto-ignition temperature of approximately 450°C, it does not sustain combustion.
Schmilzt Silikonkautschuk tatsächlich?
No — and this matters for how you design the part and plan for end-of-life.
Silicone is a thermoset elastomer. During curing, polymer chains form permanent cross-links that heat cannot reverse. Once cured, the network structure is fixed. Apply enough temperature and the chain segments break — but they don’t transition to a liquid phase. Silicone degrades. It doesn’t melt [2]..
The degradation sequence: at sustained temperatures above 200°C, silicone gradually loses elongation and begins to harden. Above ~300°C, hardening and cracking accelerate sharply. Above ~370°C, rapid chain scission produces silicon dioxide (silica) and various gaseous by-products. The resulting silica residue can form a protective ceramic-like layer — which is why silicone char is used in fire-resistant cable insulation. The breakdown product has some protective function.
This irreversibility has a direct manufacturing implication. Unlike thermoplastics where scrap can be reground and reprocessed, degraded silicone cannot be reformed. In our LSR molding operation, parts that are set aside before deflashing need to be completed before any secondary thermal process — once the silicone has seen additional heat, the flash becomes harder to remove cleanly.

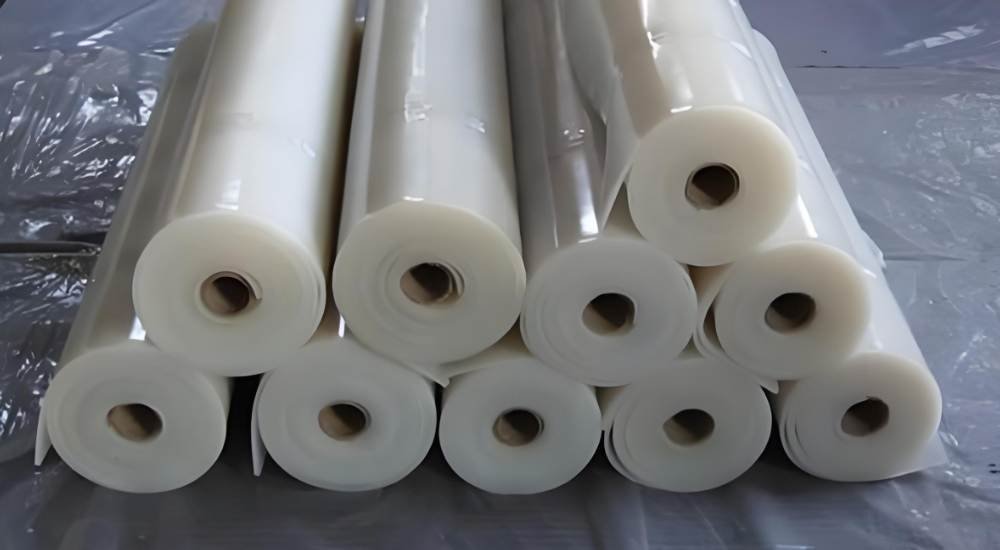

Temperature Ranges by Silicone Grade
Different silicone formulations are engineered for different operating ranges. The table below summarises the key grades with their continuous service limits, short-term peaks, and primary application areas.
| Klasse | Kontinuierlicher Service | Kurzfristiger Spitzenwert | Typische Anwendungen |
| Standard methyl (HTV/HCR) | −50 °C bis 200 °C | 250-300 ° C | General seals, gasketing, electrical insulation |
| High-temp (phenyl / metal oxide stabilised) | −50 °C bis 250 °C | 300°C+ | Engine bay seals, high-temp industrial gasketing |
| Schwer entflammbar | −50 °C bis 220 °C | ~ 280 ° C. | UL94-rated enclosures, fire-safe applications |
| LSR (standard grade) | −55 °C bis 200 °C | 250-300 ° C | Medical devices, food contact, precision sealing |
| Fluorsilikon | −65 °C bis 175 °C | ~ 220 ° C. | Fuel/oil contact, aerospace, chemical resistance |
| RTV (room-temp cure) | −50 °C bis 200 °C | 250-300 ° C | Mold-making, sealing, prototyping |
General-purpose silicone (HCR/HTV, standard methyl grades)
Continuous service: −50°C to 200°C. Short-term tolerance: to 250°C. These grades cover the majority of sealing, gasketing, and electrical insulation applications. The lower end — down to −50°C — is where silicone significantly outperforms EPDM and nitrile, both of which embrittle well before −40°C.
High-temperature silicone (phenyl-modified, metal oxide stabilised)
Continuous service: to 230–250°C. Short-term: to 300°C or higher with intermittent exposure. Phenyl groups substituted for some methyl side groups reduce the rate of oxidative chain scission. Iron oxide and cerium oxide additives delay degradation onset further [2].. These grades come at a material cost premium — typically 2–3× the base methyl silicone price.
Flammhemmendes Silikon
Continuous service: to 220°C while meeting UL94 or similar fire safety standards. Flame-retardant additives suppress combustion and limit smoke generation. The trade-off is a slight reduction in the upper temperature limit compared to standard high-temperature grades.
LSR (Flüssigsilikonkautschuk)
Continuous service: −55°C to 200°C for standard grades, comparable to HTV. LSR’s thermal profile is similar to HTV grades of equivalent durometer — the processing difference (injection vs. compression) doesn’t fundamentally change the final cured material’s thermal behaviour. LSR’s advantages are processing precision and biocompatibility, not a higher temperature ceiling.
Fluorsilikon
Continuous service: −65°C to 175°C — a narrower upper range than standard silicone, but with dramatically better resistance to fuels, oils, and solvents. Used in aerospace and automotive applications where both chemical and moderate thermal resistance are required simultaneously [3]..
Thermal Conductivity: Insulator vs. Heat-Dissipating Grades
Standard silicone rubber is a thermal insulator. Thermal conductivity typically runs 0.15–0.3 W/m²K — roughly 1,000× lower than aluminium (205 W/m·K). For cable insulation, oven door seals, and gasketing, this low conductivity is the desired property.
For applications requiring heat dissipation — LED thermal interface materials, power electronics potting, EV battery thermal management — thermally conductive silicone compounds are formulated with aluminium oxide, boron nitride, or similar fillers. These grades achieve 1.0–5.0 W/m²K, with some specialty formulations reaching higher. The trade-off: highly filled grades are stiffer and may require higher mold pressures to fill complex geometries.
The selection decision is straightforward: if the component needs to prevent heat transfer, standard silicone; if it needs to facilitate heat transfer, specify a filled conductive grade to the actual conductivity value your thermal model requires — not just ‘thermally conductive silicone.’
Factors That Shift the Degradation Temperature
The degradation onset isn’t a fixed number — it’s influenced by formulation, processing, and operating environment:
- Cross-linking density: Higher cross-link density means more thermal energy is required to break the network. HTV silicone cured at 170°C generally achieves higher cross-link density than room-temperature vulcanising (RTV) silicone, which is why HTV grades consistently outperform RTV in high-temperature continuous service [6].
- Reinforcing fillers: Fumed silica (typically 30–40 phr) increases mechanical strength and raises the temperature at which degradation becomes structurally significant. Metal oxide heat stabilisers (iron oxide, cerium oxide) further slow the oxidative pathway [7].
- Nachhärten: A post-cure at 200°C for 4 hours completes secondary cross-linking reactions and drives off residual volatile by-products. Parts intended for continuous service above 180°C should always be post-cured; the improvement in compression set and long-term heat resistance is measurable.
- Sauerstoffexposition: At 200°C in air, methyl silicone oxidises faster than in an inert atmosphere. Applications involving continuous high-temperature exposure in flowing air should use heat-stabilised grades with metal oxide packages.
- Contact duration: A silicone O-ring cycling to 280°C for 30 seconds per hour lasts far longer than one held continuously at 200°C. The ‘maximum temperature’ on a datasheet is not a binary threshold — it’s a rate parameter. Above the continuous service limit, degradation accelerates; the question is how fast, and whether service life requirements can still be met.
Manufacturing Process Considerations for LSR
From our production floor: the relationship between mold temperature and part quality in LSR injection molding is tighter than most designers expect.
Our standard LSR process runs mold temperatures at 170 ± 2 ° C.. At that temperature, a 1 mm wall section cures in approximately 5–6 seconds. The relationship is roughly linear with wall thickness — 5 seconds per millimetre as a working rule — but this changes with formulation viscosity and specific heat.
The cold runner system — maintained at 5–20°C — is what separates LSR processing from conventional injection molding. Feed channels stay below the activation threshold of the platinum catalyst; the cavity is where cure happens. A process stoppage of more than a few minutes can cause the material in the static mixer to begin advancing — a costly situation requiring a full purge sequence.
For parts that will see continuous service above 180°C, the post-cure step is non-negotiable. In our Class 1000 cleanroom cell, parts are post-cured at 200°C für 4 Stunden after initial molding. The difference in compression set between post-cured and non-post-cured samples at 180°C continuous service is typically 15–25 percentage points — large enough to determine whether a seal passes or fails long-term performance testing.
Our vacuum molding process at -0.08 MPa eliminates entrapped air in the cavity. For high-temperature applications, bubble-free molding matters not just for cosmetics but for thermal performance: a void in a silicone seal concentrates stress during thermal cycling, accelerating fatigue at exactly the locations where the material is working hardest.

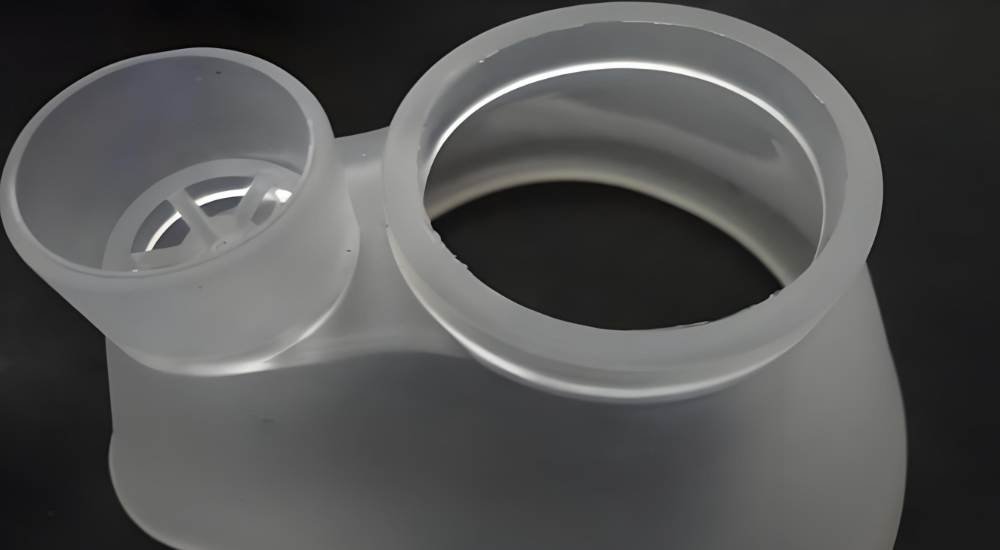

Branchen und Anwendungen
Silicone’s thermal profile makes it the right material for a specific category of applications: those where the operating temperature is too high for organic rubbers but not high enough to require ceramics or PTFE-based materials.
- Elektronik: Cable insulation for high-temperature wiring harnesses, potting compounds for power electronics, thermal interface pads for heat sink mounting.
- Medizinische Geräte: Sterilisable seals, catheter components, instrument grips, respiratory masks. Autoclave sterilisation at 134°C presents no challenge for standard medical LSR grades.
- Industrielle Fertigung: Oven conveyor seals, heat press pads, high-temperature gasketing for chemical processing equipment.
- Luft- und Raumfahrt: Environmental seals, fuel system components, avionics bay gasketing. The operating range (−55°C at altitude to 200°C+ near engines) maps almost exactly to silicone’s performance envelope.
Häufig gestellte Fragen
What is the actual degradation temperature of silicone rubber — not the service limit?
The two figures are different and need to be kept separate.
- The continuous service limit for standard grades is 200–230°C — the temperature below which the material maintains its rated mechanical properties for thousands of hours.
- Thermal degradation becomes rapid above 300–370°C, where chain scission accelerates and the material hardens and cracks irreversibly.
- Auto-ignition temperature is approximately 450°C. The number to design around is the continuous service limit — not the degradation temperature.
Can you tell by looking at silicone whether it has thermally degraded?
Yes, usually. Thermally degraded silicone hardens and loses its characteristic elasticity — it won’t return to its original shape after compression. Colour may shift yellow or brown. In advanced degradation, the surface cracks and becomes chalky. If a silicone component springs back fully when compressed and released, it hasn’t reached structural failure.
What is the typical working temperature range for silicone materials?
Standard grades: −50°C to 200°C continuous, with short-term tolerance to 250°C. High-temperature specialty grades: continuous to 230–250°C, short-term to 300°C+. Fluorosilicone: −65°C to 175°C with superior chemical resistance. Low-temperature specialty grades maintain flexibility to −60°C or below.
Wie beeinflusst die chemische Zusammensetzung von Silikon seine thermischen Eigenschaften?
The Si-O backbone provides base thermal stability. Methyl side groups offer standard performance; phenyl groups raise the upper temperature limit by slowing oxidative chain scission. Iron oxide, cerium oxide, and titanium dioxide additives delay degradation onset further. Cross-link density — set by the curing system and process parameters — determines how much thermal energy the network can absorb before chains break.
Can silicone melt like other materials?
No. Silicone is a thermoset elastomer with permanently cross-linked molecular structure. Once cured, it cannot transition to a liquid phase. It degrades — hardens, cracks, eventually forms silica ash — but it does not melt.
What industries benefit most from silicone’s thermal properties?
Automotive, electronics, medical devices, aerospace, and food processing. The common requirement across all: a material that stays flexible and maintains sealing or insulating function across a temperature range wider than any organic rubber can cover.
How can you optimise silicone temperature resistance in manufacturing?
Select the right grade for the actual continuous operating temperature (not the peak). Specify post-curing for components that will see sustained service above 180°C. Use HTV or platinum-cured LSR over RTV for high-temperature applications. Validate with TGA and DSC testing to confirm the actual degradation onset of the specific formulation you’re using.
Fazit
Silicone rubber’s defining characteristic is the absence of a melting point, not the presence of one. The useful design parameters are: continuous service temperature (200–230°C for standard grades), short-term peak tolerance (250–300°C), and thermal degradation onset (~300–370°C). Confusing these three numbers is the most common material specification error in high-temperature applications.
For manufacturing applications involving LSR injection molding, the process parameters that govern long-term thermal performance — mold temperature, post-cure conditions, cross-link density, and vacuum level — are as important as the material grade selection itself.
At Fecision, we produce medical LSR components monthly in cleanroom with validated process controls at every stage. For engineering consultation on silicone grade selection and thermal performance requirements, contact our team for a DFM review.
